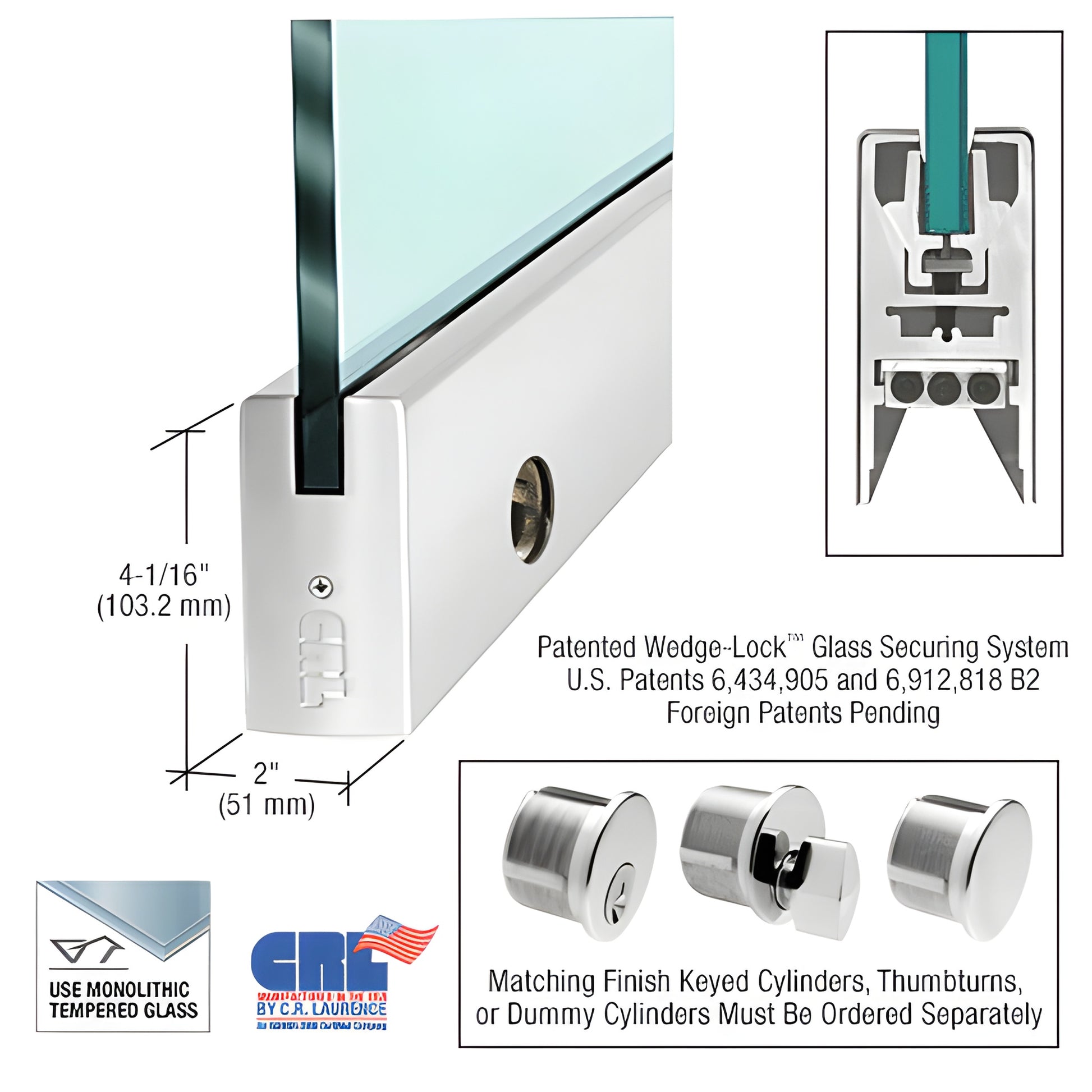

CRL Polished Stainless Steel 1/2" Glass 4" Door Rail w/ Lock 35.75"

• 35-3/4" (908 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (high-force, fast-install)
• Models to Fit 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4SPS12SL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to secure the glass from the bottom via two glass-retaining aluminum extrusions and a flat stainless steel bar. Tightening the socket head cap bolts pulls the bar down, forcing the angled extrusions together against the door rail wedge and our specially designed door retaining gasket to generate extremely high clamping force (more than 900 lbs. in the 9" Corner Rail). This design provides a secure, durable connection for full-length 35-3/4" (908 mm) rails and is ideal for commercial glass door installations where strength and longevity matter.

NOTE: Actual product height: 4-1/16" (103 mm).

Key benefits & differentiators:

• Fast installation — experienced installers can prepare a door in under 10 minutes; rails arrive fabricated and ready-to-install with End Caps installed.
• Adjustable Door Alignment System — built-in adjustable slide (standard top and bottom) allows ±1/8" (3.2 mm) adjustment toward/away from the jamb without removing the door.
• Rigid single-component housing — resists shifting or loss of adjustment over time (not made of two halves).
• Internal components remain in place during installation — no pre-removal required.
• Durable glass securing pads designed for longevity in extreme environments.
• Built-in Jamb Alignment Block on all rails; arms and pivots must be ordered separately to meet job requirements.

After installation, remove the End Cap to access three socket head cap bolts: the center bolt secures the adjustable slide, while the outer bolts provide the 1/8" (3.2 mm) in/out adjustment. The low-profile adjustable slide lets pivots with slotted grooves be positioned away from the American Standard Setback (2-3/4" / 69.8 mm) for out-of-square vertical
