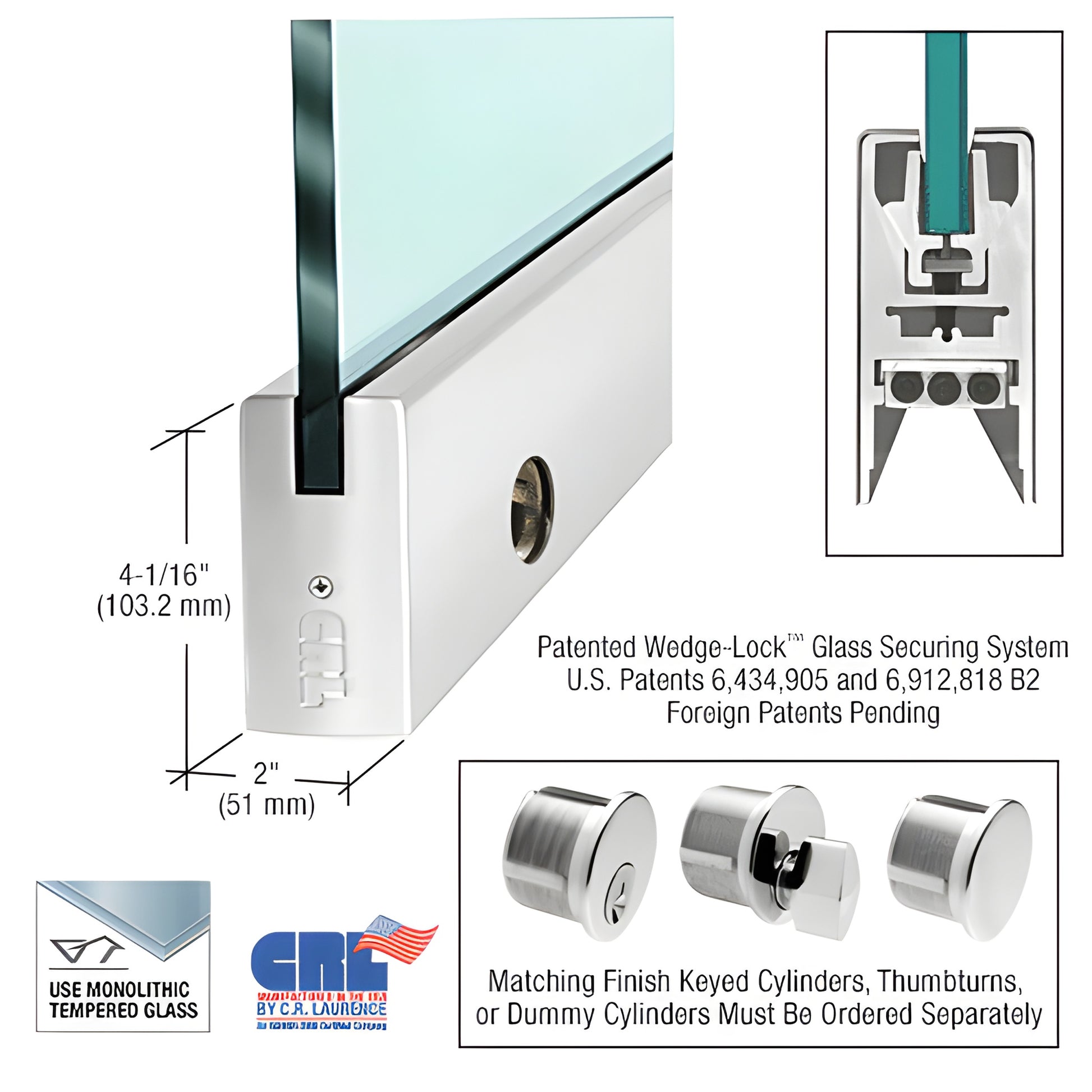

CRL Polished Stainless 3/8" Glass Door Rail w/ Lock 35-3/4"

• 35-3/4" (908 mm) door rail length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (exclusive CRL design)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks
• Matching sidelite rails available

SKU: DR4SPS38SL

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) to deliver a faster, stronger installation for commercial glass doors. The system secures glass by applying downward pressure through two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is drawn down with socket head cap bolts, angled extrusions engage an angled groove in the rail to create high holding force (more than 900 lbs. in the 9" corner rail), scaled across the full 35-3/4" (908 mm) rail.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system provides industry-leading installation speed—experienced installers can prepare a door for installation in under ten minutes. Rails ship completely fabricated and ready-to-install with end caps installed. After rail installation, attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable door alignment system allows ±1/8" (3.2 mm) adjustment toward or away from the jamb on both top and bottom rails without removing the door.

To adjust after installation, remove the end cap to access three socket head cap bolts: the center bolt locks the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile adjustable slide accommodates pivots with slotted grooves and can be fabricated for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid, single-component housing that resists shifting and loss of adjustment over time
• Internal components remain in place—no removal required before installation
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block (arms and pivots must be ordered separately)

Available finishes: several standard architectural
