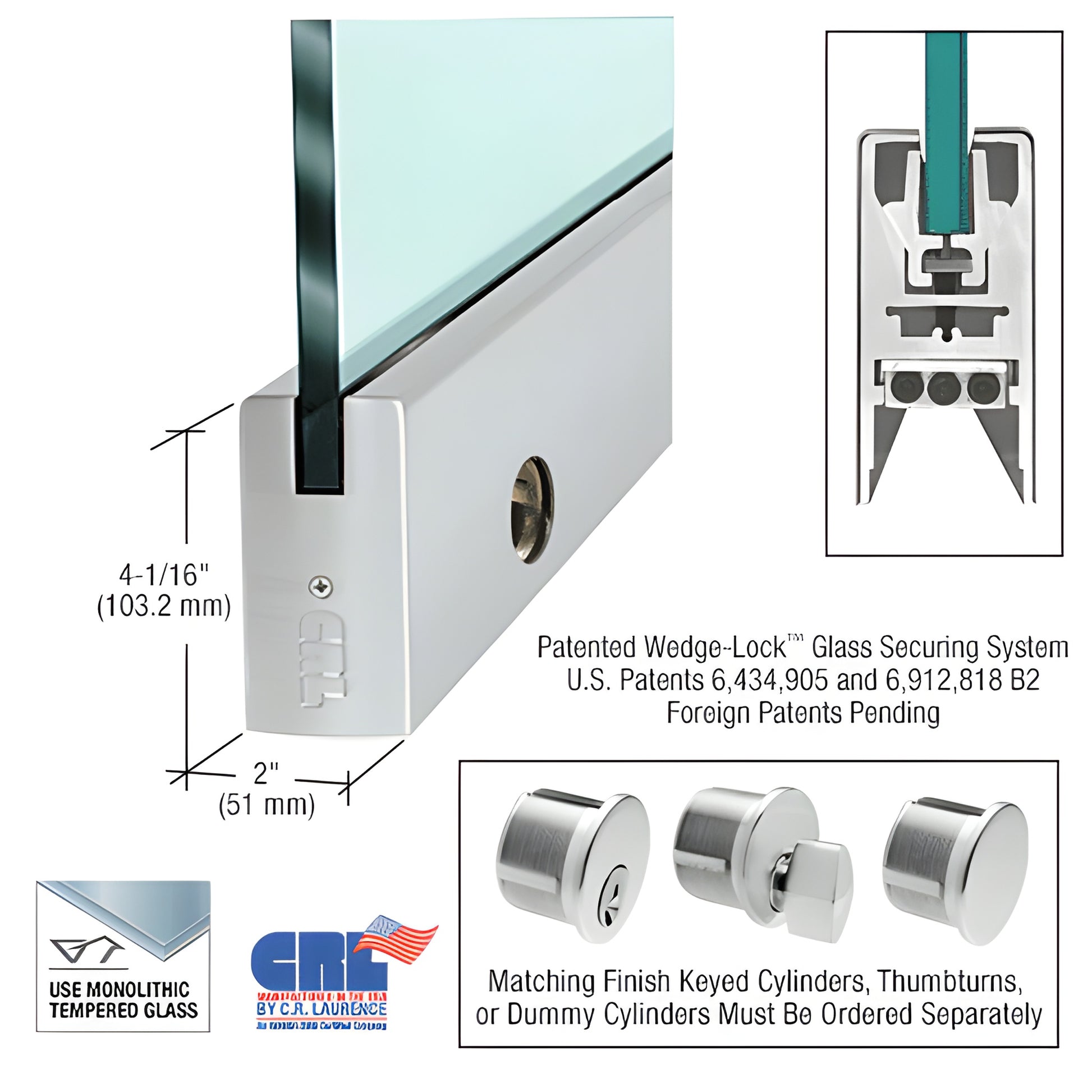

CRL Brushed Stainless 4" Sq. Door Rail w/ Lock, 3/8" Glass, 35-3/4"

• 35-3/4" (908 mm) length for 3/8" (10 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

SKU: DR4SBS38SL

Our CRL Wedge-Lock® Door Rail System features the exclusive, patented Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This innovative glass door rail applies downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts the angled extrusions engage the rail’s wedge groove to clamp the glass—creating very high clamping force (more than 900 lbs. in the 9" corner rail). The result is a secure, durable attachment for glass door systems and a reliable commercial storefront door rail solution.

Product height: 4-1/16" (103 mm)

Key differentiators

• Fast installation—experienced installers can prepare a door in under ten minutes; rails ship fabricated and ready-to-install with end caps installed
• Adjustable Door Alignment System standard on top and bottom rails—allows ±1/8" (3.2 mm) adjustment without removing the door
• Rigid single-component housing that resists shifting or falling out of adjustment over time
• Internal components remain in place during installation—no disassembly required
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block included (arms and pivots sold separately)

After installation, remove the end cap to access three socket head cap bolts: the center bolt locks the adjustable slide; the outer two bolts adjust the slide ±1/8" (3.2 mm). The low-profile slide allows pivot placement other than the American Standard setback, enabling fabrication for vertically out-of-square openings.

Ordering & compatibility

• Supplied with standard Kwik-Adjust™ Pivot Alignment System; closer arms and floor or overhead pivots must be ordered separately
• Models with locks ship with the lock mechanism installed; keyed cylinders or thumbturns ordered separately
• End caps included in stock rail lengths; specify total rail length (including end caps) for custom lengths

CRL Wedge-Lock® Door Rails are offered in several standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are available from CR
