CRL Z-Series Satin Chrome Glass Clamp Square Radius 1/4" & 5/16"

• For 1/4" and 5/16" (6 and 8 mm) monolithic tempered glass
• Use on mezzanines, partitions, railings and windbreaks
• Steel pin available for additional glass support
• Custom painted finishes available upon request

CRL Z-Series Square Type Radius Base Glass Clamp (SKU: Z606SC) — Durable glass clamp designed for 1/4" to 5/16" (6–8 mm) monolithic tempered glass. Constructed in zinc or stainless steel, the Z606SC is ideal for partitions, railings, windbreaks and other architectural glass railing projects where a radius base and 2" (51 mm) diameter round tubing are required.

Installation notes: For securing the clamp to thin-wall tubing (<1/8”), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole and install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with 34618 5/16" mandrel and nosepiece. NOTE: A 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

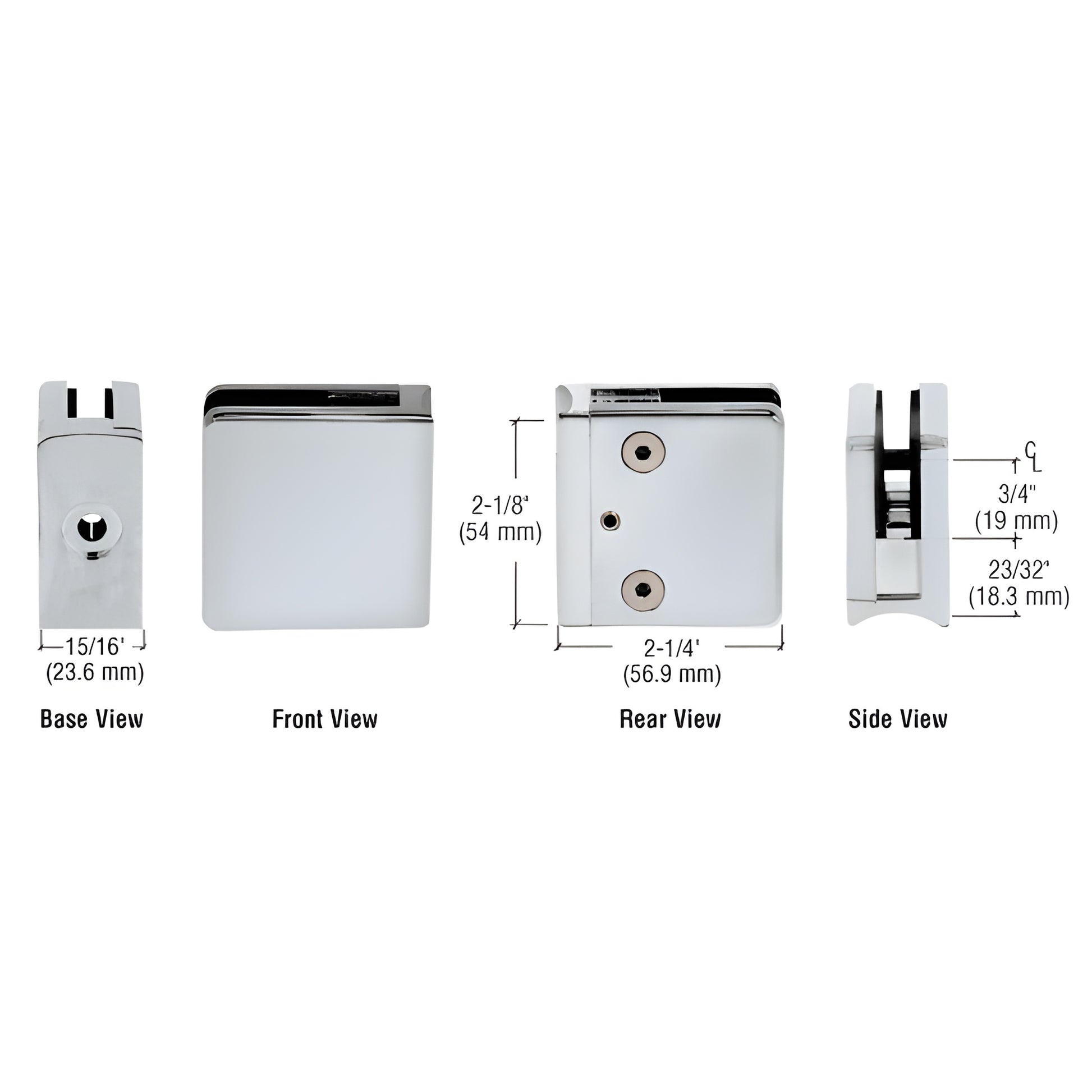

SPECIFICATIONS:

• Glass Thickness: 1/4" and 5/16" (6 and 8 mm)
• Base Design: Radius
• For Use With: 2" (51 mm) diameter round tubing only
• Material: Zinc or stainless steel (stainless or powder-painted zinc recommended for exterior durability)
• Glass Fabrication (pin hole sizes):
  • For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm) glass: 1/2" (12 mm) hole required when using steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) hole required when using steel pin
• Includes: Rubber gaskets and steel pin (optional) with grommet
• Replacement hardware: CRL ZCS5X15SS replacement screws & Z14SG replacement gasket

Product warning: For interior installations, CRL recommends pinning each glass panel when the bottom edge does not support the glass to prevent slippage. Rubber gaskets and steel pins are provided with
