CRL Z-Series Polished Brass Glass Clamp, Radius Base 1/4"-5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Use monolithic tempered glass
• Ideal for mezzanines, partitions, railings and windbreaks
• Steel pin available for additional glass support (included)
• Custom painted finishes available upon request

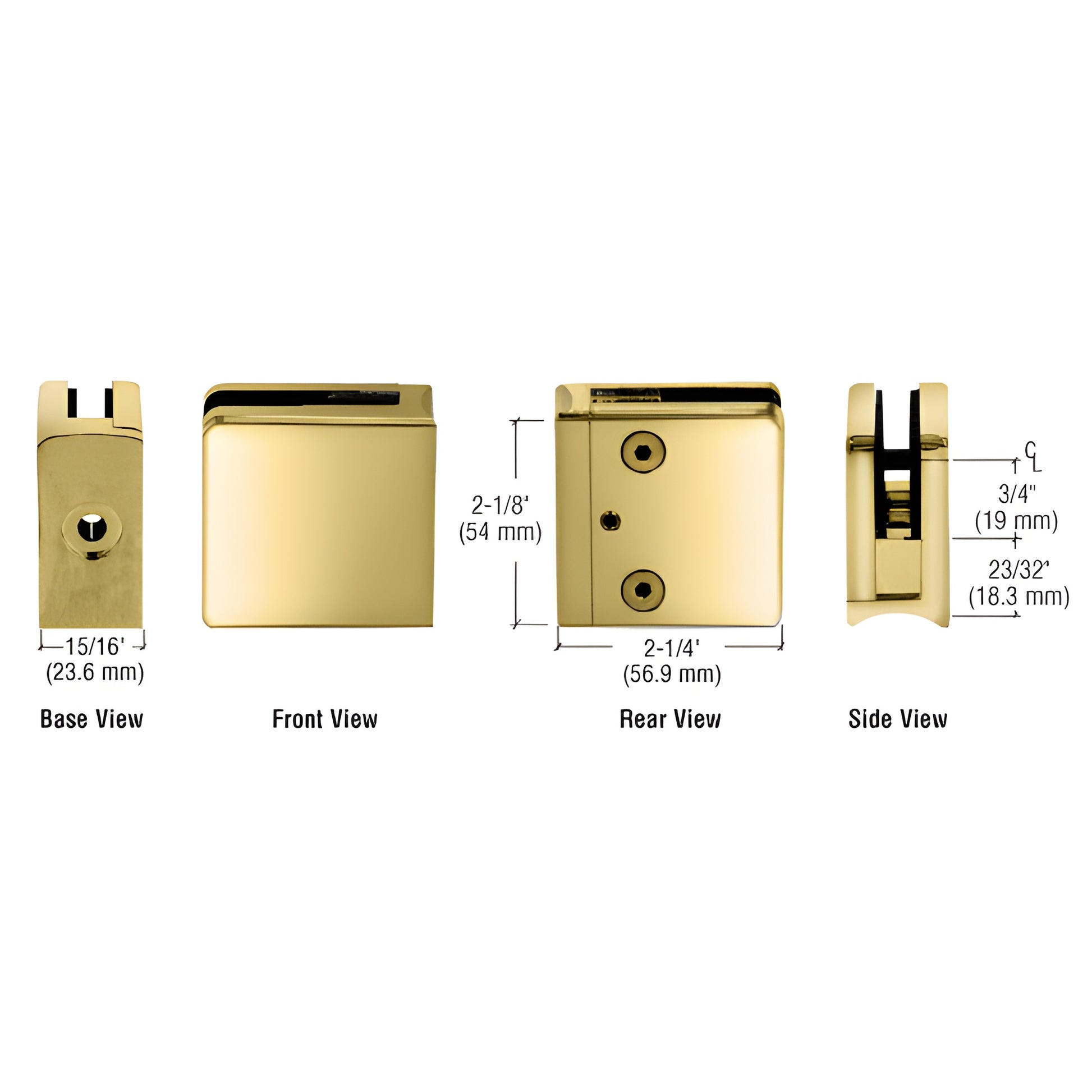

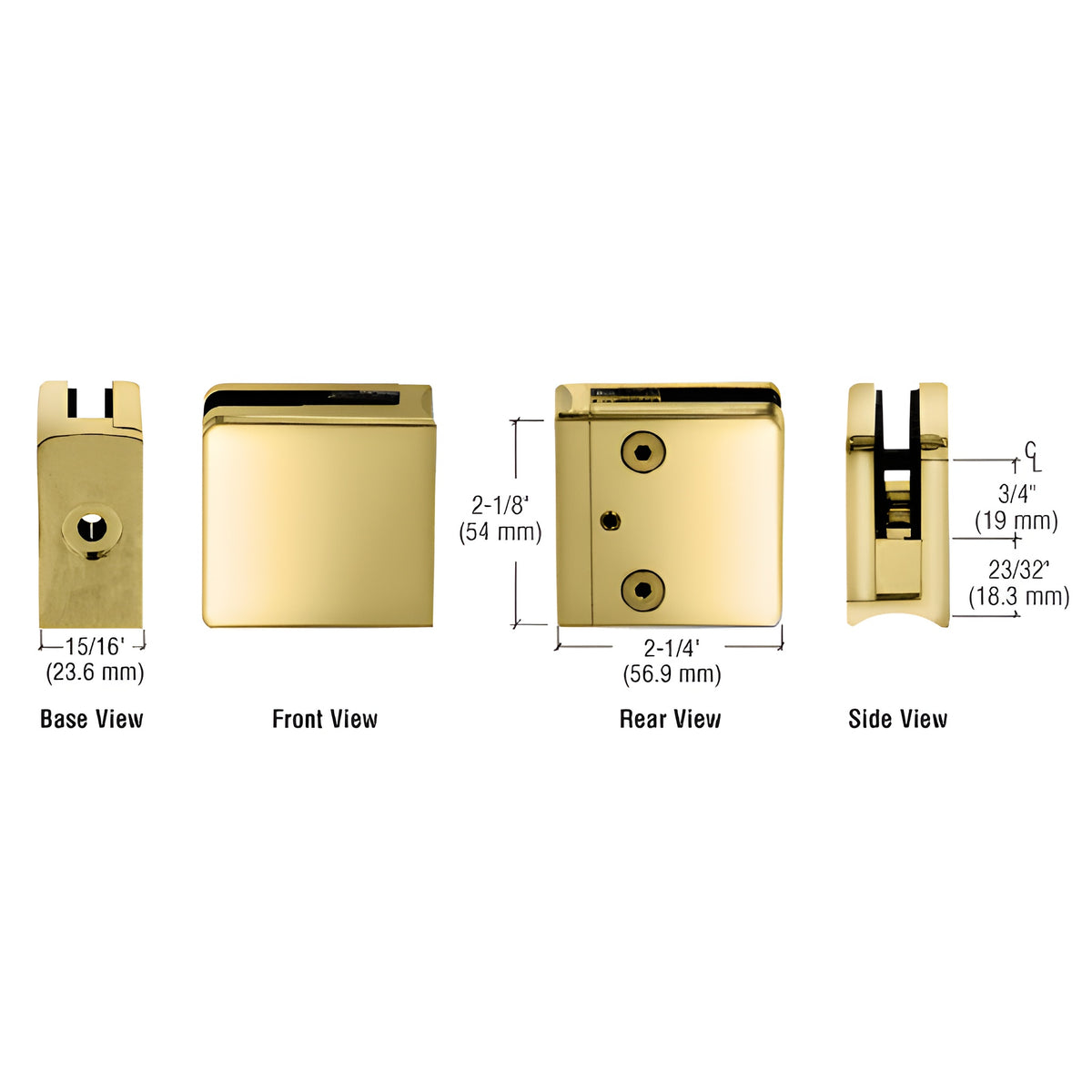

This CRL Z-Series Square Type Radius Base Glass Clamp (SKU Z606BR) fits 1/4" to 5/16" (6–8 mm) glass and mounts to 2" (51 mm) diameter round tubing. Constructed from zinc or stainless steel, these radius-base glass clamps are engineered for partitions, railings, windbreaks and architectural glass railing systems where a secure, low-profile clamp is required.

For securing the Z-clamp to thin-wall tubing (<1/8”), use CRL ZB0LT Socket Head Cap Bolt and ZRNUT Rivet-Nut. Drill a 17/32” (13.5 mm) hole and install the rivet-nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16” mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the steel pin for additional glass support.

SPECIFICATIONS

• Glass Thicknesses: 1/4" and 5/16" (6 and 8 mm)
• Base Design: Radius
• For Use With: 2" (51 mm) diameter round tubing only
• Material: Zinc or stainless steel (stainless or powder-painted zinc recommended for exterior durability)
• Glass Fabrication:
  • For 1/4" (6 mm), 5/16" (8 mm), and 3/8" (10 mm) glass: 1/2" (12 mm) diameter hole if using provided steel pin
  • For 1/2" (12 mm) glass: 9/16" (14 mm) diameter hole if using provided steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement Hardware: CRL ZCS5X5BR (replacement screws) & Z14SG (replacement gasket)

Product Warning:

For interior installations, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
