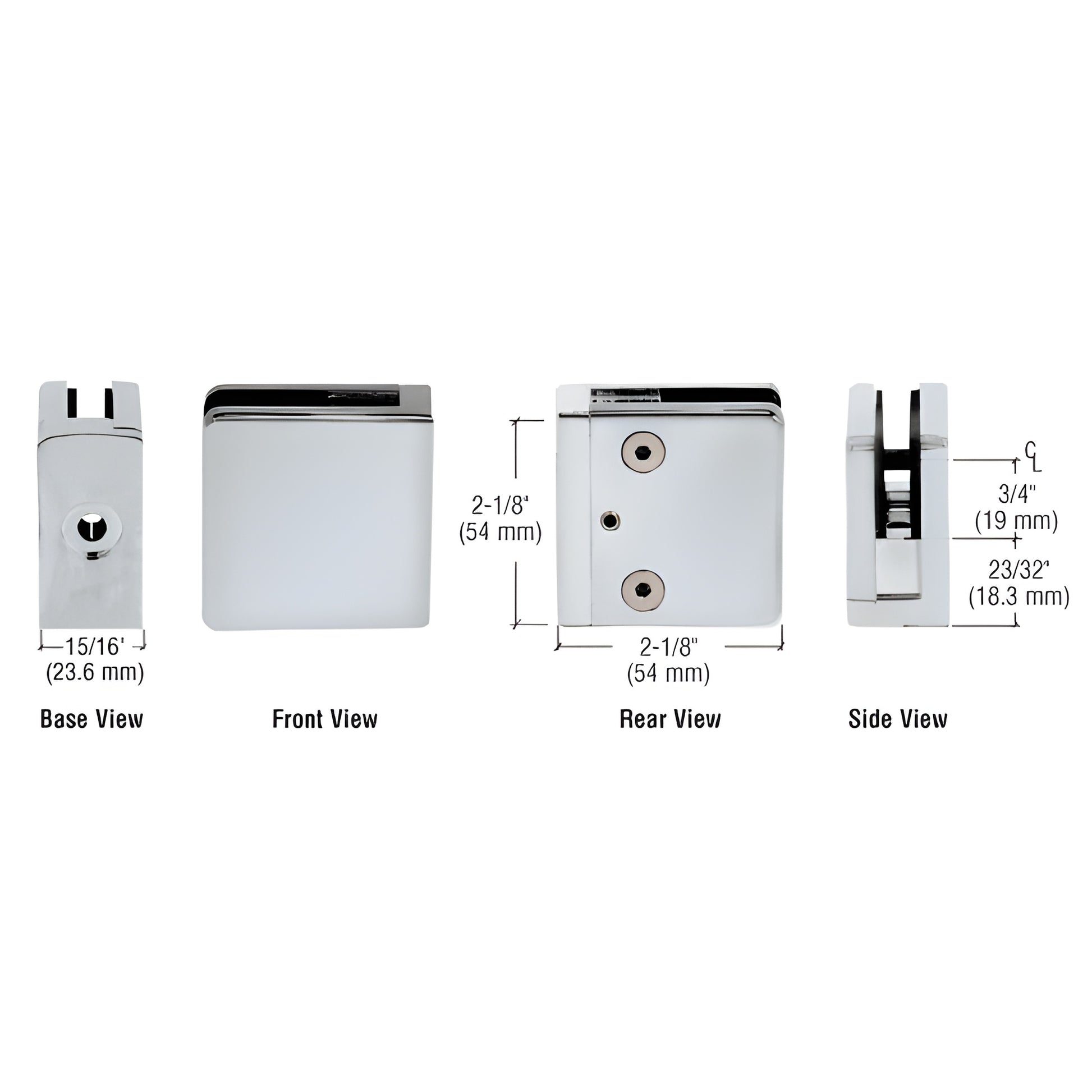

CRL Satin Chrome Z-Series Flat-Base Square Glass Clamp 1/4 & 5/16 in

• For 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets: Cat. No. Z14SG
• Designed for mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin available for additional glass support (included)
• Tested and engineered to meet and exceed code standards
• Custom painted finishes available upon request

CRL Z-Series Square Type Flat Base Glass Clamp (SKU: Z806SC) is engineered for 1/4" to 5/16" (6–8 mm) glass and is available in zinc or stainless steel. This square, flat-base Z-clamp is ideal for glass railings, partitions, windbreaks and other architectural glazing projects requiring secure edge clamping.

For thin-wall tubing (less than 1/8") use CRL’s ZB0LT Socket Head Cap Bolt with ZRNUT Rivet-Nut. Drill a 17/32" (13.5 mm) hole and install the rivet‑nut using the 34604 Heavy-Duty Thread Insert tool with the 34618 5/16" mandrel and nosepiece.

NOTE: A 1/2" (12 mm) hole is required if using the steel pin for additional glass support.

SPECIFICATIONS:

• Glass thickness: 1/4" and 5/16" (6 and 8 mm)
• Base design: Flat square base for mounting to square tubing or other flat surfaces
• Material: Zinc or stainless steel; stainless or powder-painted zinc recommended for exterior durability
• Glass fabrication (pin hole):
  • For 1/4" (6 mm), 5/16" (8 mm), 3/8" (10 mm): 1/2" (12 mm) diameter hole required if using steel pin
  • For 1/2" (12 mm): 9/16" (14 mm) diameter hole required if using steel pin
• Includes: Rubber gaskets and steel pin with grommet
• Replacement hardware: CRL ZCS5X15SS replacement screws

Product Warning:
For interior installations, CRL recommends pinning each glass panel when the glass is not supported from the bottom edge to prevent panel slippage. Rubber gaskets and steel pins are provided with each clamp.
