CRL White 3/4" x 1/4" Roll-Formed Screen Frame Channel 146"

• 0.017" (0.43 mm) Wall Thickness
• Several Finishes Available

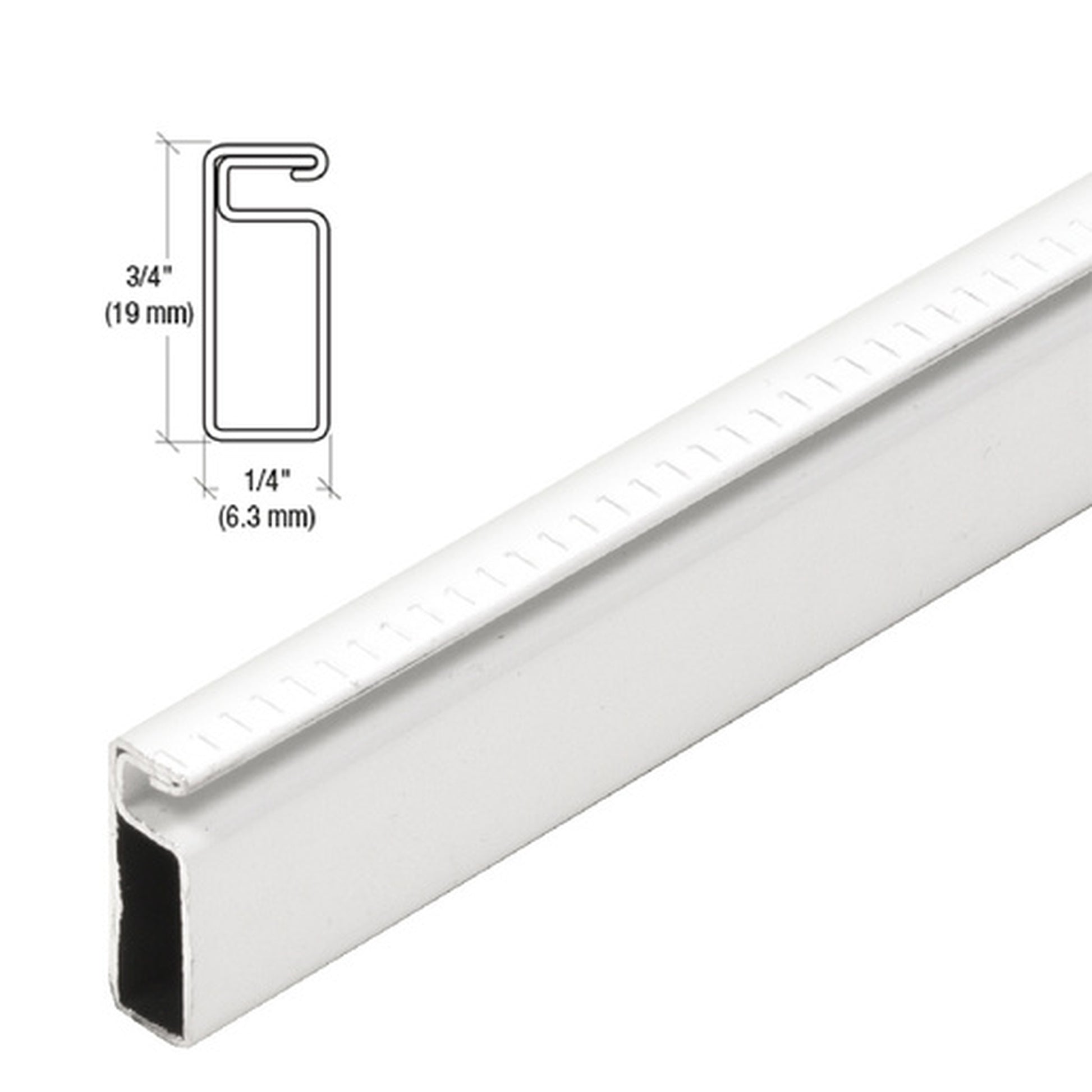

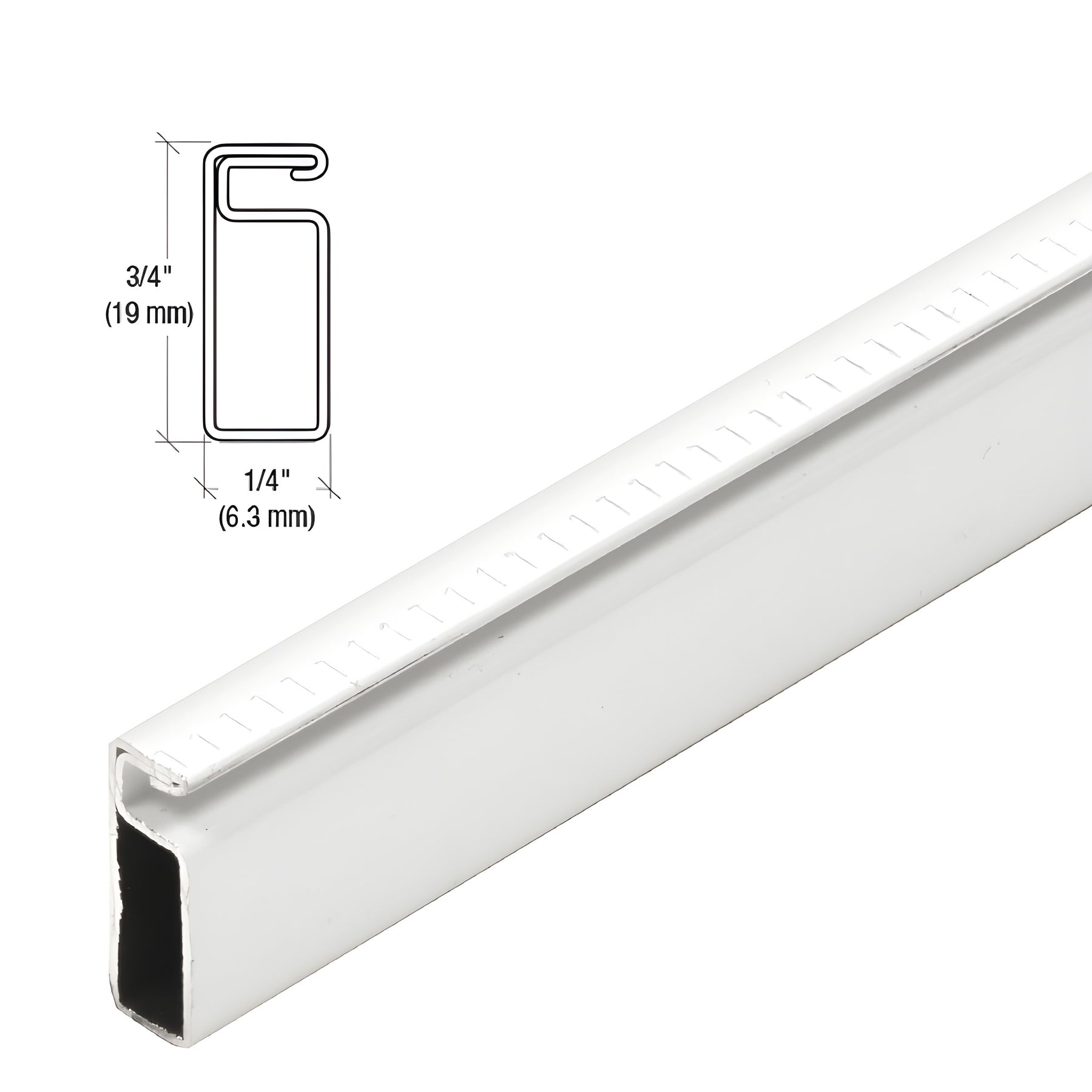

CRL 3/4" x 1/4" (19.05 x 6.35 mm) Screen Frame (SKU: WSF3414W) — roll-formed aluminum frame with a .017" (.43 mm) wall thickness designed for aluminum and fiberglass screening applications. The frame features a knurled lip and is cambered (slightly bowed) to retain screen tension after installation. Accepts CRL .140" spline for secure screening. Compatible corner options include WSC104 aluminum mitered corners, WSPC104 plastic mitered corners, or SWSC14 series square-cut plastic corners for square-cut frames.

SPECIFICATIONS:
Material: Roll Formed Aluminum
Wall Thickness: .017" (.43 mm)
Uses Spline Size: .140" (3.56 mm)
Uses Corners: WSC104 for Mitered Corners; SWSC14 for Square Cut Corners

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Because of tolerances in coil stock and stretch in the roll-forming process, actual thickness can vary by ±.002" (.05 mm). This tolerance is standard in the industry.

Durable, cambered aluminum screen frame ideal for residential and light-commercial screen repair and fabrication—order SKU WSF3414W now to ensure secure, long-lasting screen tension.
