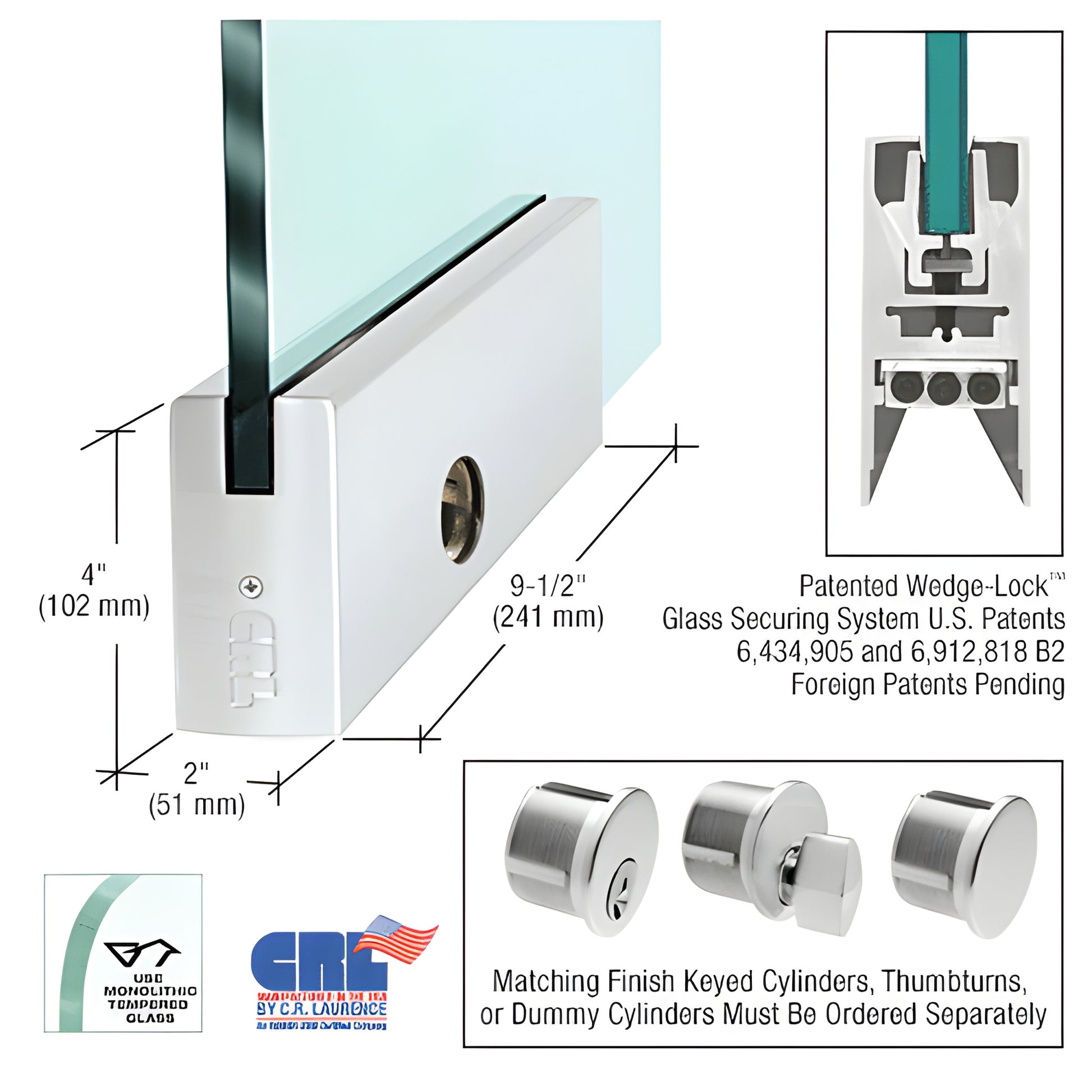

Satin Anodized DRS 4" Square Glass Door Rail Lock, 9.5", fits 1/2" Glass

• 9-1/2" (203 mm) length for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® glass securing system (U.S., Canadian and European patents)
• Models to accept 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with or without locks (keyed cylinders or thumbturns ordered separately)
• Matching sidelite rails available

Our innovative CRL Wedge-Lock® Door Rail System (SKU: DR4SSA12PL) features the exclusive Wedge-Lock® Securing System. This patented door rail for glass doors secures glass by applying downward pressure via two glass-retaining aluminum extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges draw the extrusions together against the glass and gasket, producing extremely high clamping force (over 900 lbs. in the 9" corner rail) for reliable, long-lasting attachment.

Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers the fastest installation time among door rails for glass entrances—experienced installers can prepare a door in under ten minutes. CRL rails ship completely fabricated and ready-to-install with end caps installed. After installation, attach the pivot or door arm (not included) to the adjustable door alignment slide already assembled in the rail.

The Adjustable Door Alignment System (standard on both top and bottom rails) allows 1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door. Remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide in or out. The low-profile slide and pivot slots let the pivots be located other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Other advantages of Wedge-Lock® door rails:

• Accepts 3/8" to 3/4" (10–19 mm) glass
• Rigid single-component housing that resists shifting and long-term adjustment loss
• Internal components remain installed during shipping and installation
• Durable glass-securing pads designed for extreme environments
• Built-in jamb alignment block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are available in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware
