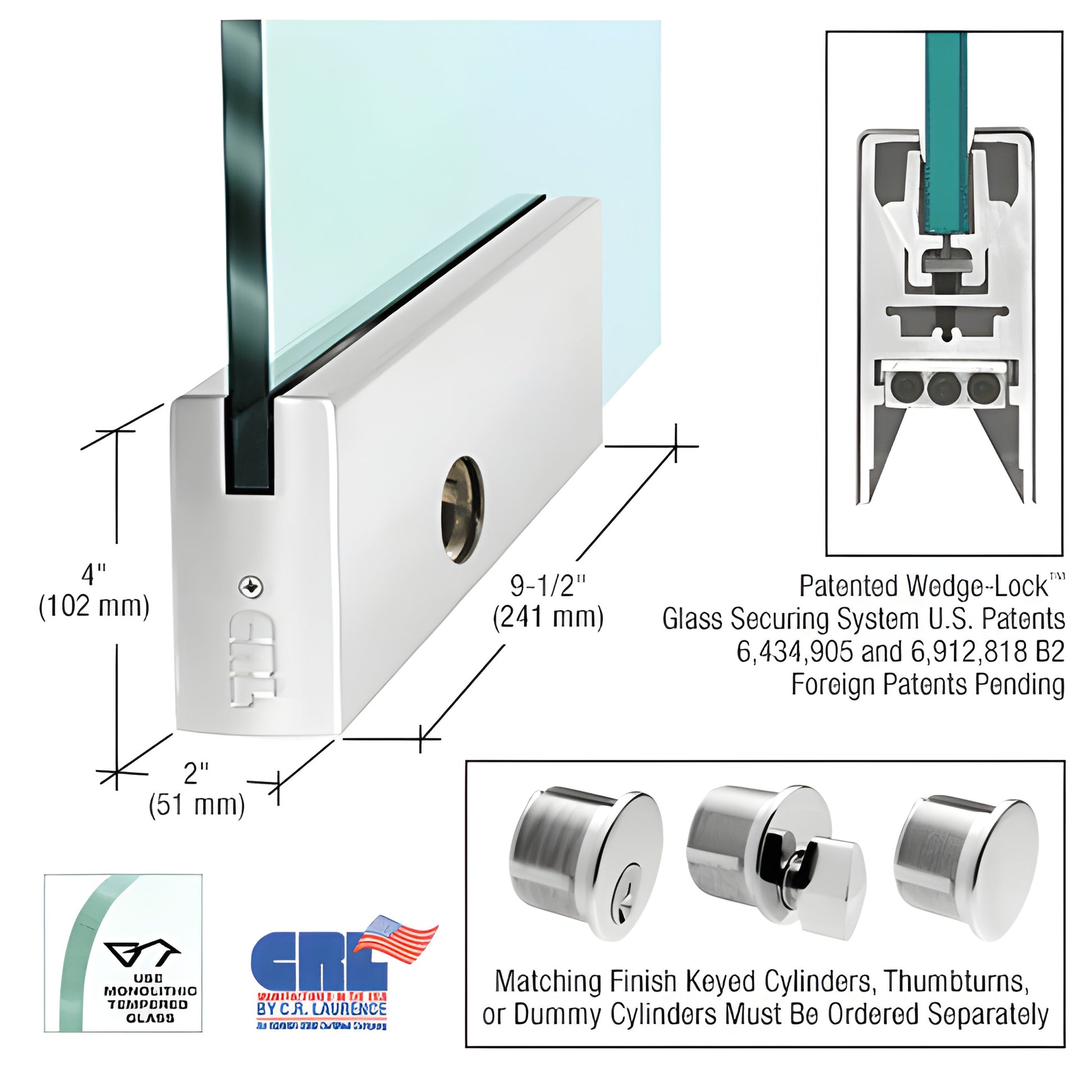

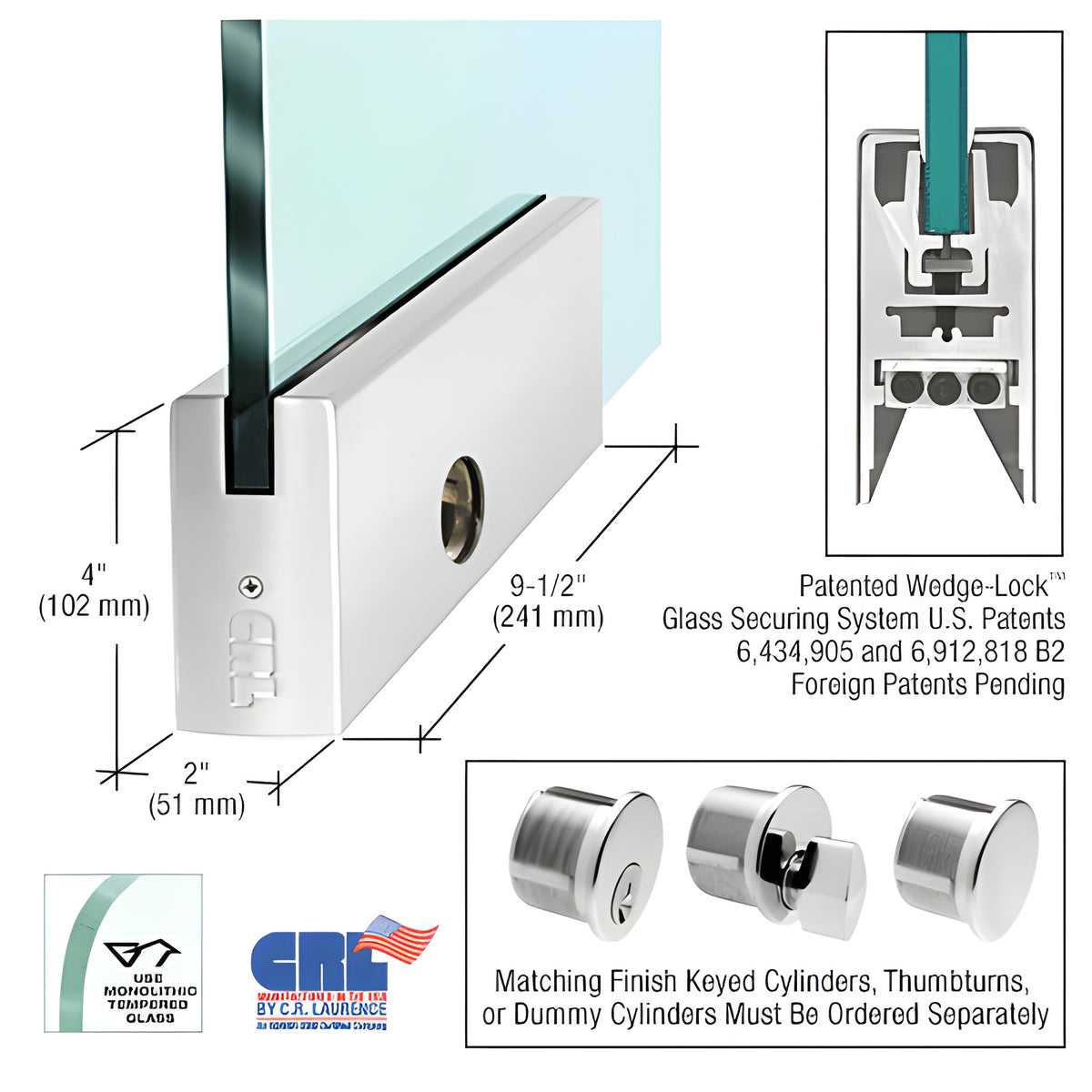

DRS Polished Stainless 4" Sq Door Rail w/ Lock for 1/2" Glass 9.5in

• 9-1/2" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System (U.S., Canadian & European patents)
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes — Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4SPS12PL

Our innovative glass entrance product, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System to create strong, reliable clamping pressure on the glass. Two glass-retaining aluminum extrusions and a flat stainless steel bar pull together in an angled groove as socket head cap bolts are tightened, producing very high retention force (more than 900 lbs. in the 9" Corner Rail). This patented mechanism secures 1/2" and other glass thicknesses without separate internal removal during installation.

Actual Product Height: 4-1/16" (103 mm)

Key differentiators:

• Patented Wedge-Lock® design for exceptional glass retention and durability
• Fastest installation time in its class — experienced installers can prepare a door in under ten minutes
• Adjustable Door Alignment System (standard top & bottom) allows 1/8" (3.2 mm) in/out adjustment without removing the door
• Rigid single-component housing that resists shifting or loss of adjustment over time
• Glass securing pads designed for longevity in extreme environments
• Includes End Caps and built-in Jamb Alignment Block; arms, pivots, keyed cylinders and thumbturns ordered separately
• Kwik-Adjust™ Pivot Alignment System included; closer arms and floor/overhead pivots must be ordered separately

The rails come completely fabricated and ready-to-install. After mounting the rail, attach the door arm or pivot (not included) to the adjustable alignment slide already assembled in the rail. To fine-tune after installation, remove the end cap to access three socket head cap bolts — the center secures the slide, the outer two allow the 1/8" (3.2 mm) adjustment.

Models accept 3/8" to 3/4" (10–19 mm) glass. Available in several standard architectural finishes; custom finishes and widths can be quoted. Rail specifications, templates and hardware packages are available from CRL Technical Sales via e-mail.

Ordering Information:

• All door rails supplied with standard Kwik-Adjust
