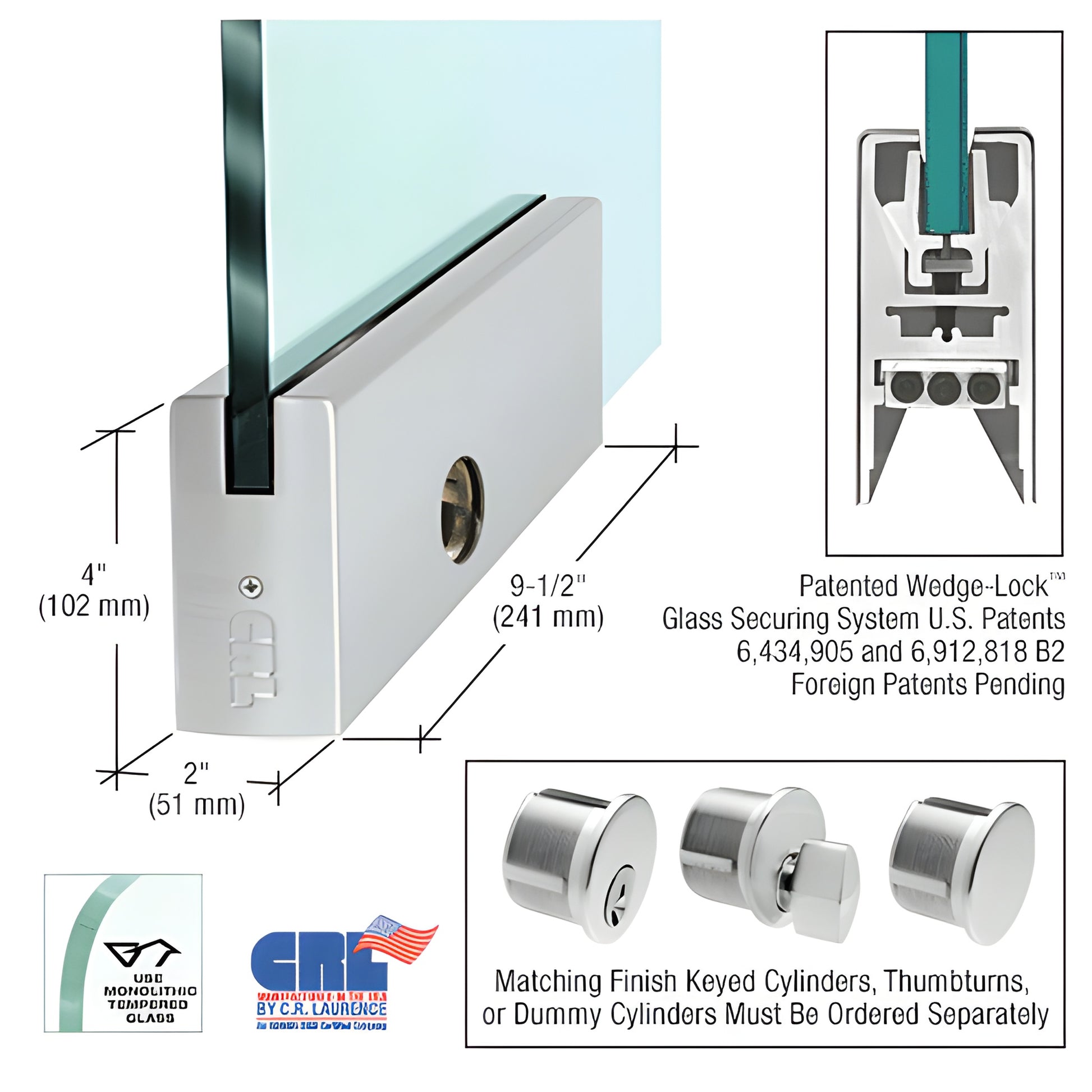

Brushed Stainless 4-in Square DRS Door Rail Lock for 1/2-in Glass

• 9-1/2" (203 mm) Length for 1/2" (12 mm) Glass
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4SBS12PL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, is a tempered glass door rail engineered for security and fast installation. The exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1) secures glass by applying downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar. As the bar is tightened with socket head cap bolts, angled wedges pull the extrusions together and compress the door retaining gasket, generating exceptional holding force (more than 900 lbs. in the 9" Corner Rail).

NOTE: Actual Product Height: 4-1/16" (103 mm)

Key benefits and differentiators:

• Fast installation — experienced installers can prepare a door in less than ten minutes
• Factory-fabricated, ready-to-install rails with End Caps installed
• Built-in Adjustable Door Alignment System (top and bottom) allows ±1/8" (3.2 mm) adjustment toward/away from jamb without removing the door
• Rigid single-component housing prevents shift or loss of adjustment over time
• Internal components remain installed during fitting—no disassembly required for installation
• Durable glass-securing pads designed for longevity in extreme environments

Installation details: after rail installation attach door arm or pivot (not included) to the adjustable alignment slide already assembled in the rail. To fine-tune adjustment, remove the End Cap to access three socket head cap bolts—the center secures the slide, the outer bolts adjust +/-1/8" (3.2 mm). Low-profile slide and slotted pivots enable fabrication for vertically out-of-square openings.

Ordering information:

• All Door Rails include the Kwik-Adjust™ Pivot Alignment System; closer arms and floor/overhead pivots ordered separately
• Models with locks include the lock mechanism; keyed cylinders or thumbturns ordered separately
• End Caps included in stock lengths; specify complete rail length (including End Caps) for custom lengths
