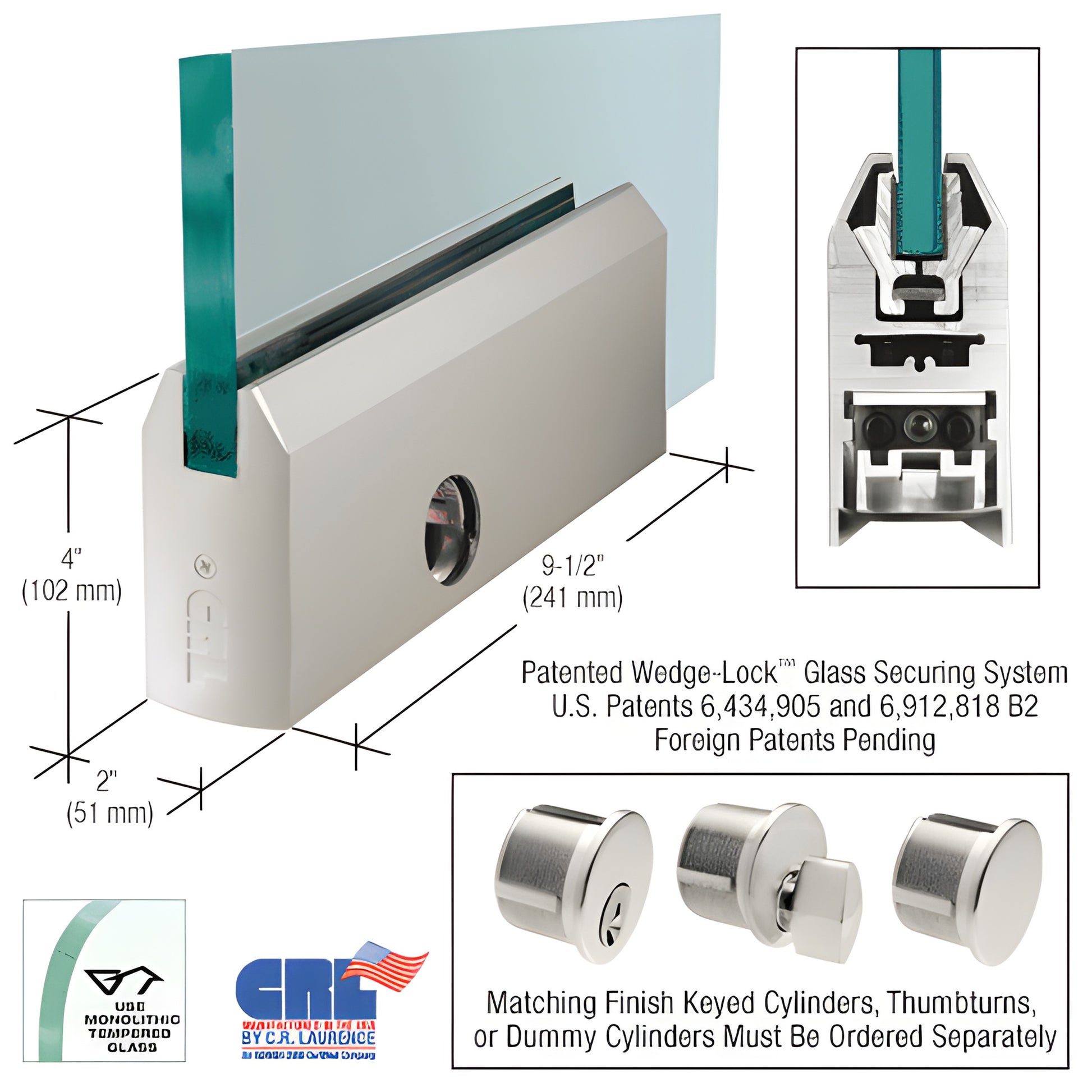

Satin Anodized 4in Tapered Door Rail w/ Lock for 1/2in Glass 9.5in

• 9-1/2" (241 mm) Patch for 1/2" Glass (12 mm)
• Use Monolithic Tempered Glass
• Patented Wedge-Lock® Glass Securing System
• Models to Fit from 3/8" to 3/4" (10 to 19 mm) Glass
• Available in Several Stock Architectural Finishes - Custom Finishes Available
• Available With and Without Locks
• Matching Sidelite Rails Available

SKU: DR4TSA12PL

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive Wedge-Lock® Securing System (U.S. Patents 6,434,905 and 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This patented wedge action applies downward pressure via two aluminum glass-retaining extrusions and a flat stainless steel bar, creating exceptional gripping force (more than 900 lbs. in the 9" corner rail). The result is a secure patch fitting for 1/2" tempered glass and robust performance across full-length door rails.

NOTE: Actual Product Height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers the fastest installation time of any door rail: experienced installers can prepare a door in under ten minutes. CRL door rails ship fully fabricated and ready-to-install with End Caps installed. After mounting the rail, simply attach the door arm or pivot (not included) to the pre-assembled adjustable door alignment slide.

The built-in Adjustable Door Alignment System allows ±1/8" (3.2 mm) adjustment toward or away from the jamb without removing the door—standard on both top and bottom rails. Remove the End Cap to access three socket head cap bolts: the center bolt secures the slide, and the two outer bolts adjust the slide in or out. The low-profile slide and slotted pivot grooves accommodate non-standard setbacks and vertically out-of-square openings.

Other advantages:

• Accepts 3/8" to 3/4" (10–19 mm) glass for versatile patch fitting applications
• Rigid one-piece housing resists shifting and maintains long-term adjustment
• Internal components stay assembled—no removal required before installation
• Durable glass-securing pads designed for extreme environments
• Built-in Jamb Alignment Block (arms and pivots ordered separately)

CRL Wedge-Lock® Door Rails are offered in several standard architectural finishes and can be quoted in custom finishes and widths. Rail specifications, templates, and hardware packages are available from CRL Technical Sales via e-mail.
