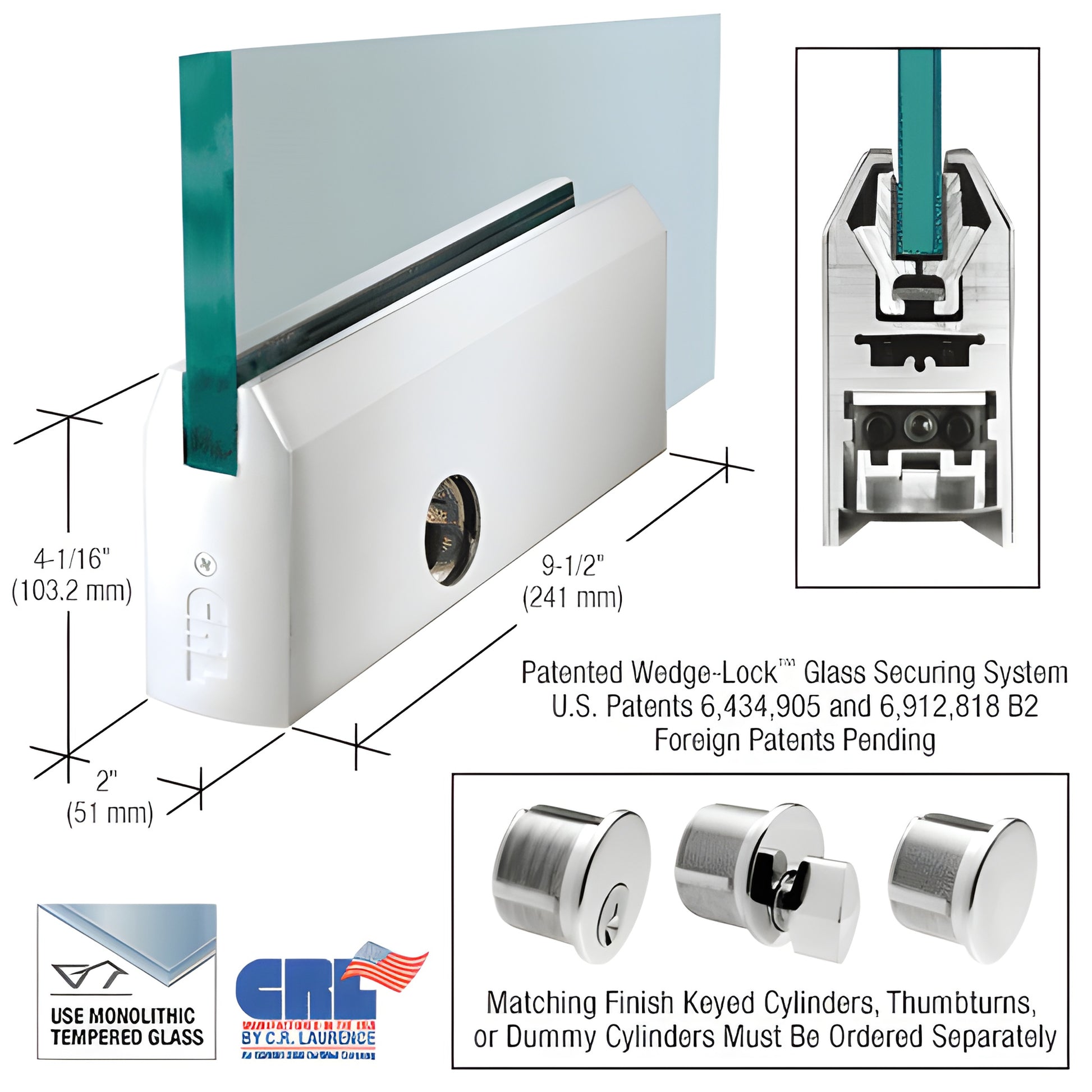

Polished SS 4in Tapered DRS Glass Door Rail w/ Lock for 1/2in

• SKU: DR4TPS12PL
• 9-1/2" (241 mm) patch for 1/2" (12 mm) glass
• Use monolithic tempered glass
• Patented Wedge-Lock® Glass Securing System (securely grips glass from the bottom)
• Models to fit 3/8" to 3/4" (10 to 19 mm) glass
• Available in several stock architectural finishes; custom finishes available
• Available with and without locks
• Matching sidelite rails available

Our innovative glass entrance solution, the CRL Wedge-Lock® Door Rail System, uses the exclusive CRL Wedge-Lock® Securing System (U.S. Patents 6,434,905 & 6,912,818 B2; Canadian Patent 2,419,706; European Patent EP 1 404 939 B1). This wedge-driven system applies downward pressure via two aluminum glass-retaining extrusions and a stainless steel bar, pulling the angled extrusions together to clamp the glass. The result: extremely high holding force (over 900 lbs. in the 9" corner rail) and reliable, long-lasting performance for frameless and storefront glass doors.

NOTE: Actual product height: 4-1/16" (103 mm)

The Wedge-Lock® system delivers fast installations—experienced installers can prepare a door in under ten minutes. Rails ship fully fabricated and ready-to-install with end caps installed. After mounting the rail, simply attach the door arm or pivot (not included) to the adjustable door alignment slide already assembled in the rail. The adjustable slide permits 1/8" (3.2 mm) in/out adjustment without removing the door, standard on both top and bottom rails.

To fine-tune the alignment after installation, remove the end cap to access three socket head cap bolts: the center bolt secures the slide; the two outer bolts adjust the slide 1/8" (3.2 mm) in or out. The low-profile slide allows pivot placement other than the American Standard setback (2-3/4" / 69.8 mm), enabling fabrication for vertically out-of-square openings.

Why choose Wedge-Lock® Door Rails:

• Accepts 3/8"–3/4" (10–19 mm) glass for versatile frameless door applications
• Rigid single-component housing that resists shifting or loss of adjustment over time
• No need to remove internal components before installation—faster, cleaner installs
• Durable glass securing pads designed for longevity in extreme environments
• Built-in jamb alignment block; arms and pivots ordered separately

CRL Wedge-Lock® Door Rails are available in standard finishes and can be quoted in custom finishes and widths. Rail specifications, templates and hardware packages are
