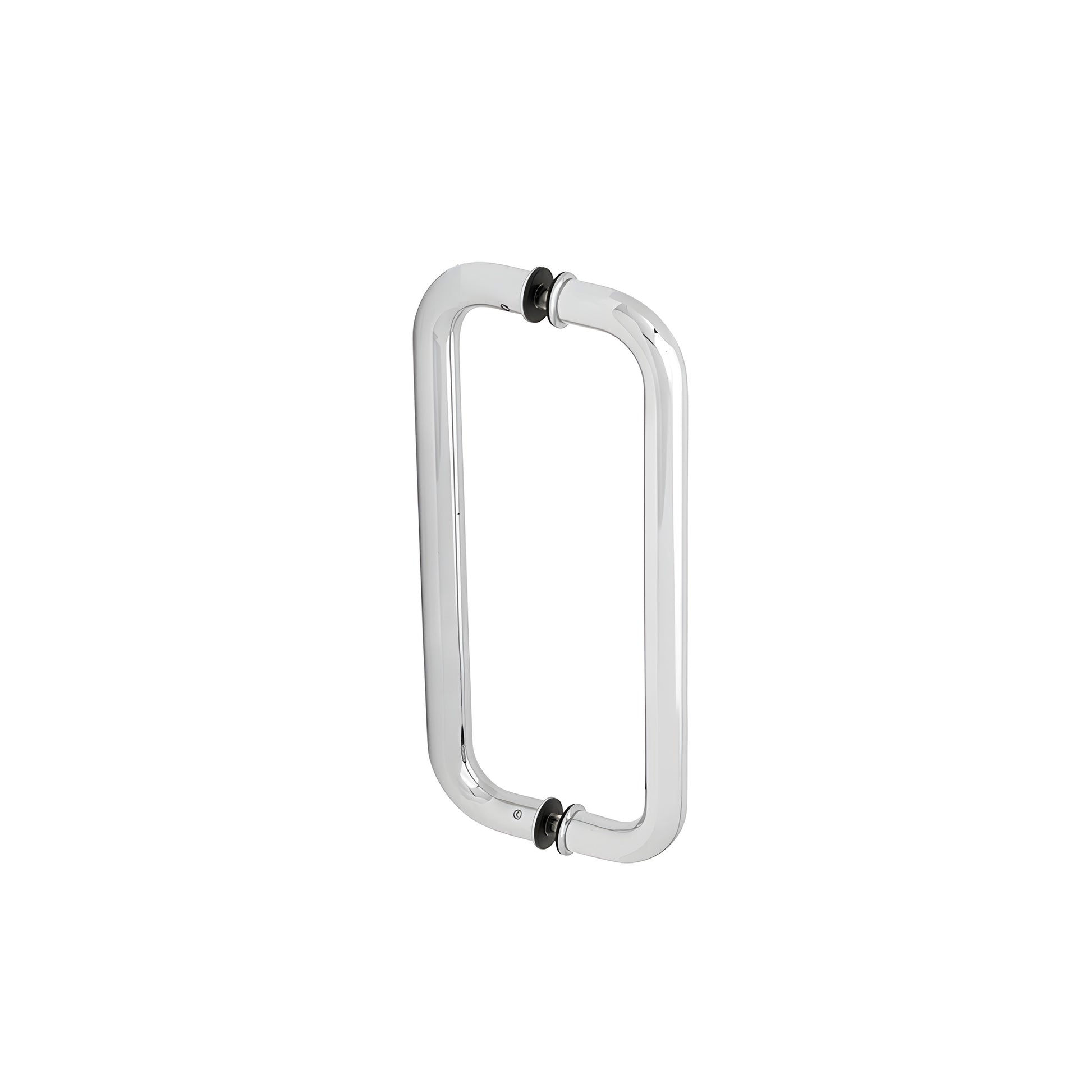

CRL 10 in Polished Stainless Steel Back-to-Back Glass Door Pull
CRL 10 in Polished Stainless Steel Back-to-Back Glass Door Pull
Regular price
$105.12 CAD
Regular price
Sale price
$105.12 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM10X10PS
Shipping Weight: 12.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 12.48 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25 mm)
Finish/Color
Polished Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes — multiple finish options for glass door hardware
- For use with 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
- Complete with matching finish metal washers and through-bolts for secure mounting
- Designed for monolithic tempered glass; requires two 5/8" (16 mm) diameter holes
This CRL Glass Mounted Standard Pull Handle is available in three lengths and multiple architectural finishes for glass doors and storefronts.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) monolithic tempered glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel on CD24X24BS125 model only.
Projection: 3" (76 mm) from face of glass to outside of handle — ideal for commercial glass door pulls
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes

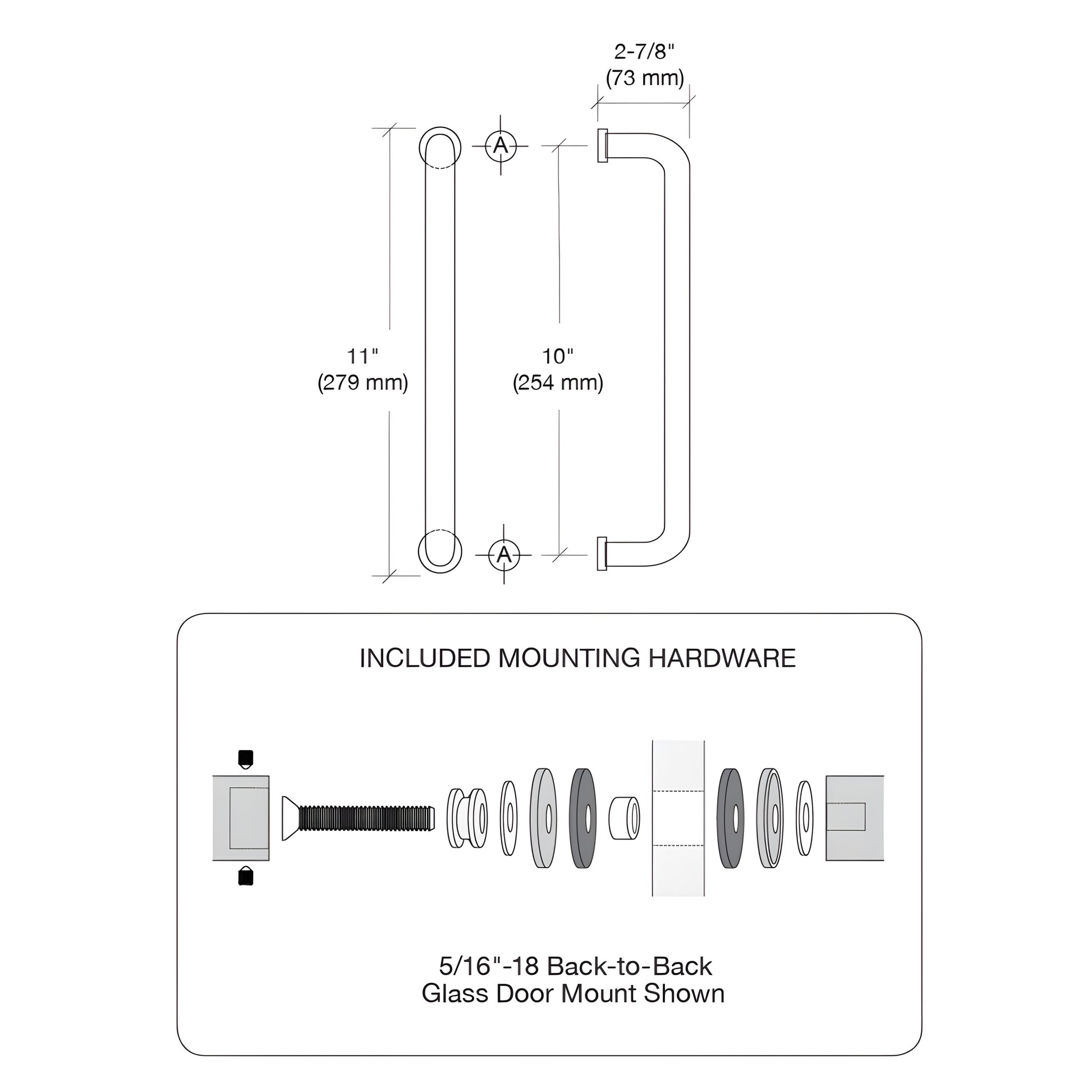

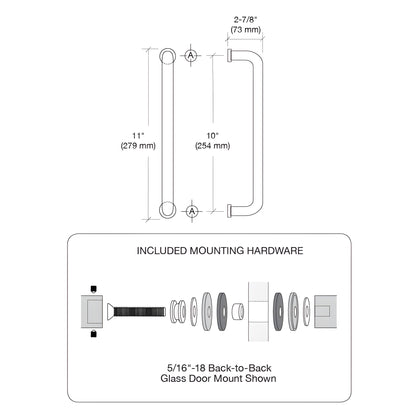

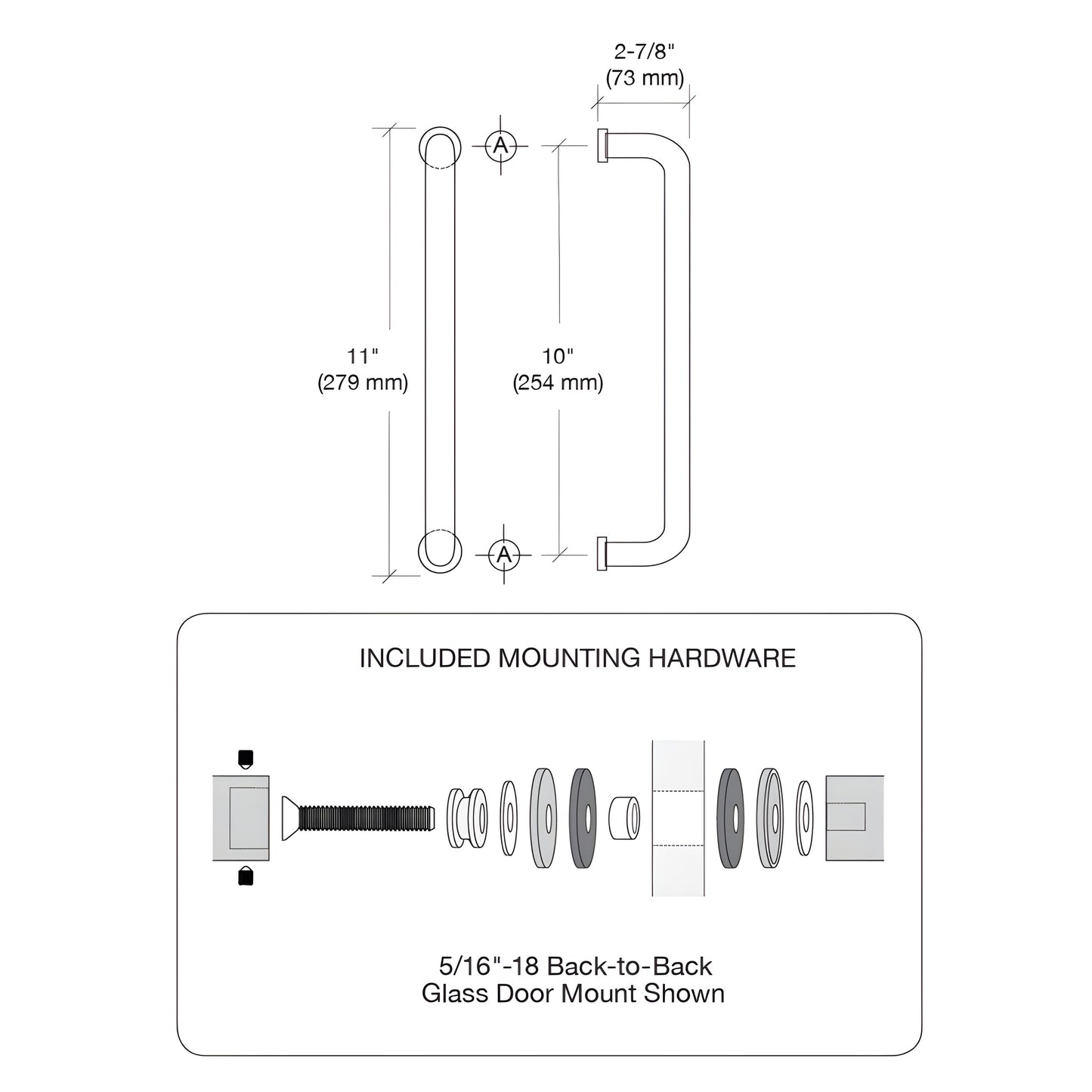

INCLUDES:
2 each: Through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Stainless steel is corrosion resistant but not entirely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
SKU: CM10X10PS
Shop this commercial glass door pull handle with matching hardware today — add to cart or contact us for finish availability and lead times.
