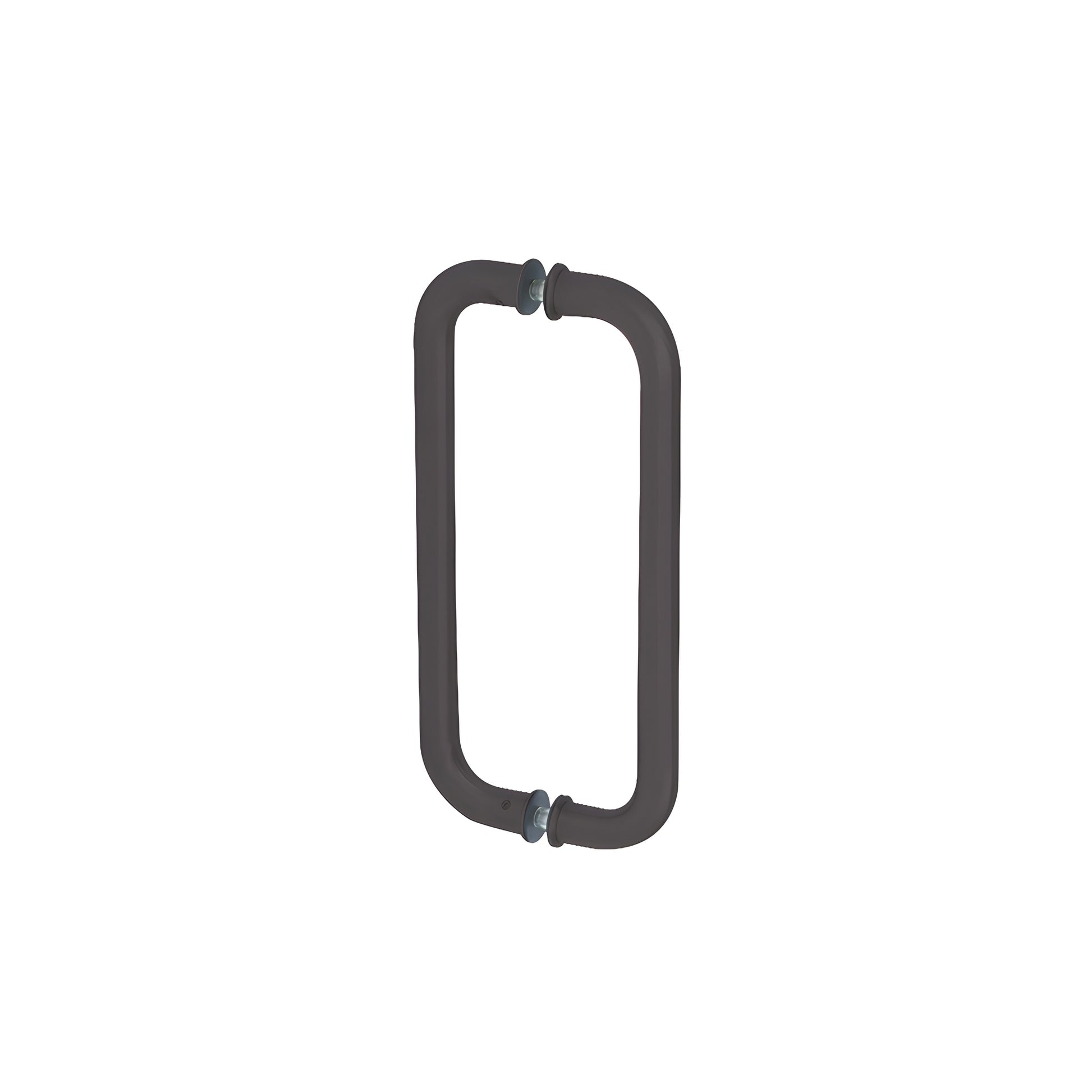

CRL Dark Bronze 10" Back-to-Back Glass Door Pull Handle
CRL Dark Bronze 10" Back-to-Back Glass Door Pull Handle
Regular price
$138.87 CAD
Regular price
Sale price
$138.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM10X10DU
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.4 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25.4 mm)
Finish/Color
Black Bronze Anodized
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes for consistent commercial and residential design
- Fits 3/8" to 3/4" (10 to 19 mm) glass — ideal for glass doors and storefronts
- Includes matching finish metal washers and through‑bolts for secure glass mounting
- Designed for monolithic tempered glass
CRL Glass Mounted Standard Pull Handle — SKU: CM10X10DU. Available in multiple lengths and a range of architectural finishes for glass doors and decorative glass applications.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes
INCLUDES:
2 each: through‑bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Shop this glass door pull handle in architectural finishes today — contact us to order or for custom finish availability.
