• Matte black back-to-back glass pull handle, 10" center-to-center, 1" diameter (SKU CM10X10MBL)
  • Matte black back-to-back glass pull handle, 10" center-to-center, 1" diameter (SKU CM10X10MBL)
1 2

CRL

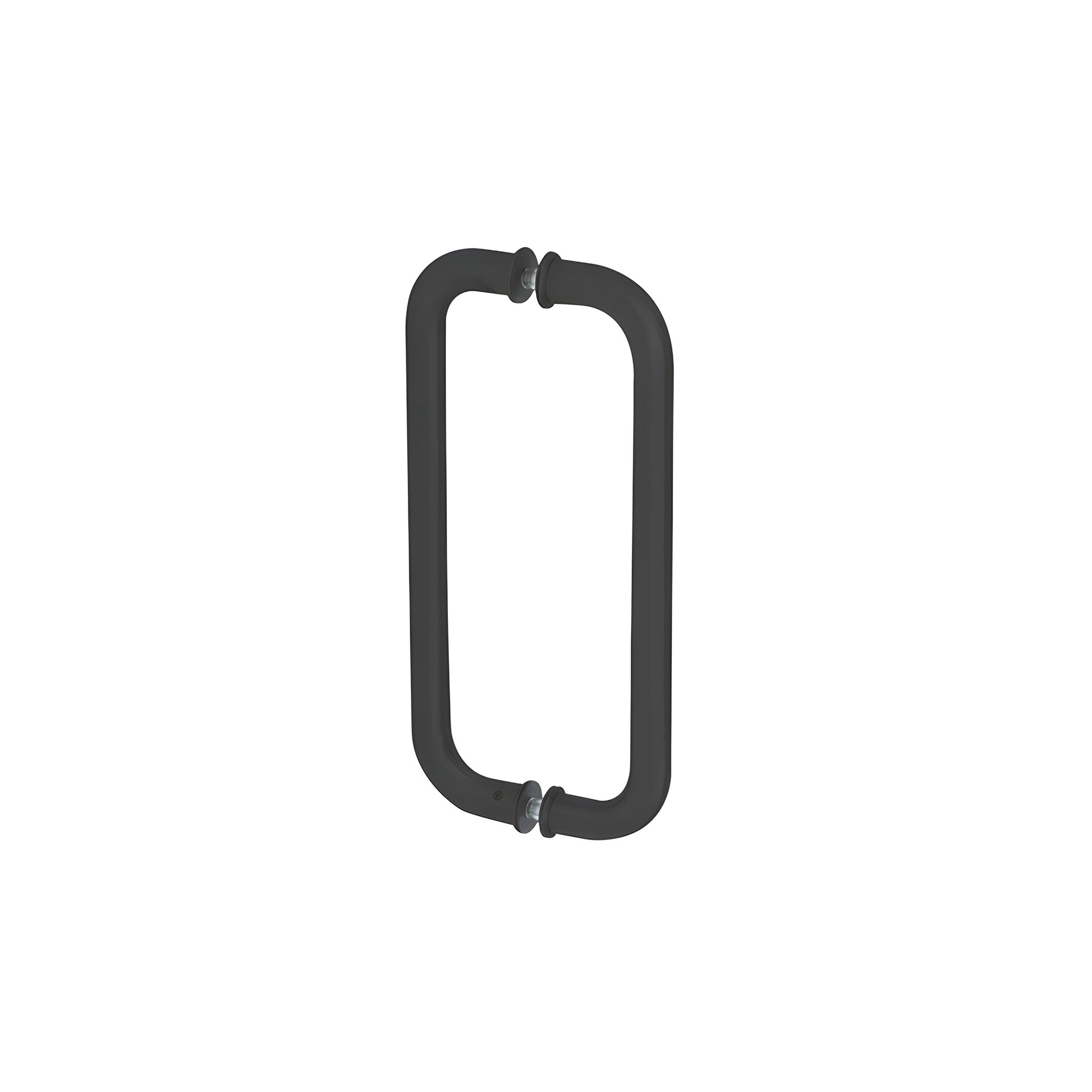

CRL 10" Matte Black Double-Sided Glass Door Pull Handle

CRL 10" Matte Black Double-Sided Glass Door Pull Handle

$123.29 CAD
$123.29 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# CM10X10MBL
Shipping Weight: 1.534 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Diameter
1 in. (25.4 mm)
Finish/Color
Matte Black
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes

Overview

  • Stocked in up to five architectural finishes
  • For use with 3/8" to 3/4" (10 to 19 mm) glass
  • Complete with matching finish metal washers and through-bolts for mounting
  • Use with monolithic tempered glass

CRL Glass Mounted Standard Pull Handle (SKU: CM10X10MBL) — available in three sizes and multiple architectural finishes. Ideal as a glass door pull handle for 3/8"–3/4" glass, offering durable through-bolt mounting and matching finish hardware for a polished, commercial-grade appearance.


SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction: 1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required: Two 5/8" (16 mm) diameter holes

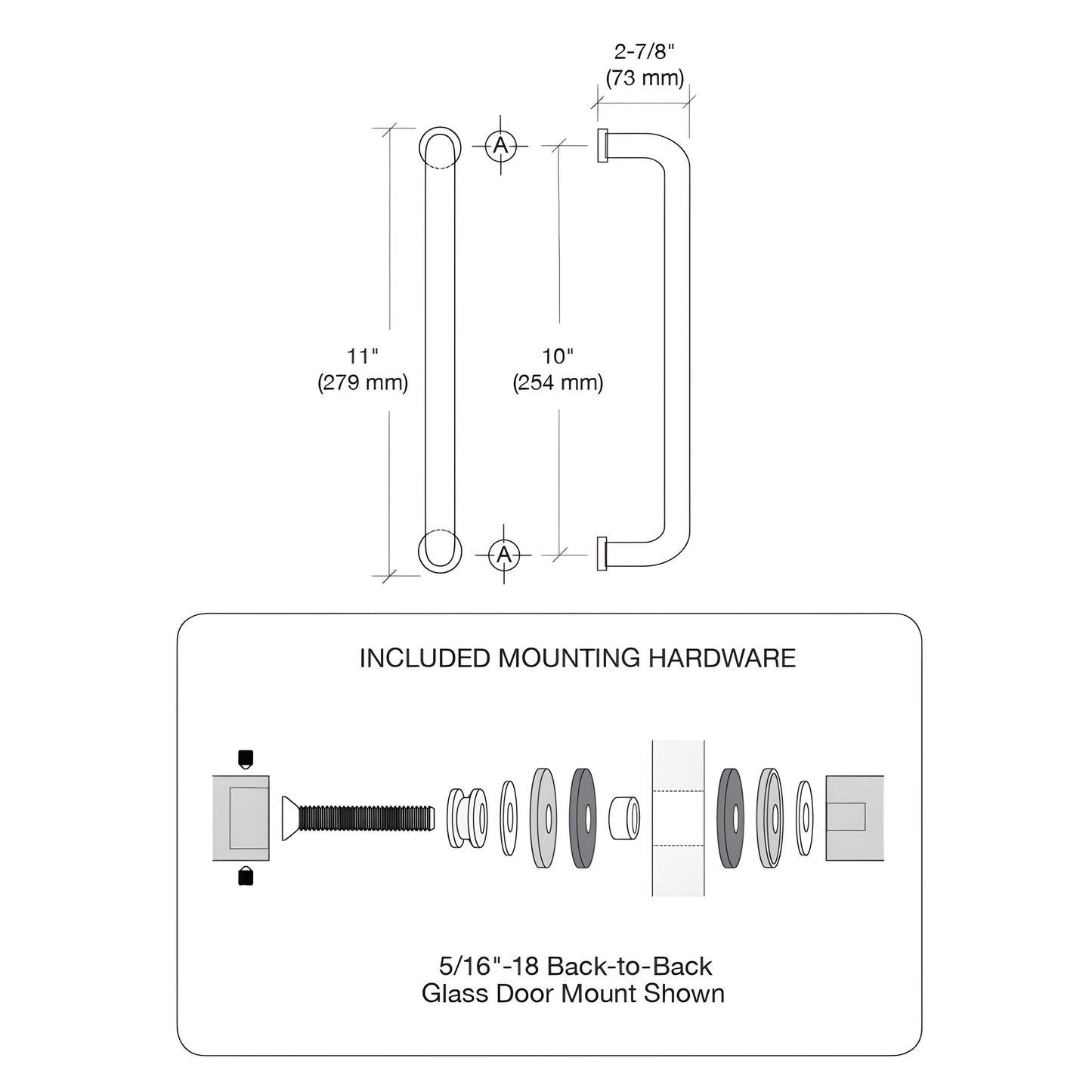

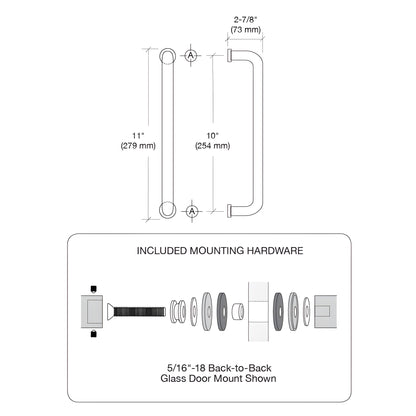

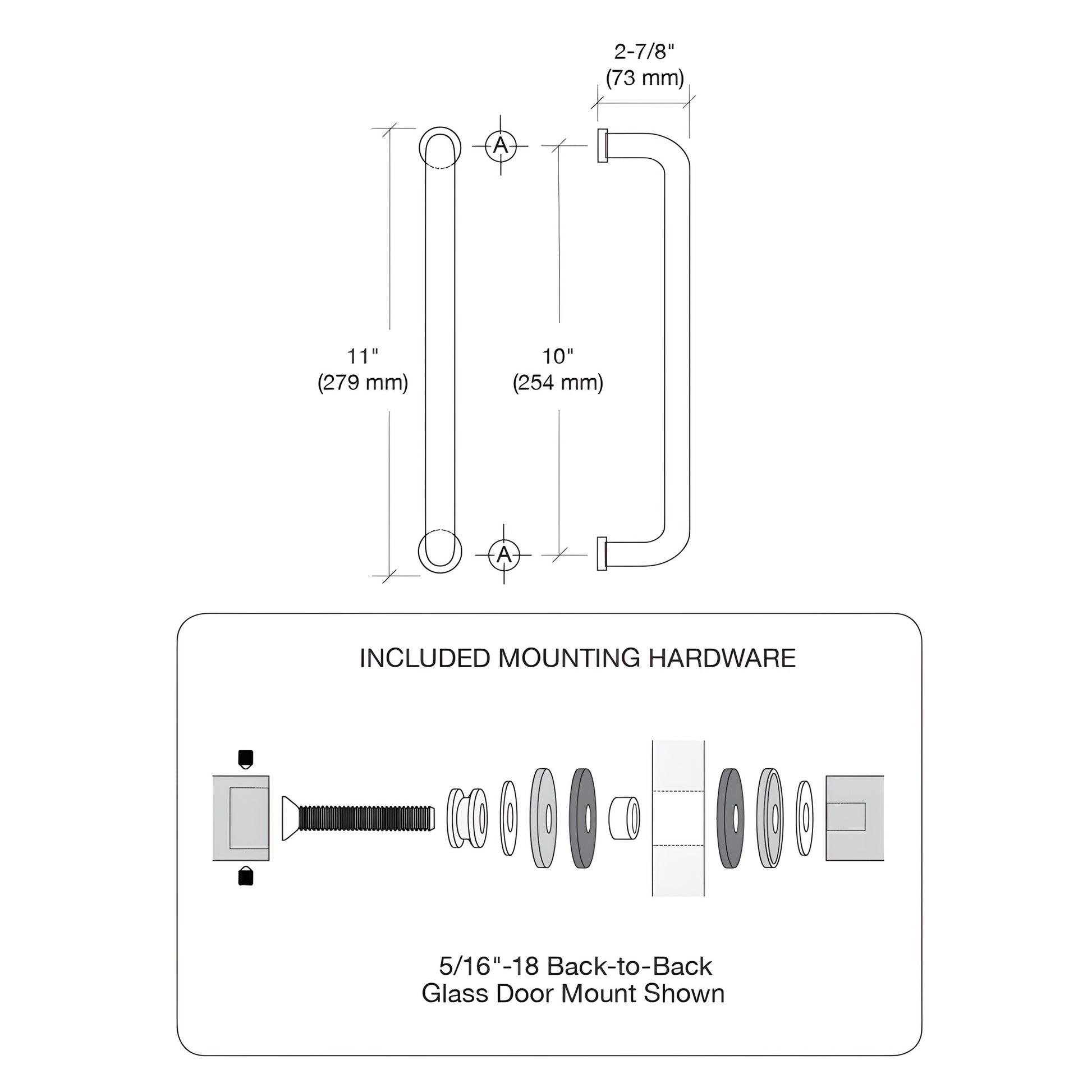

INCLUDES:
2 × through-bolts for glass mounting
4 × 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary by monitor.


Order the CM10X10MBL glass pull handle today to upgrade glass doors with an architectural finish and secure through-bolt mounting.
