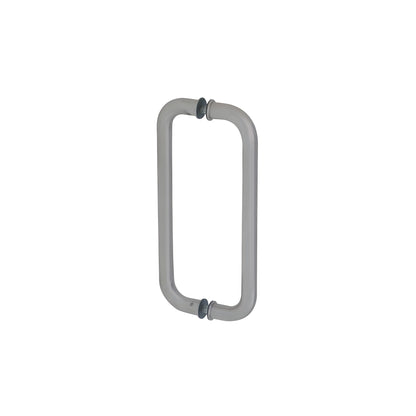

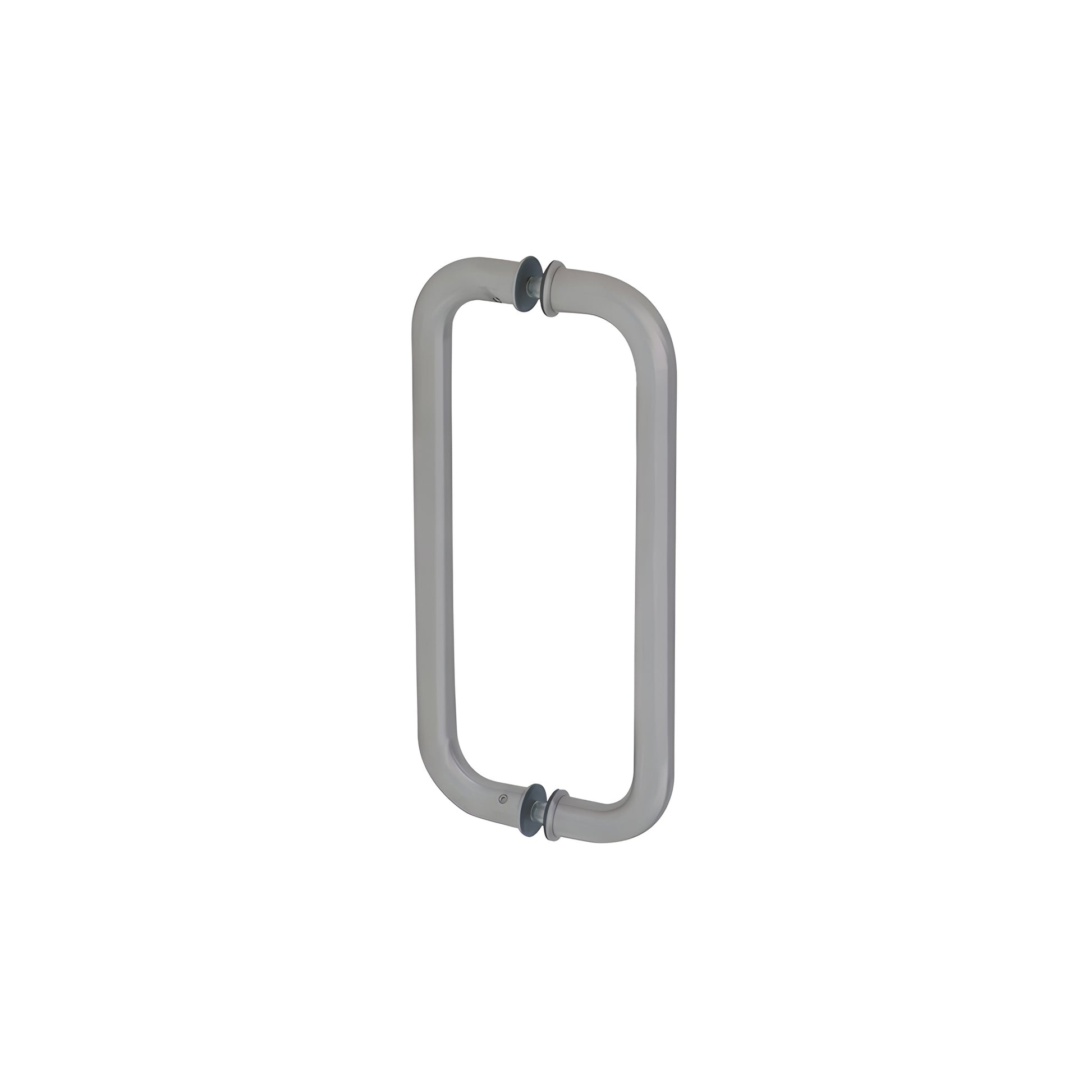

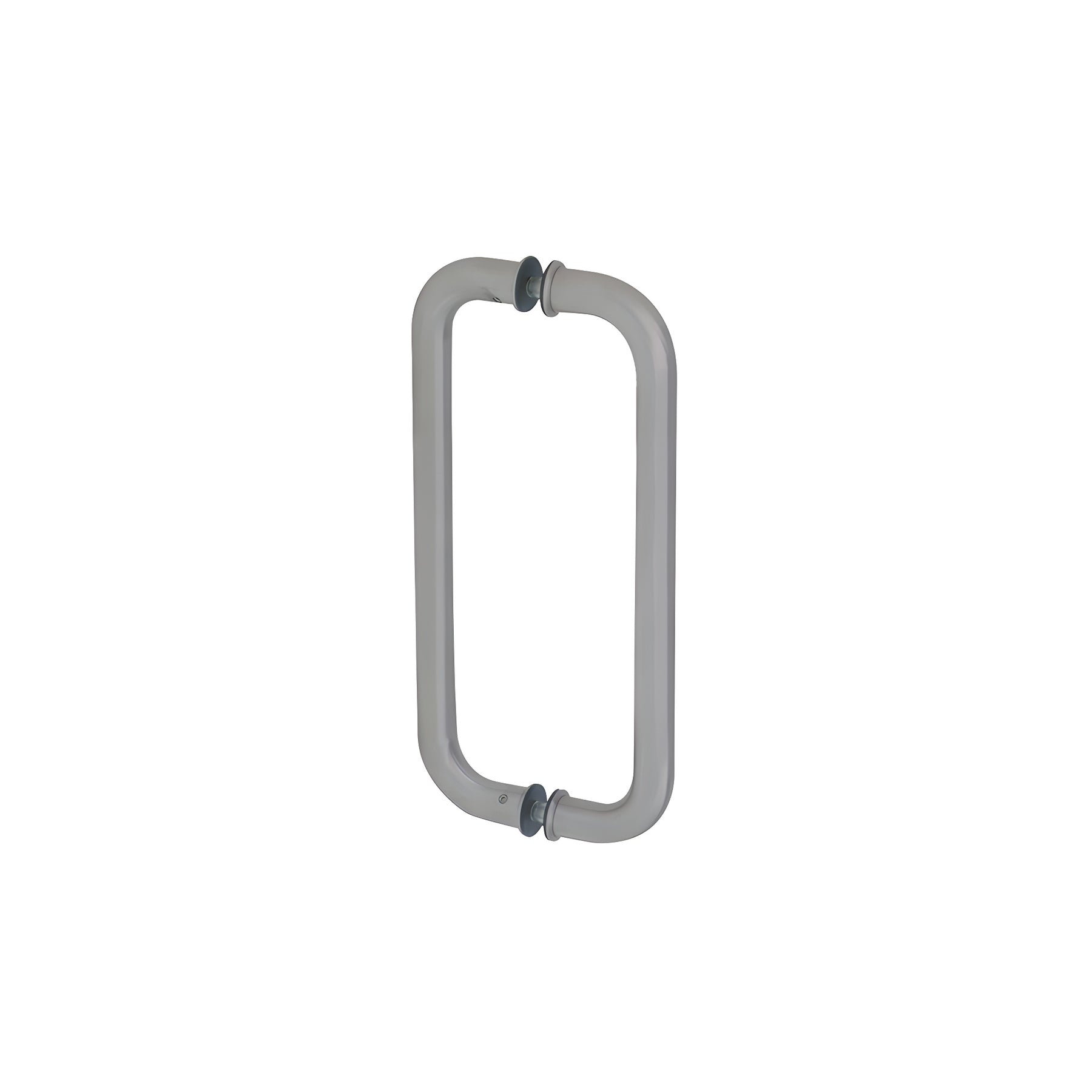

CRL Brushed Stainless 10 in Double-Sided Glass Door Pull
CRL Brushed Stainless 10 in Double-Sided Glass Door Pull
Regular price
$98.63 CAD
Regular price
Sale price
$98.63 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CM10X10BS
Shipping Weight: 11.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.52 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Diameter
1 in. (25.4 mm)
Finish/Color
Brushed Stainless Steel
Glazing Thickness
3/8 in. To 3/4 in. (10 mm To 19 mm)
Material
Stainless Steel
Mounting Center To Center
10 in. (254 mm)
Mounting Hole Diameter
5/8 in. (16 mm)
Mounting Type
Back-to-Back
Style Washer Diameter
1-1/4 in. (32 mm)
Style Washers
Yes
Overview
- Stocked in up to five architectural finishes
- For use with 3/8" to 3/4" (10 to 19 mm) glass
- Complete with matching finish metal washers and through-bolts for mounting
- Use monolithic tempered glass
This CRL Glass Mounted Standard Pull Handle (SKU: CM10X10BS) is available in three sizes and multiple architectural finishes, ideal for glass door hardware, storefronts, and commercial interior doors.
SPECIFICATIONS:
For Use With: 3/8" to 3/4" (10 to 19 mm) glass
Construction:
1" (25 mm) diameter stainless steel or brass tubing. *1-1/4" (32 mm) diameter stainless steel (Cat. No. CD24X24BS125 model only).
Projection: 3" (76 mm) from face of glass to outside of handle
Glass Fabrication Required:
Two 5/8" (16 mm) diameter holes

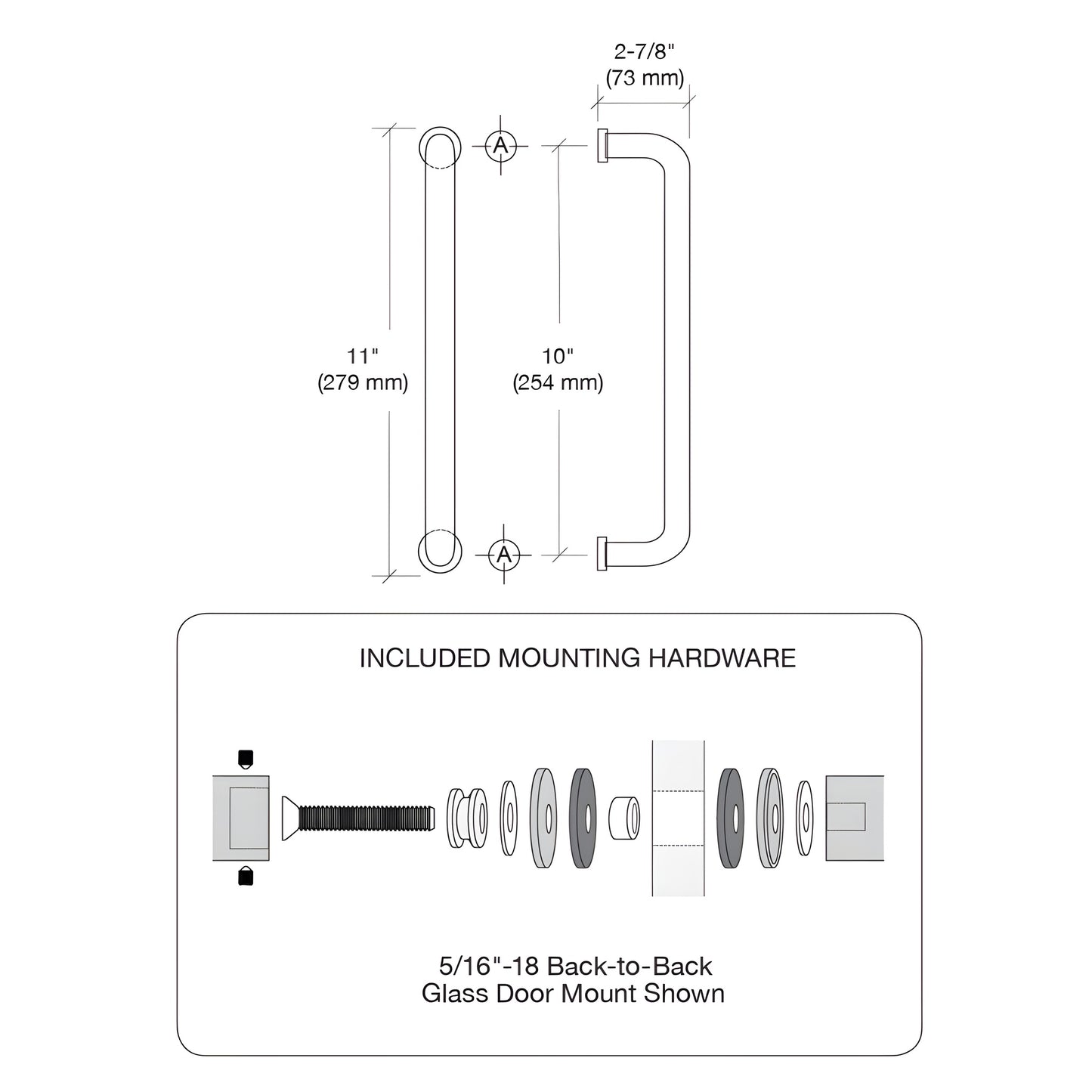

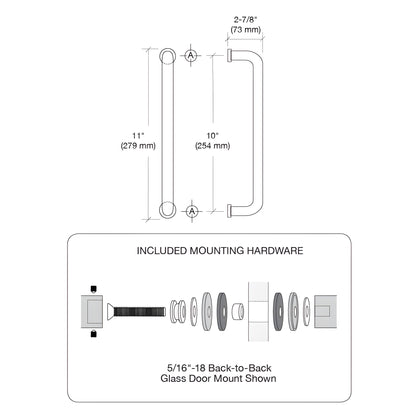

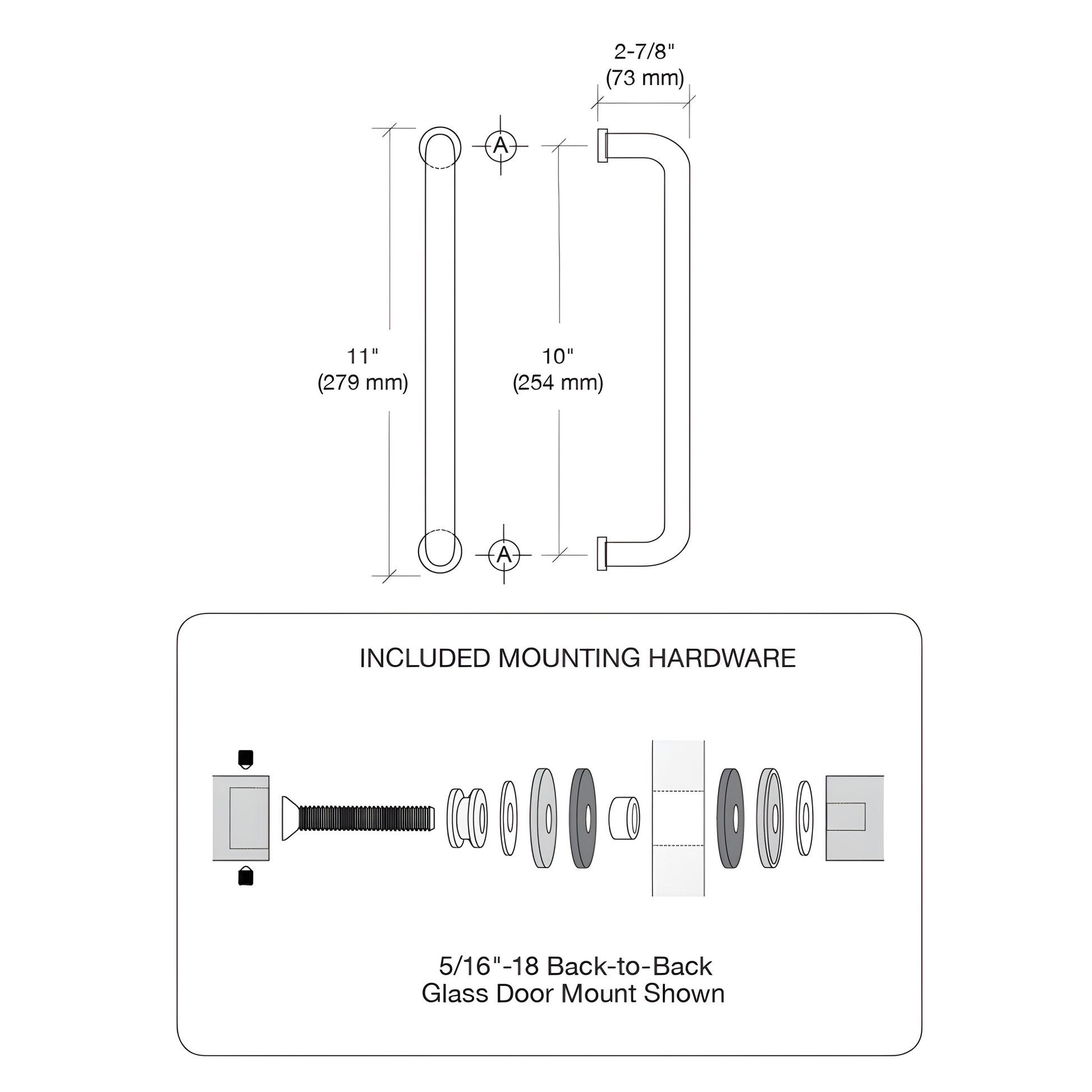

INCLUDES:
2 each: through-bolts for glass mounting
4 each: 1-1/4" (32 mm) diameter matching finish metal washers and rubber gaskets
Stainless Steel Advisory:
Although stainless steel resists corrosion, it is not rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. See the Stainless Steel Disclaimer in Technical References for details.
Order the CM10X10BS glass pull handle today to upgrade your glass door hardware—contact us for finish availability and lead times.
