CRL 105º Hold Open Size 4 Spring Heavy Weight Floor Mounted Door Closer

Spring Size (3)

Overview

SKU	CRL8546
Sold as	1 Each
Auxiliary Stop Recommended	Yes

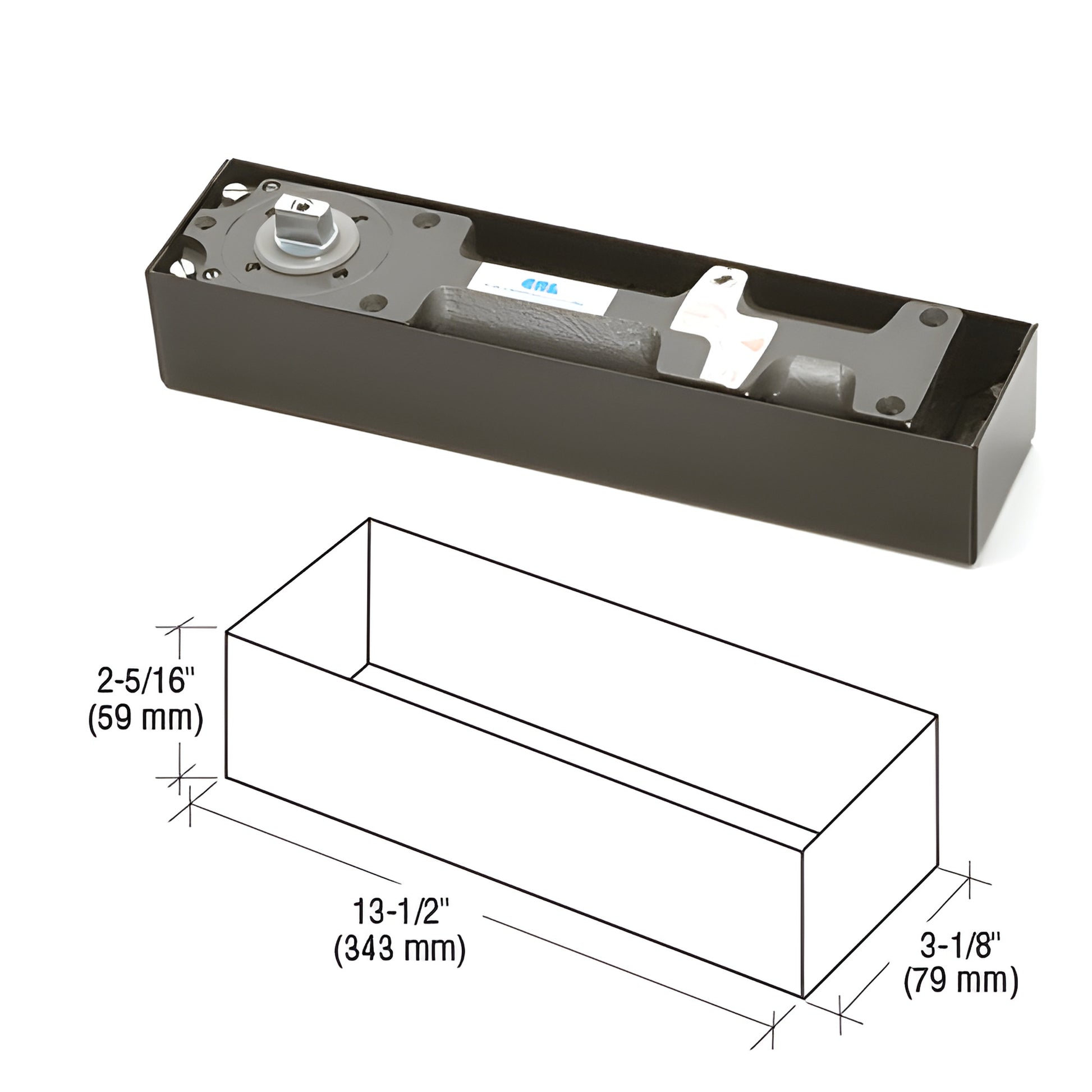

Body Height	2-5/16
Body Length	13-1/2
Body Width	3-1/8
Closer Body With Box	Yes
Closer Type	Floor Closer
Door Height	96
Handing	Double Acting
Hold Open	105°
Includes	CRL85CB, CRL9040S3
Independent Closing and Latching Valves	Yes
Interchangeable Spindles	Yes
Interior Or Exterior Doors	Yes
Maximum Door Width - Exterior	42 in. (1.07 m)
Maximum Door Width - Interior	48 in. (1.2 m)
Maximum Weight Center Hung	800 Pounds
Recommended Door Type	Aluminum, Hollow Metal
Replacement Parts	CRL85CB, CRL9040S3
Similar	CRL8460, J990NHOD, J994HOD
Spindle Included	Yes
Spring Size	4
UL Listed	Yes

Description

Product Details

The Perfect Door Closer to Support CRL's Door Rail System
Interchangeable Spindle Heights
Independent Closing and Latching Speed Adjustments
5 Year Limited Warranty
UL Listed

The CRL8500 Series Floor Mounted Door Closer has a heavy weight capacity capable of handling doors weighing up to 800 lbs. (363 kg). The Door Closer is available in either 90º or 105º Hold Open or No Hold Open models in three spring sizes to accommodate most standard installations.

The supplied 1/8" (3 mm) collar height Standard Spindle is interchangeable with other available Spindles to accommodate different finished floor heights. Accessories such as Cover Plates, Pivots, Center-Hung and Offset Arms are also available.

NOTE: An auxiliary floor or overhead door stop is recommended to prevent possible damage to both the door closer and entryway due to over-extension of maximum allowable door swing.
