CRL 105Β° Hold-Open Size 5 Heavy-Duty Floor-Mounted Door Closer
CRL 105Β° Hold-Open Size 5 Heavy-Duty Floor-Mounted Door Closer
Regular price
$539.64 CAD
Regular price
Sale price
$539.64 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8556
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 13.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Auxiliary Stop Recommended
Yes

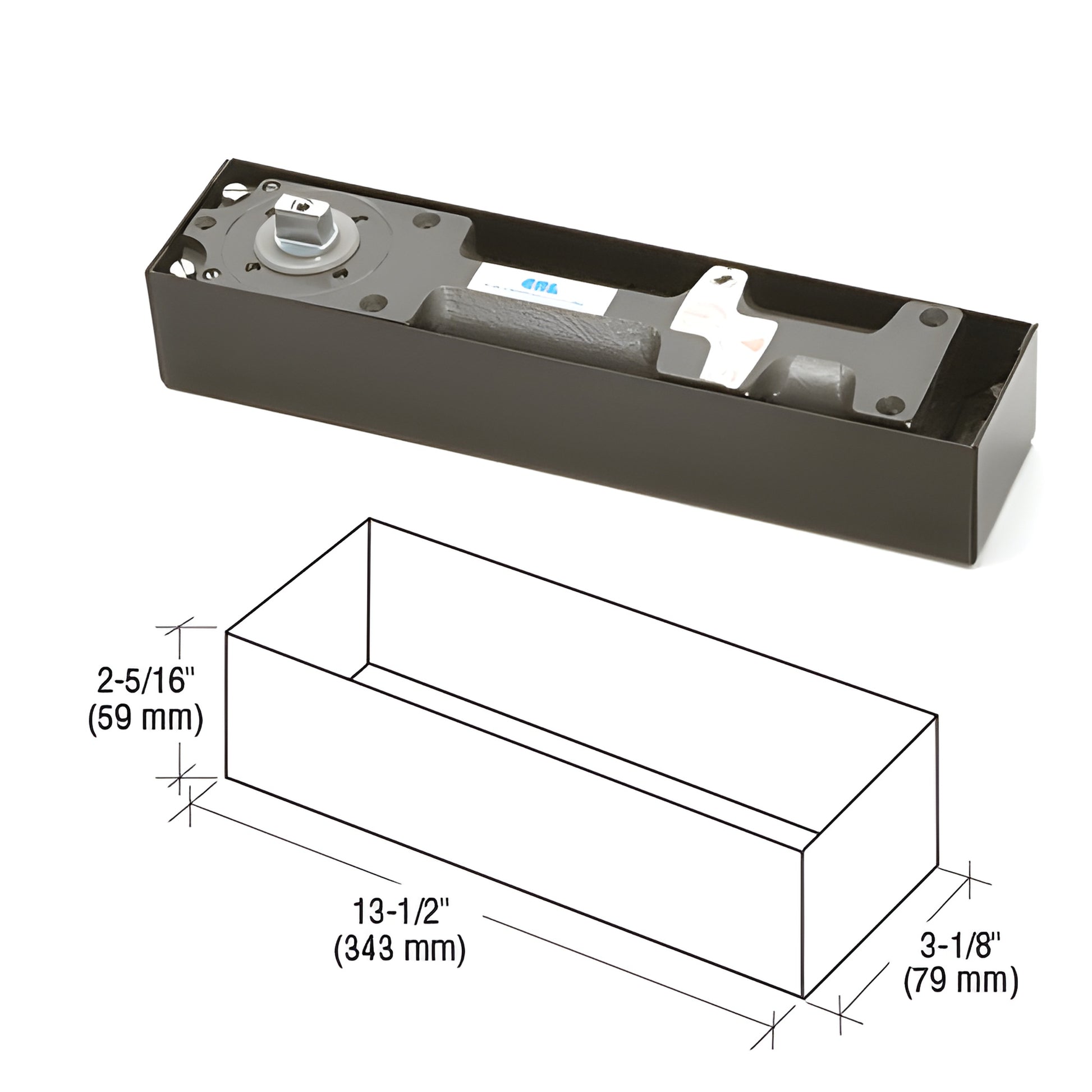

Body Height
2-5/16
Body Length
13-1/2
Body Width
3-1/8
Closer Body With Box
Yes
Closer Type
Floor Closer
Door Height
96
Handing
Double Acting
Hold Open
105Β°
Includes
CRL85CB, CRL9040S3
Independent Closing and Latching Valves
Yes
Interchangeable Spindles
Yes
Interior Or Exterior Doors
Yes
Maximum Door Width - Exterior
48 Inches
Maximum Door Width - Interior
54 Inches
Maximum Weight Center Hung
800 Pounds
Opening Degree
105
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL85CB, CRL9040S3
Similar
CRL8420, CRL8460, J994HOD
Spindle Included
Yes
Spring Size
5
UL Listed
Yes
Overview
- The perfect floor-mounted door closer for CRL's Door Rail System (SKU: CRL8556)
- Interchangeable spindle heights for varied finished floor conditions
- Independent closing and latching speed adjustments for precise door control
- 5-Year Limited Warranty
- UL Listed for safety and performance
The CRL8500 Series Floor Mounted Door Closer is engineered for heavy doors and reliably supports door weights up to 800 lbs. (363 kg). Choose 90Β° or 105Β° Hold Open, or No Hold Open models. Three spring sizes accommodate most standard installations for interior and exterior commercial doors.
The supplied 1/8" (3 mm) collar-height standard spindle is interchangeable with optional spindles to match different finished floor heights. Compatible accessories include cover plates, pivots, center-hung arms, and offset arms for flexible installation options. Note: Use an auxiliary floor or overhead door stop to prevent over-extension and protect the closer and surrounding entryway.
SPECIFICATIONS:
Maximum Door Weight: 800 lbs. (363 kg)
Maximum Interior Door Width: 54" (1.37 m)
Maximum Exterior Door Width: 48" (1.22 m)
Upgrade to the CRL8500 Series floor-mounted door closer (CRL8556) for secure, durable operation on heavy commercial doors β add to cart or contact CRL for pricing and installation support.
