CRL 105Β° Concealed Overhead Door Closer, ADA No-Hold Side-Load (GE)
CRL 105Β° Concealed Overhead Door Closer, ADA No-Hold Side-Load (GE)
Regular price
$198.80 CAD
Regular price
Sale price
$198.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8972GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6972, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
Side load ADA GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8772GE
Spindle
1/2
Spring Size
8.5
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (12.7 mm) top rail depth
- Adjustable side-load bottom pivot set for threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed
CRL Overhead Door Closer Kit β SKU: CRL8972GE

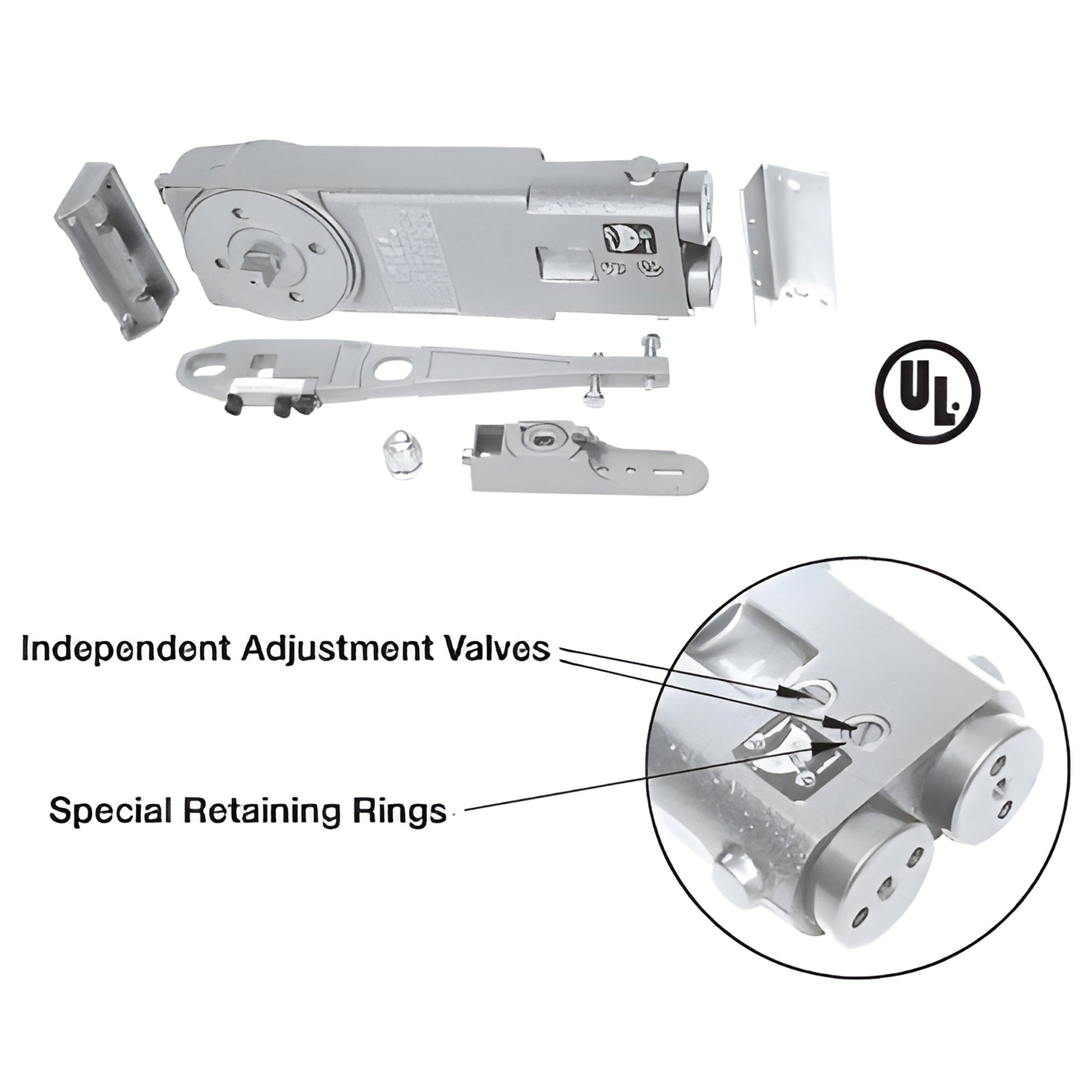

This overhead concealed door closer kit includes a Medium Spring Size door closer body, mounting clips, Type "S" side-load arm, and a "GE" bottom pivot set for threshold mounting. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Independent dual-action valves control closing and latching speeds for reliable, adjustable performance. Available in both 90Β° and 105Β° hold-open or no hold-open configurations.
Key features & differentiators
- Independent adjustment valves β separate, non-critical control of closing speed and latching speed for fine tuning
- Special retaining rings β prevent valve screws from being backed out of the closer body
- Threshold-ready β adjustable side-load bottom pivot set designed for threshold mounting
- Concealed overhead design β integrates with standard extrusions for a clean, commercial appearance
Compatibility & options
Closers are available with different spring sizes, hardware options, and overhead concealed door closer accessories to suit varying commercial and ADA-related applications.
Notes & warnings
An auxiliary floor or overhead stop is recommended to prevent damage from over-extension of maximum allowable door swing.
Although A.D.A. series door closers comply with A.D.A. specified opening forces, site conditions and door size may require higher spring power; ADA compliance does not guarantee adequate closing force for all installations.
Product Warning: Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door. Not for use on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm).
Order SKU CRL8972GE today for a concealed overhead door closer solution with adjustable side-load pivot and reliable independent valve control.
