CRL 105Β° Hold-Open Adjustable Overhead Concealed Door Closer GE
CRL 105Β° Hold-Open Adjustable Overhead Concealed Door Closer GE
Regular price
$265.55 CAD
Regular price
Sale price
$265.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8770GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105Β°
Includes
CRL6770, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8970GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
- Adjustable side-load bottom pivot set for threshold mounting
- 5 Year Limited Warranty
- UL Listed

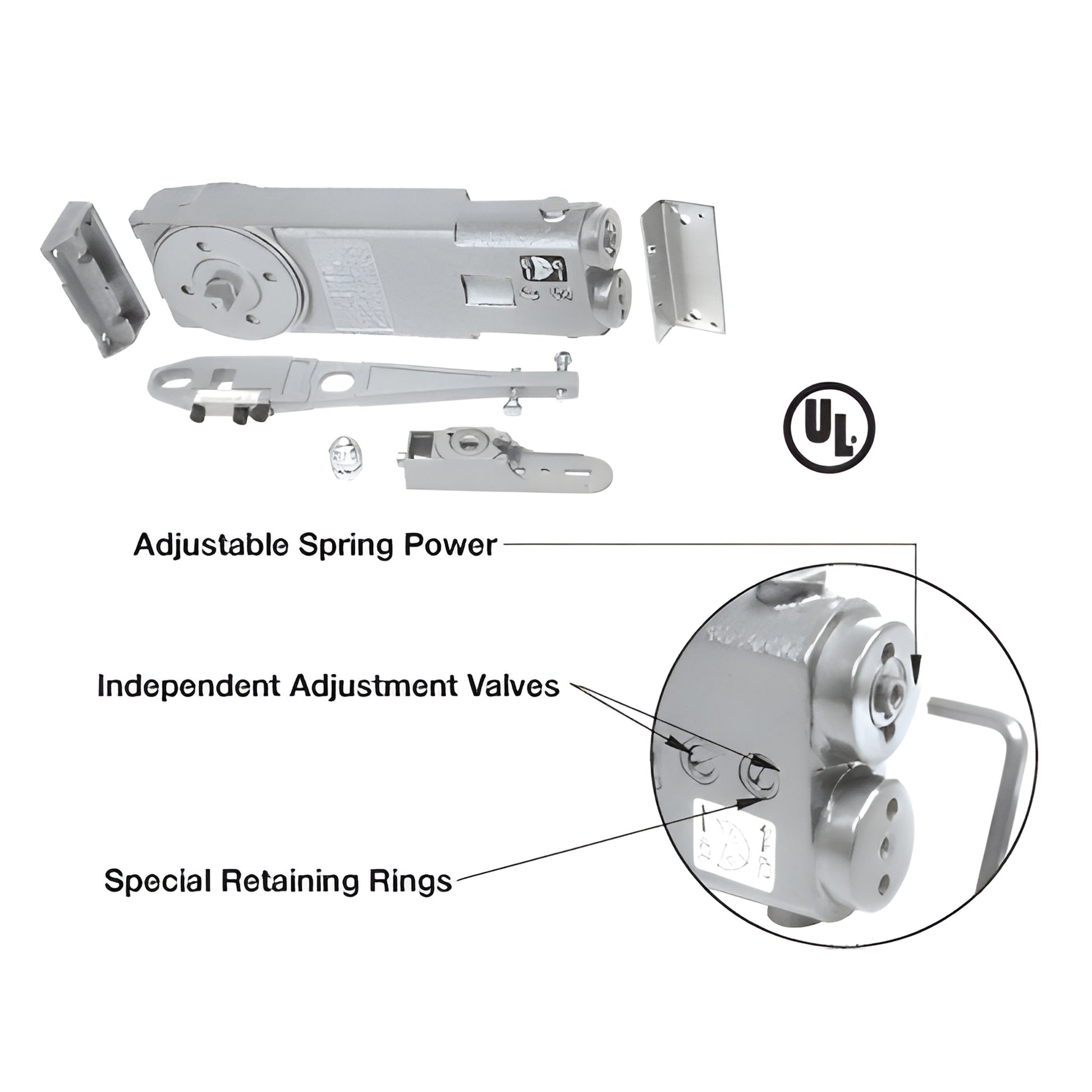

CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8770GE) is a concealed overhead door closer designed to meet A.D.A. opening force requirements for accessible entrances. Offered as a body-only unit with mounting clips for retrofits or as complete packages that include the closer body, mounting clips, your choice of Type "S" side-load arm or Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set or "GE" pivot set. The closer fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions and is available in models with 90Β° or 105Β° hold-open or no hold-open.
Adjustable Spring Power
Allows spring tension adjustment from a minimum 8-1/2 lbs. opening force up to a medium spring size to accommodate site conditions and door weightβuseful when specifying an ADA-compliant concealed door closer for commercial entrances.
Independent Adjustment Valves
Non-critical, independent valves control both closing speed and latching speed separately for precise door control.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the closer body.
Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension at maximum door swing.
Product Warning:
Closers set to comply with A.D.A. opening force limits may not provide sufficient spring power to control and fully close some doors depending on site conditions and door size. Verify field performance when installing on heavy or oversized doors.
Key differentiators: concealed overhead design for a clean appearance, adjustable spring power for ADA compliance, independent closing/latching valves, and retrofit-ready mounting clips. Order CRL8770GE now to ensure compliant, reliable door controlβcontact CRL or your distributor to purchase.
