CRL 105Β° Adjustable No-Hold-Open Spring Overhead Concealed Door Closer GE
CRL 105Β° Adjustable No-Hold-Open Spring Overhead Concealed Door Closer GE
Regular price
$261.30 CAD
Regular price
Sale price
$261.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8772GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6772, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
No Hold Open
105Β°
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8972GE
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 36" to 42" to meet A.D.A. opening force requirements
- Adjustable side-load bottom pivot set for threshold mounting
- 5 Year Limited Warranty
- UL Listed

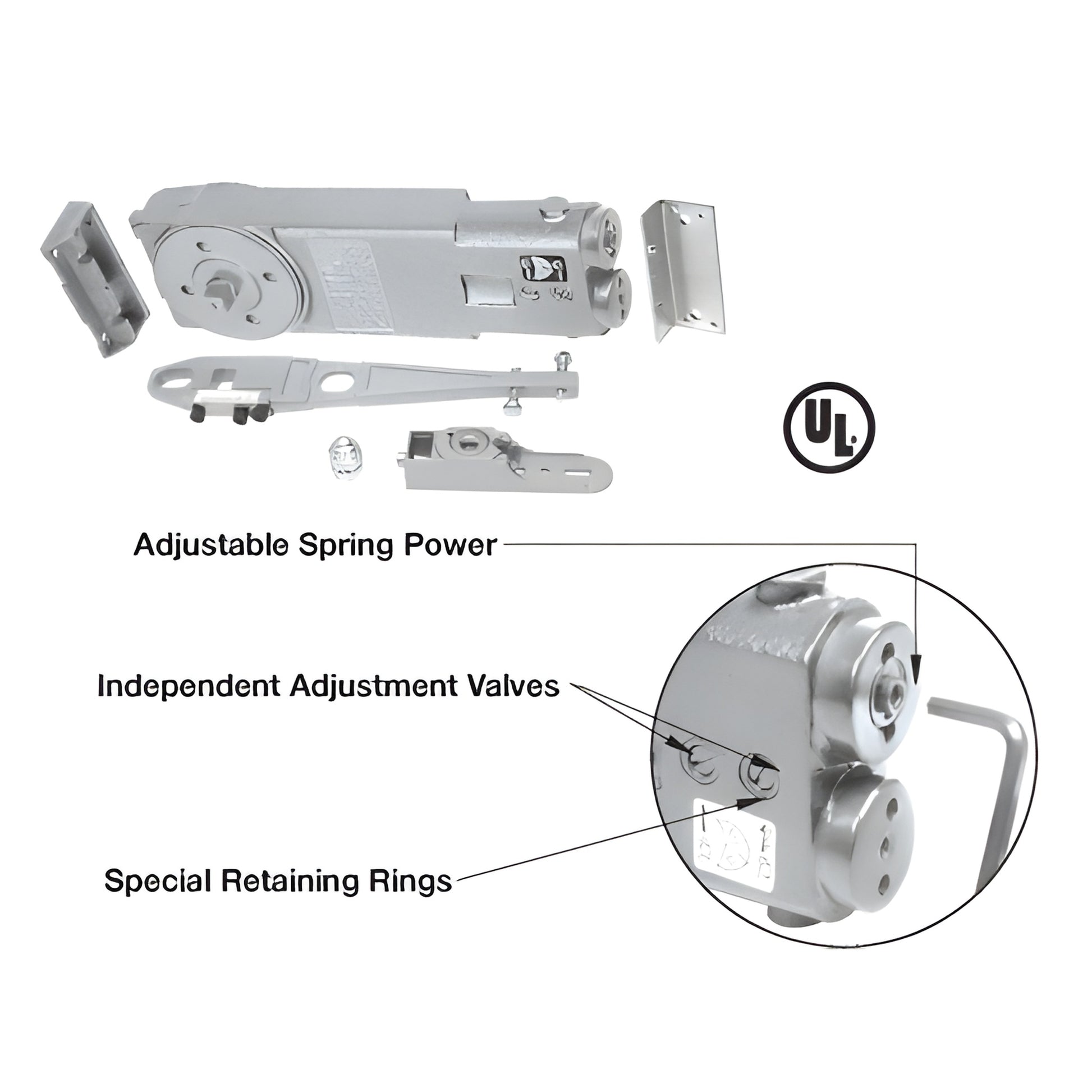

The CRL Adjustable Spring Power Overhead Concealed Door Closer (SKU: CRL8772GE) is an ADA-compliant, concealed overhead closer designed for storefronts and commercial doors. Offered as a body-only kit with mounting clips for retrofits or as complete packages including mounting clips, Type "S" side-load arm or Type "A" end-load arm, and selectable "DP" adjustable dual-purpose or "GE" bottom pivot sets. The closer features independent, dual-action valves for precise closing and latching speed control and is available with 90Β° or 105Β° hold-open or no hold-open options. Designed to fit standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions; additional spring sizes and hardware options are available for heavier doors or special site conditions.
Adjustable Spring Power
Adjustable spring tension from a minimum of 8-1/2 lbs. opening force up to medium spring sizes to meet site-specific ADA and door control requirements.
Independent Adjustment Valves
Non-critical valves allow independent adjustment of closing speed and latching speed for reliable door control.
Special Retaining Rings
Retaining rings prevent valve screws from being backed completely out of the closer body for durable field serviceability.
Note
Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
Product Warning
Closers set to comply with ADA opening force limits may not provide sufficient spring power to control and close the door under some site conditions or with larger doors. Verify closer size and configuration for your application.
