CRL 90° No Hold-Open Overhead Concealed Door Closer - ADA End-Load

• Center-hung end-load hardware package for doors with 1" (25 mm) deep top rails
• Fits doors with 1" (25 mm) top rail depth
• Adjustable dual-purpose bottom pivot set for floor or threshold mounting
• U.L. listed with a five-year limited warranty

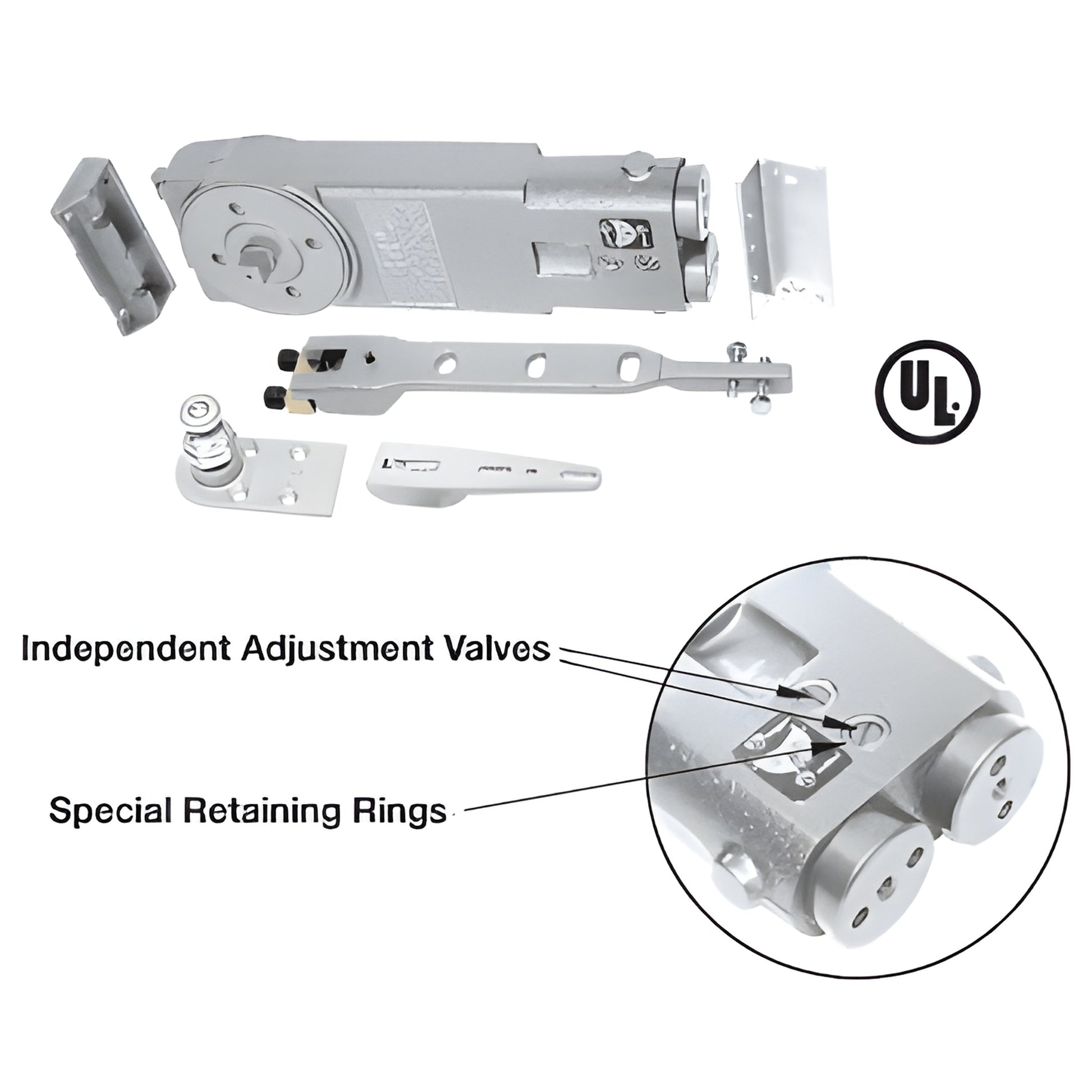

These CRL Overhead Door Closer Kits (SKU: CRL8962A) include a medium spring size door closer, mounting clips, Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set—a complete commercial door closer kit for 1" top rail doors. The closer features independent, dual-action adjustment valves for separate control of closing and latching speeds. Available with 90° and 105° hold-open or no-hold-open models. Door closer bodies fit standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, and overhead concealed accessories are available separately.

Independent Adjustment Valves
Non-critical valves allow independent adjustment of closing speed and latching speed for precise door control.

Special Retaining Rings
Retaining rings prevent adjustment valve screws from being backed out of the door closer body.

NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.

NOTE: A.D.A. Series door closers comply with A.D.A. specified opening forces but may not provide adequate spring power to control and close the door depending on site conditions and door size.

Product Warning:
Closers set to comply with A.D.A. opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size. This closer is not for doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm).

Order CRL8962A now for a reliable center-hung, end-load commercial door closer solution.
