CRL 90Β° No-Hold-Open Overhead Concealed Door Closer, Side-Load ADA
CRL 90Β° No-Hold-Open Overhead Concealed Door Closer, Side-Load ADA
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8962S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL6962, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
90Β°
Package Type
Side Load ADA S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8762GE, CRL8770GE
Spindle
1/2
Spring Size
8.5
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (13 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed
SKU: CRL8962S

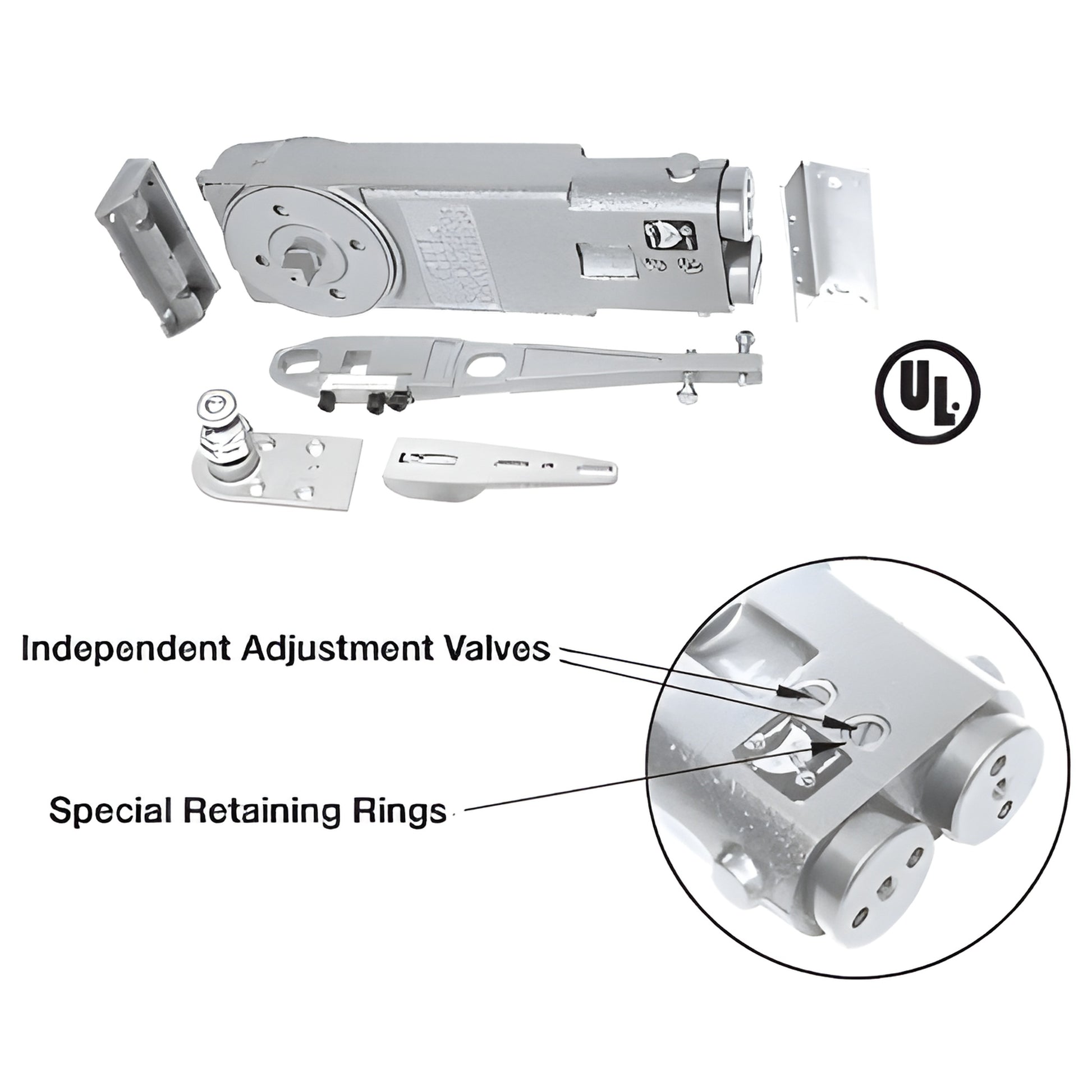

These CRL Overhead Door Closer Kits (CRL8962S) include a medium spring size door closer, mounting clips, Type "S" side-load arm, and your choice of a "DP" adjustable dual-purpose bottom pivot set or "GE" bottom pivot set. The overhead concealed door closer features independent, dual-action valves for precise control of closing and latching speeds. Available in both 90Β° and 105Β° hold-open and no-hold-open models. Closer bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions.
Key Differentiators
- Independent adjustment valves β non-critical valve control adjusts closing speed and latching speed independently
- Special retaining rings β prevent valve screws from backing out of the door closer body
- Dual-purpose bottom pivot β mounts to floor or threshold for flexible installation
- ADA-series option β designed to meet A.D.A. specified opening force where applicable
Important Notes & Limitations
An auxiliary floor or overhead stop is recommended to prevent possible damage from over-extension of maximum door swing. Although A.D.A. Series door closers comply with A.D.A. specified opening forces, site conditions and door size can affect closing performance. Do not use this closer on doors weighing over 200 lbs (91 kg) or wider than 36" (914 mm).
Product Warning:
Closers set to comply with A.D.A. specified opening forces may not provide adequate spring power to control and close the door depending on door size and site conditions.
Order CRL8962S overhead door closer kits for reliable, adjustable mounting and independent speed control β contact us to buy or for installation guidance.
