CRL Aluminum Surface-Mount Barrier-Free Door Closer, Adjustable Size 1-4

• Multi-size adjustable spring power closers — sizes 1 to 5
• Barrier-Free models meet A.D.A. low opening force requirements
• Fits doors 24" to 54" wide and 33 to 264 lbs.
• UL Listed

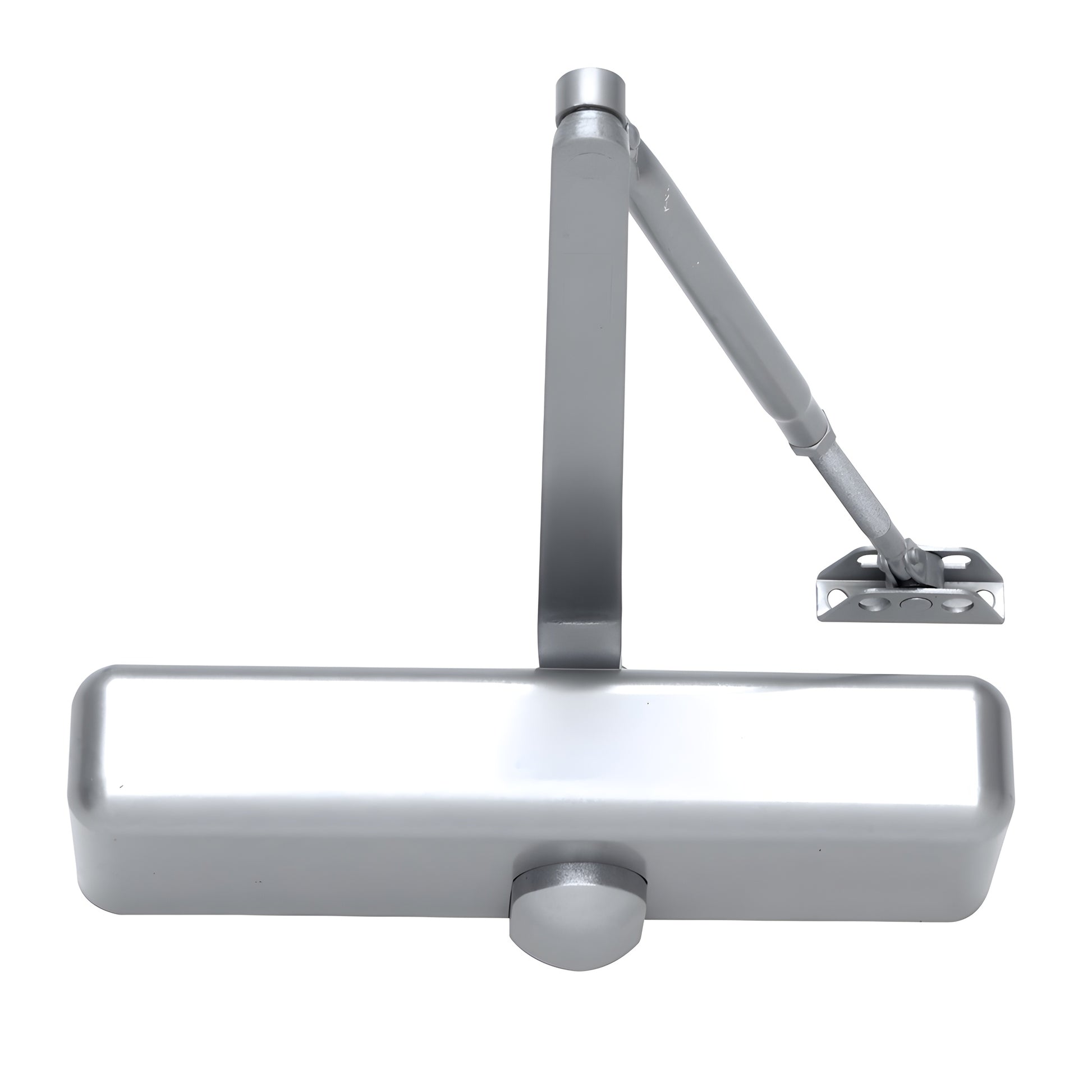

The CRL PR80 Series Multi-Size Adjustable Spring Power Surface Mounted Door Closers replace multiple single-size closers with one compact unit. Designed to match the common 9-1/16" x 3/4" (230 x 19 mm) hole template, these closers are ideal for new construction and retrofits. Adjustable from Size 1 through 5, they accommodate doors 24"–54" (610 mm–1.37 m) and up to 264 lbs. (120 kg). A Barrier-Free (low opening resistance) model complies with A.D.A. opening force limits. Independent closing and latching speed controls plus an adjustable backcheck help protect the closer, door, and adjacent surfaces from damage due to wind or heavy traffic.


All PR80 closers are UL listed and come with a ten-year warranty. Each unit includes parallel arm brackets and mounting hardware for regular, top jamb, or parallel arm installations. Standard slim plastic cover supplied. Optional accessories—drop plates and hold-open arms—are available for special installations. Ideal for contractors and facilities managers seeking a versatile, retrofit-ready surface closer (SKU: PR82BFA).
