CRL Black Powdercoat Glass U-Channel, Custom Length w/ Roll-In Gasket
CRL Black Powdercoat Glass U-Channel, Custom Length w/ Roll-In Gasket
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UCBL3812CL
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gloss Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Length
Specify
Material
Aluminum
Overview
- Top Loading Roll-In Gasket for 3/8" & 1/2" glass
- Fits 3/8" and 1/2" (10 or 12 mm) glass
- Available in several durable finishes
This CRL U-Channel with Roll-In Top Load Gasket (SKU: UCBL3812CL) is an aluminum glass channel designed for 3/8" or 1/2" (10 or 12 mm) glass and ideal for frameless glass door systems, sidelites, and overhead door closer headers. Use with CRL patch hardware, our Header for Overhead Door Closers with Fixed Sidelites, or the Door Rail System. The extrusion can be surface- or recess-mounted, and the roll-in top load gasketing secures the glass for a clean, professional finish. This multi-functional U-channel is offered in multiple finishes and includes a range of accessories to support different installation methods.

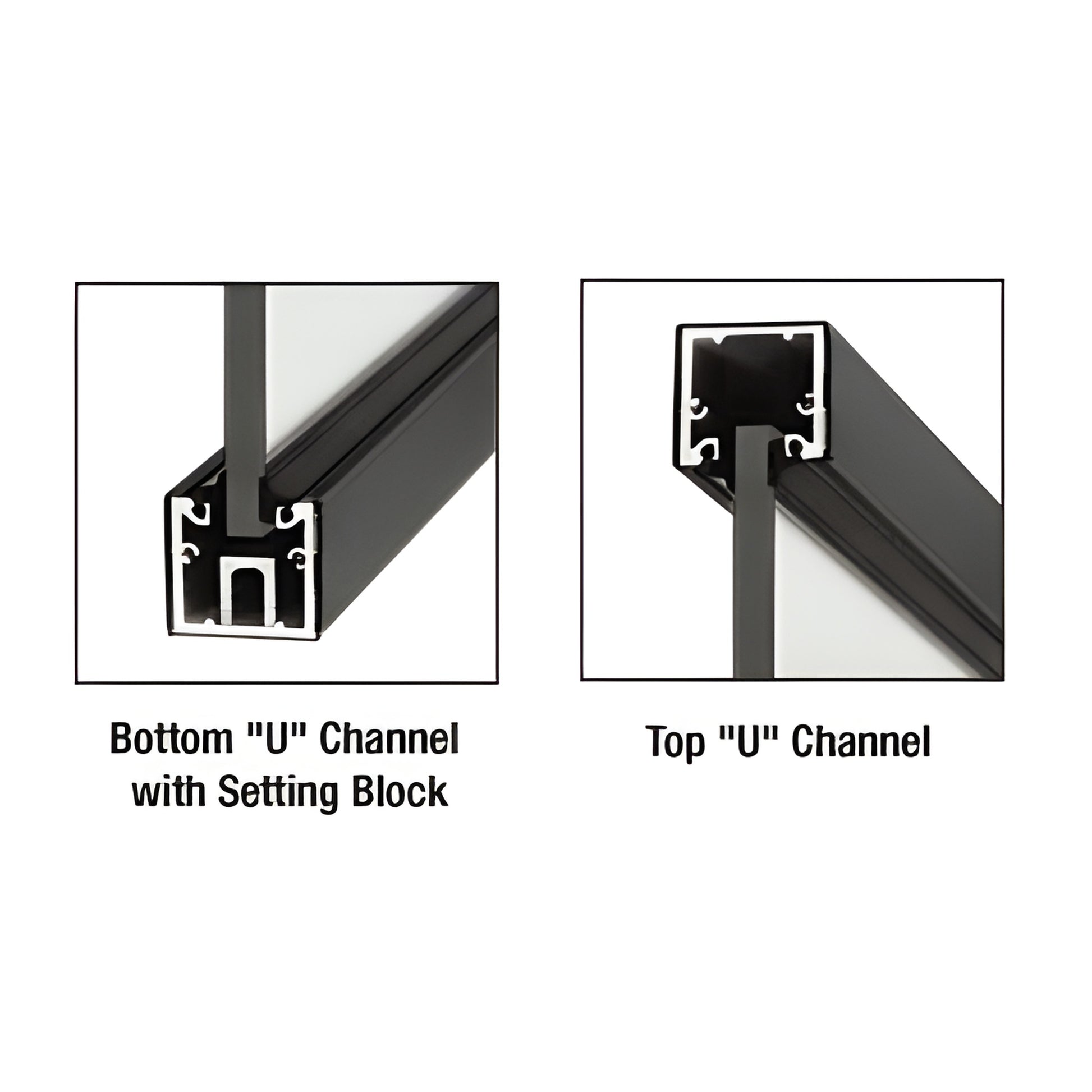

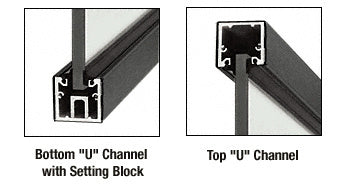

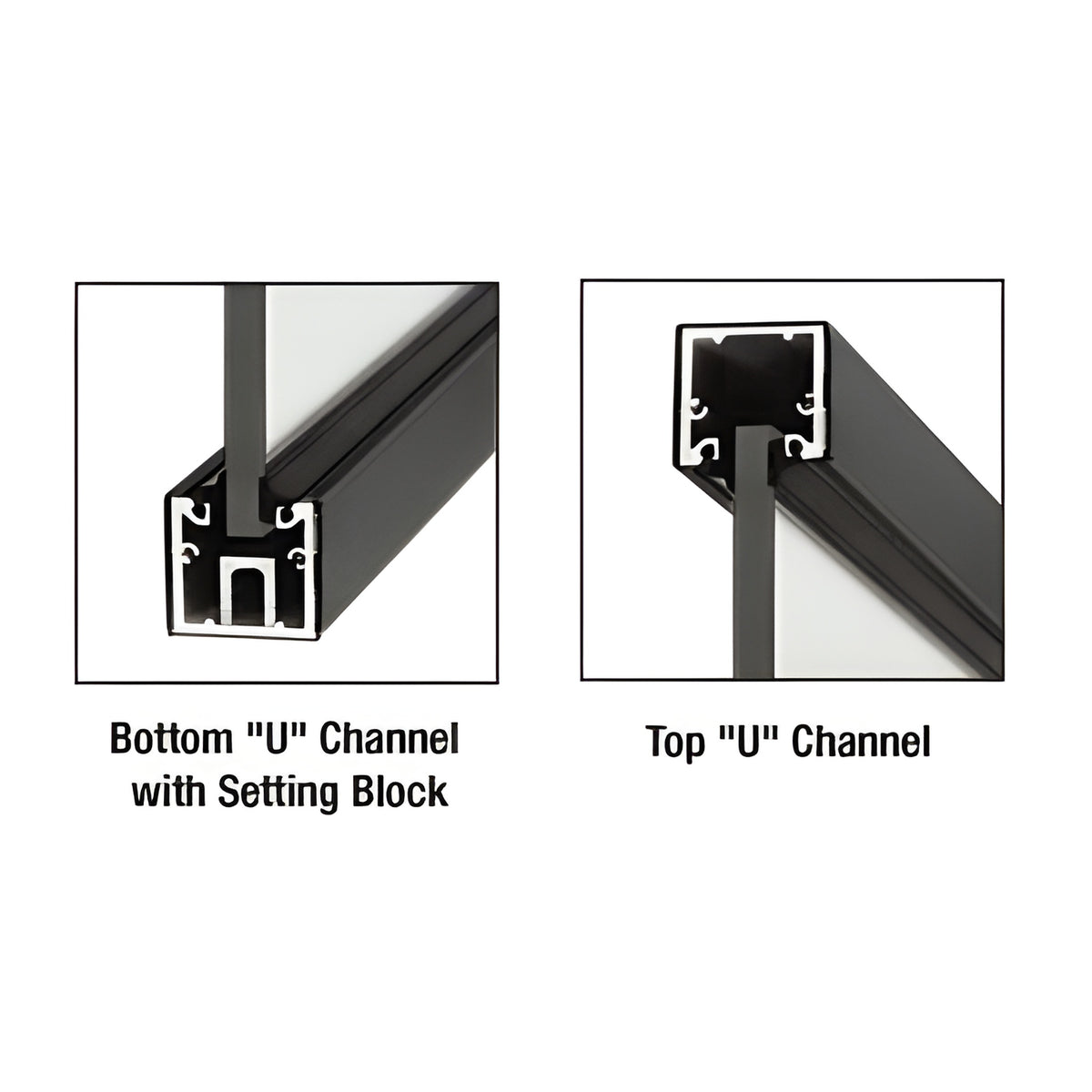

The 4" (102 mm) long Aluminum Setting Blocks with Neoprene provide rigid top support in the bottom channel and are sized to give 9/16" (14.3 mm) glass coverage in both top and bottom channels when glazed using the "lift and drop" method.
Roll-In Top Load Gasketing for 3/8" or 1/2" (10 or 12 mm) glass is sold separately in 100' or 500' rolls. Matching finish end caps are available to complete the installation and improve aesthetics.
Order SKU UCBL3812CL or contact CRL Customer Service for finish options and availability.
Specifications
CAD Drawings - dwg
