CRL Brite Anodized Deluxe Shower Door Header Kit - 95"

Finish/Color

Brite Anodized

Glazing Thickness

1/2 in. (12 mm)

Height

1-1/4 in. (32 mm)

Length

95 in. (2413 mm)

Material

Aluminum

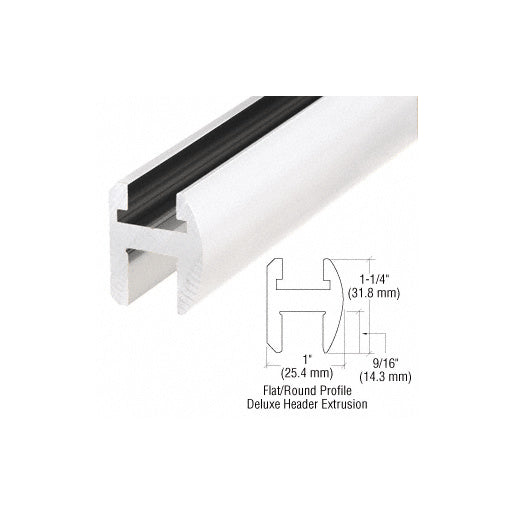

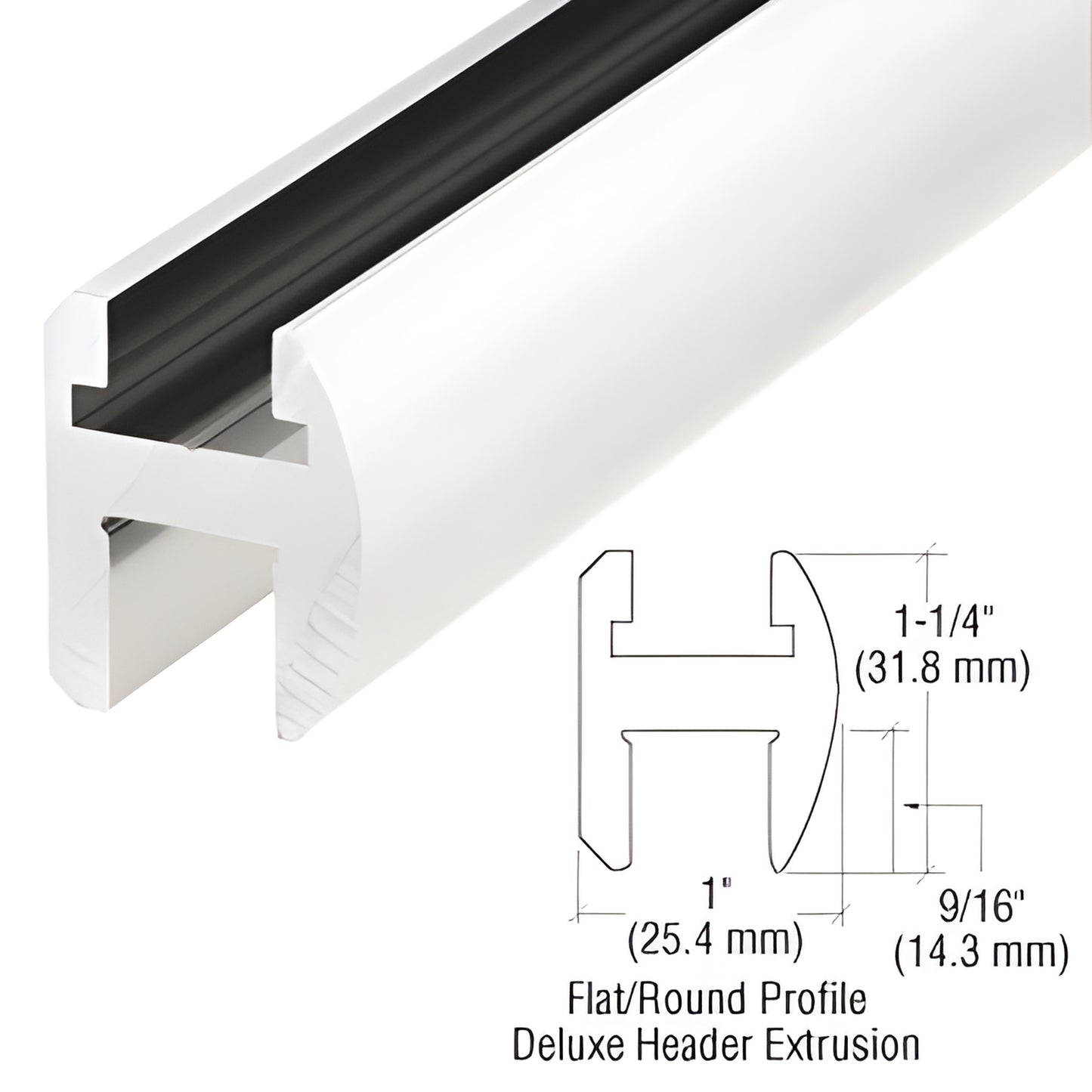

Profile

Flat / Curved

Series

Deluxe

Width

1 in. (25.4 mm)

CRL Brite Anodized Shower Door Header Kit – 95"

Upgrade your frameless glass shower with the CRL Deluxe Header Kit, engineered for both style and support. Designed to stabilize glass panels that do not reach the ceiling, this kit is ideal for use with a range of hinge systems including Senior Prima, Cardiff, Rondo, and Shell.

Key Features

Compatible Glass Thickness

• 5/16" (8 mm)
• 3/8" (10 mm)
• 1/2" (12 mm)

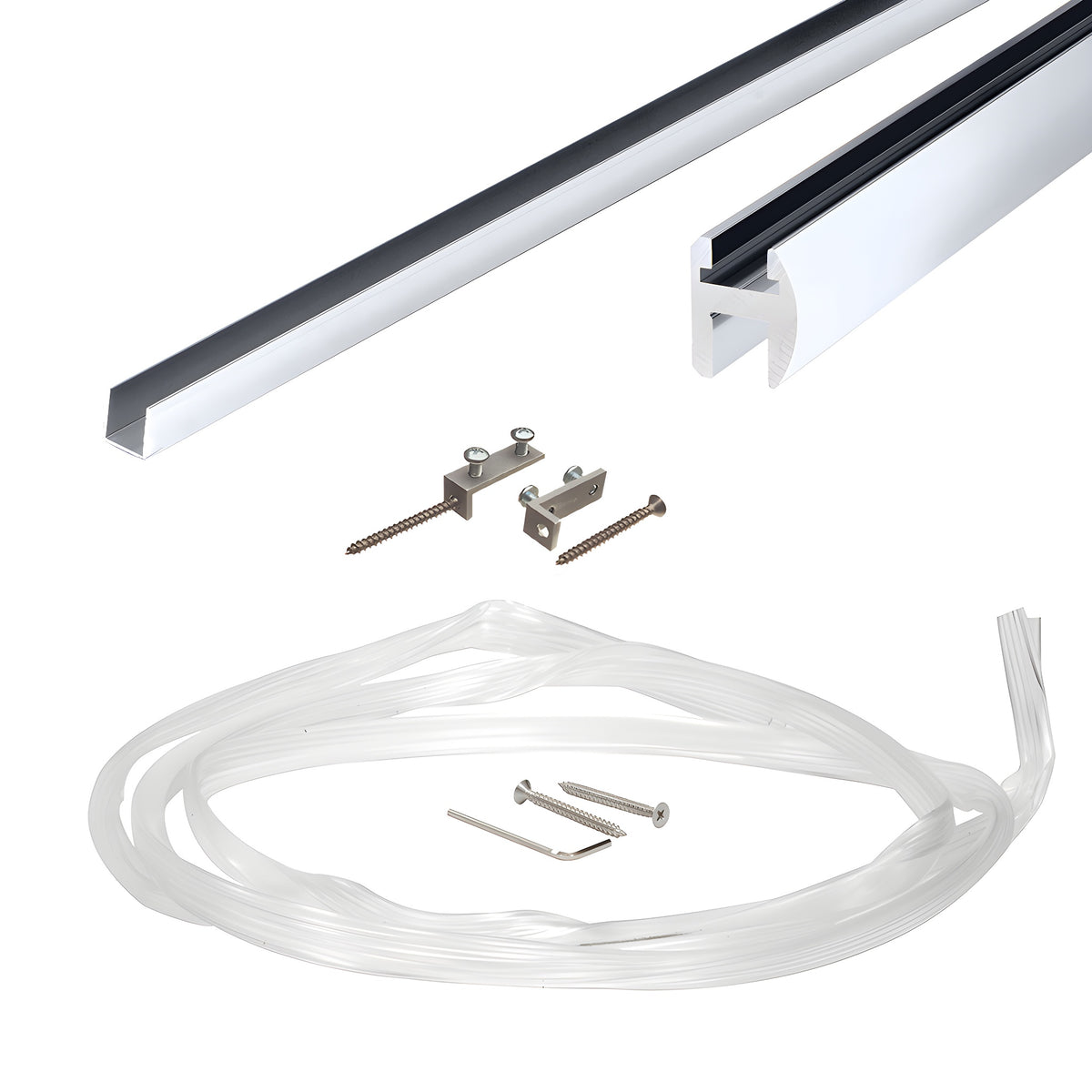

Included in the 95" Kit

• One 95" (2.41 m) piece of aluminum header extrusion
• One 36" (914 mm) aluminum snap-in filler for door pocket
• One pack of two BWB2 brass wall mounting brackets
• Clear vinyl for 5/16" and 3/8" glass (not required for 1/2")

Material & Finish

• Brite Anodized Finish
• Made from durable 6063-T5 aluminum alloy
• Narrow 1-1/4" (32 mm) face minimizes visible sightline

Additional Options

Available Lengths

• 66" (1.67 m)
• 95" (2.41 m)
• 144" (3.66 m)

Accessories (Sold Separately)

• 90°, 135°, and adjustable corner connectors
• Adapter block for pivot hinge setups
• Blank mounting brackets for non-standard wall angles

Installation Notes

• Compatible with top and bottom mount pivot hinges
• Vinyl insert not required for 1/2" glass
• For 1/4" (6 mm) glass, order Cat. No. HV140 clear vinyl separately
• Ensure shipping weights if needed before placing an order

Meta Description (SEO)
CRL Brite Anodized Shower Door Header Kit, 95" – Supports frameless glass, sleek design, fits 5/16", 3/8", and 1/2" glass. Ideal for modern showers.
