CRL 95 in Polished Nickel Deluxe Shower Door Header Bar Kit

• Fits 5/16", 3/8", and 1/2" (8, 10, and 12 mm) glass
• One Header Extrusion — 66" (1.67 m), 95" (2.41 m) or 144" (3.66 m)
• One 36" (914 mm) Aluminum snap-in filler for door pocket
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (not required for 1/2" / 12 mm)
• Pack of two BWB2 brass wall mounting brackets

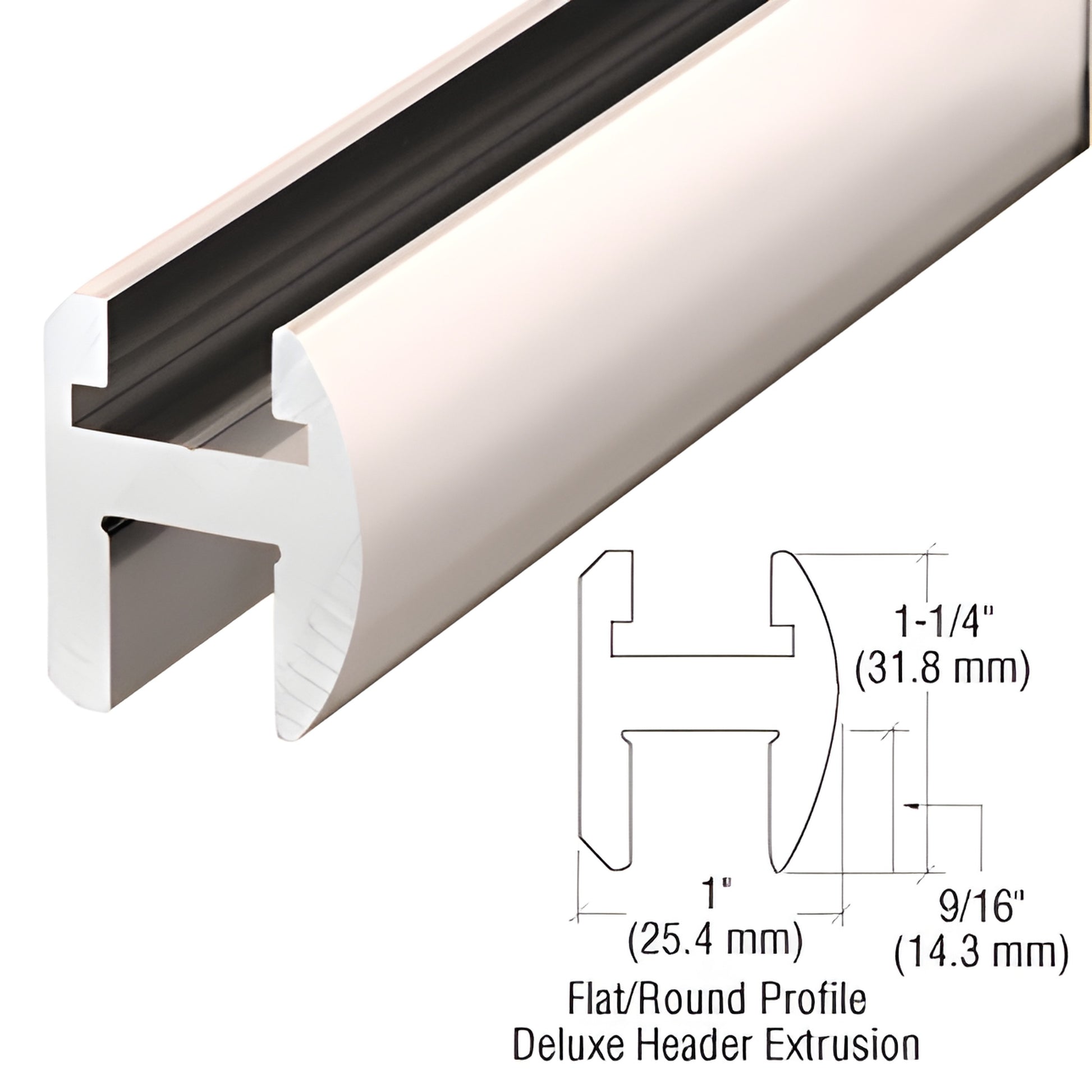

CRL Deluxe Header Kit—an aluminum header kit engineered to support and secure glass panels that do not reach the ceiling. Sold in 66", 95" or 144" lengths, each 6063-T5 aluminum header extrusion features a narrow 1-1/4" (32 mm) face to minimize visible sight lines for a clean, low-profile look.

Designed for in-house fabrication, the kit enables installers to customize configurations using component parts. Compatible with Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo or Shell hinges when used with top and bottom mount pivot hinges. 90° and 135° corner elbows or adjustable corners sold separately. A special adapter block is available for pivot-hinge installations. A blank mounting bracket is sold separately when the header does not meet the wall at 90° and standard brackets cannot be used.

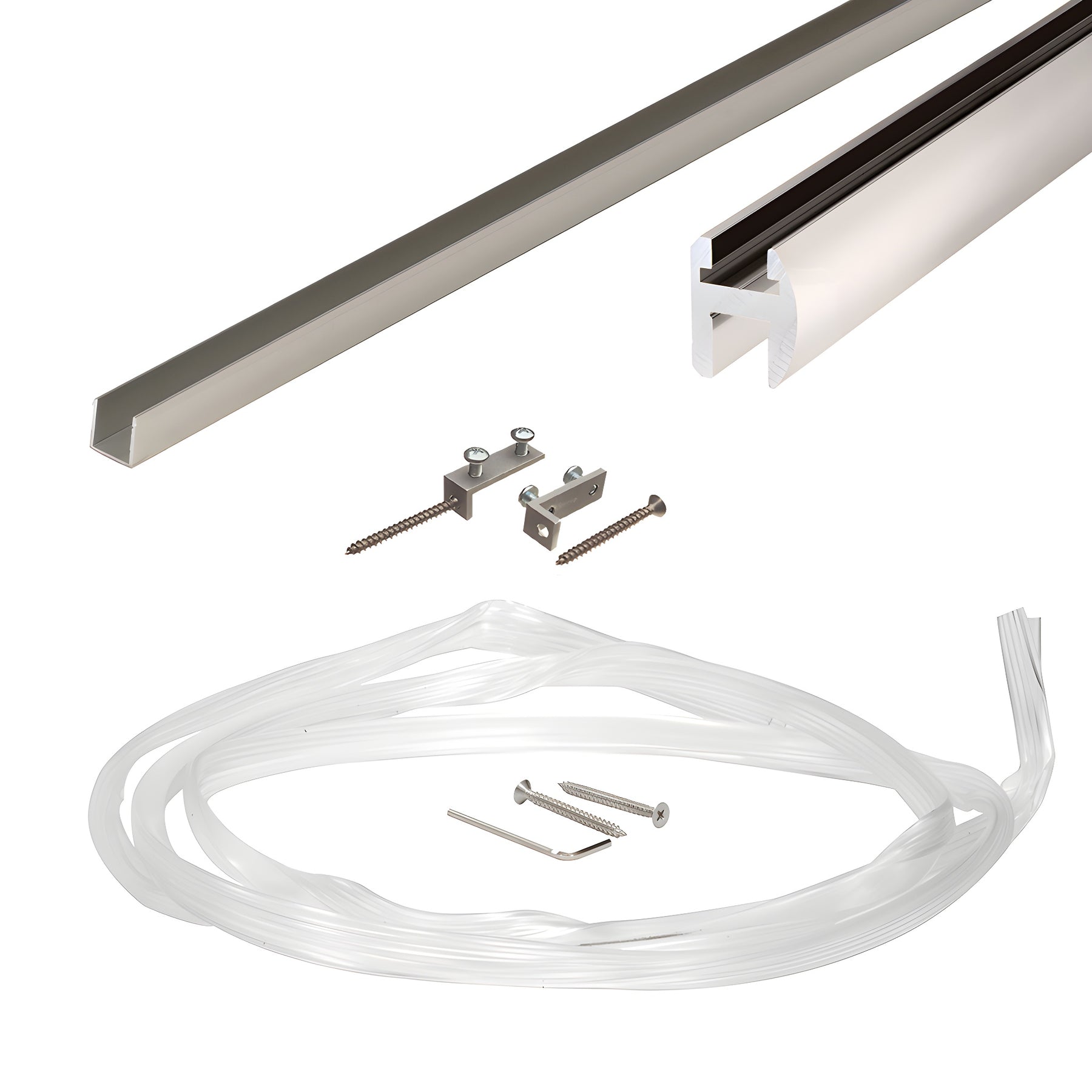

Each Deluxe Header Kit contains:

• Header extrusion — choose 66" (1.67 m), 95" (2.41 m) or 144" (3.65 m)
• 36" (0.91 m) snap-in filler for door pocket
• Vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass
• Pack of BWB2 brass wall mounting brackets (2 per pack)

Note: For 1/4" (6 mm) glass, order Cat. No. HV140 clear vinyl separately.

Ideal for frameless glass door header support and retrofit installations—order the CRL Deluxe Header Kit (SKU SDH980PN)
