CRL 95 in Satin Anodized Deluxe Shower Door Header Kit

• For 5/16", 3/8", and 1/2" (8, 10, and 12 mm) glass

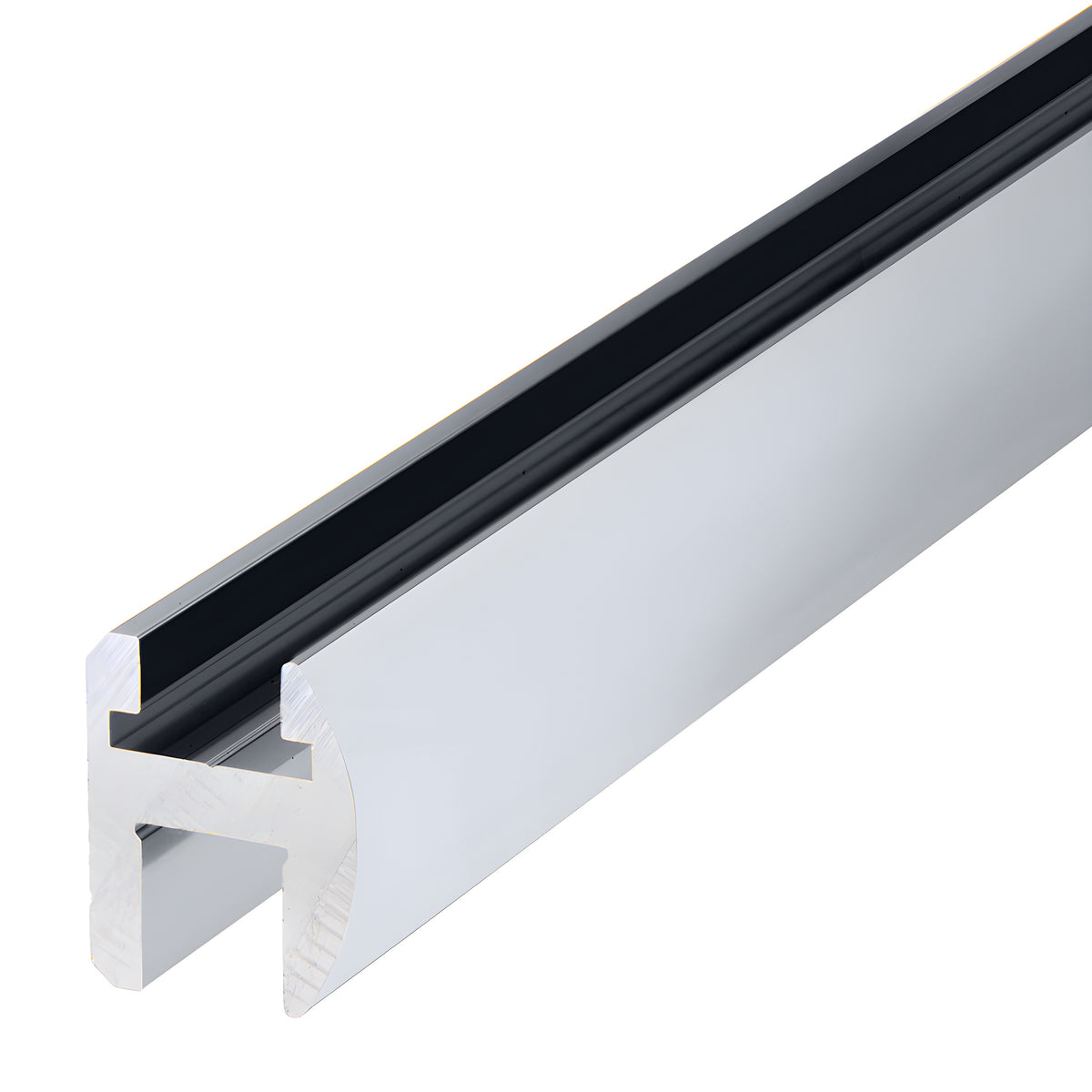

• One 66" (1.67 m), 95" (2.41 m) or 144" (3.66 m) piece of aluminum header extrusion
• One 36" (914 mm) piece of aluminum snap-in filler for door pocket
• One pack of two BWB2 brass wall mounting brackets
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (not required for 1/2" (12 mm) glass)

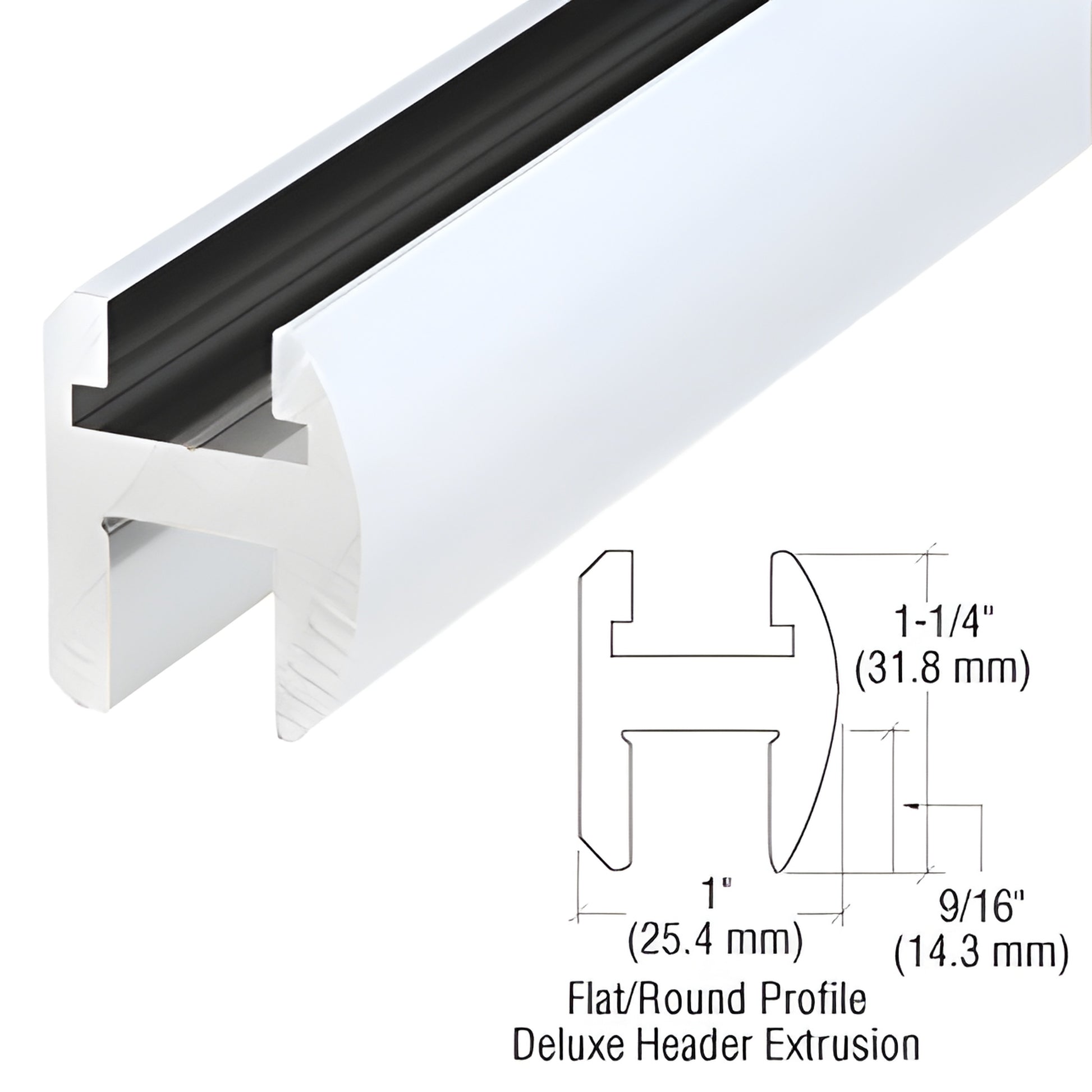

CRL Deluxe Header Kit (SKU: SDH980A) provides structural support and improved safety for glass panels that do not reach the ceiling. Designed for in-house fabrication, this deluxe aluminum header kit is available in 66", 95", or 144" lengths and features a narrow 1-1/4" (32 mm) face to minimize visible sight lines—ideal for frameless shower doors and glass partition installations.

Header is constructed of durable 6063-T5 aluminum alloy. Brass wall brackets (BWB2) are included. 90° and 135° corners, adjustable corners, and a pivot-hinge adapter block are sold separately. A blank mounting bracket is offered for non-90° wall connections where standard brackets cannot be used.

This header kit is compatible with Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, or Shell hinges when used with top-and-bottom mount pivot hinges.

EACH DELUXE HEADER KIT CONTAINS:

• 66", 95" or 144" piece of header extrusion
• 36" snap-in filler for door pocket
• Vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass
• Pack of BWB2 brass wall mounting brackets (pack includes two brackets)

NOTE: For use with 1/4" (6 mm) glass, order Cat. No. HV140 clear vinyl separately.

Order the CRL Deluxe Header Kit (SDH980A) today to add strength and a clean sight line to your frameless glass installation.
