CRL 95 in Satin Nickel Deluxe Shower Door Header Kit

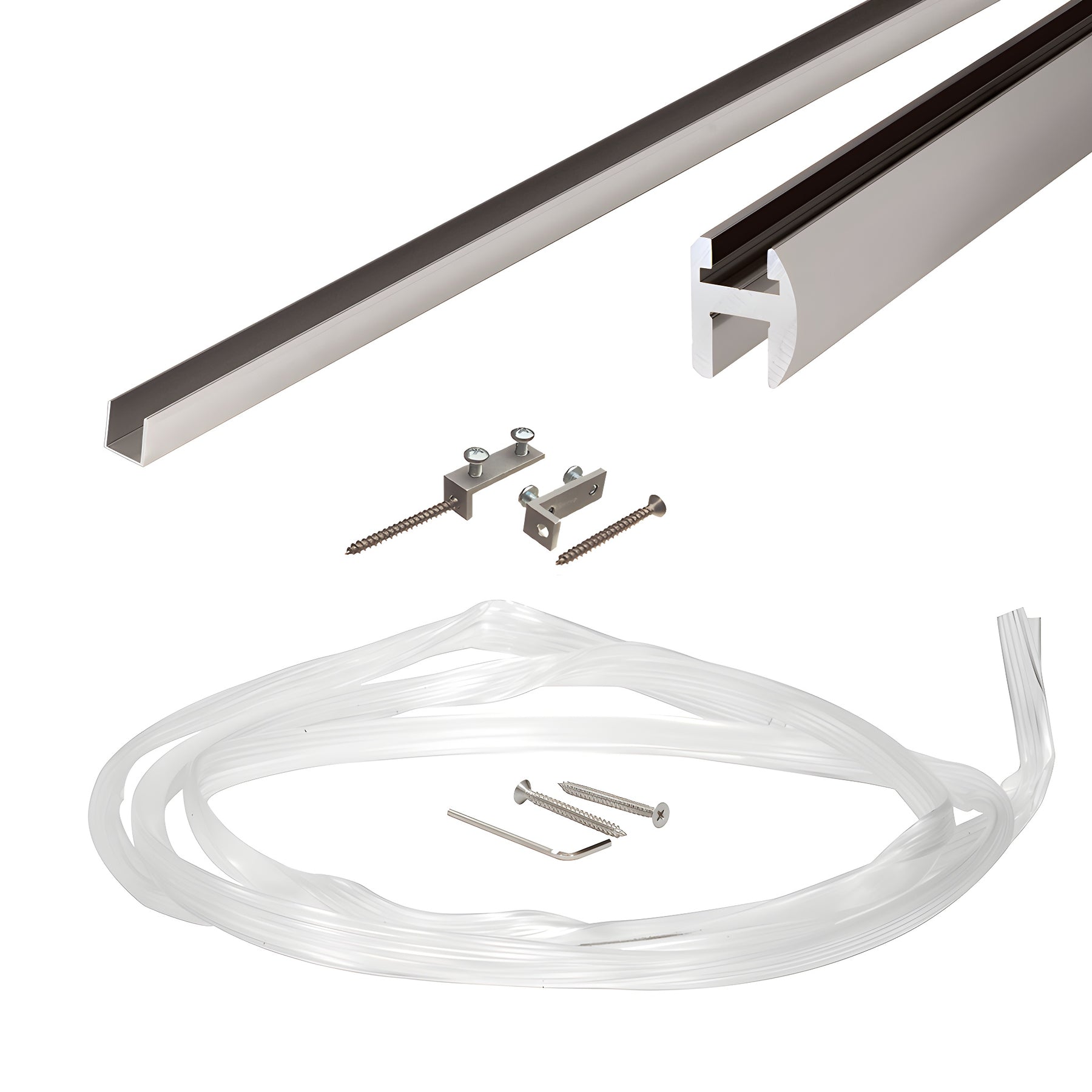

• Fits 5/16", 3/8", and 1/2" (8, 10, and 12 mm) glass panels
• One 66" (1.67 m), 95" (2.41 m) or 144" (3.66 m) piece of aluminum header extrusion
• One 36" (914 mm) piece of aluminum snap-in filler for door pocket
• One pack of two BWB2 brass wall mounting brackets
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (vinyl for 1/2" (12 mm) not required)

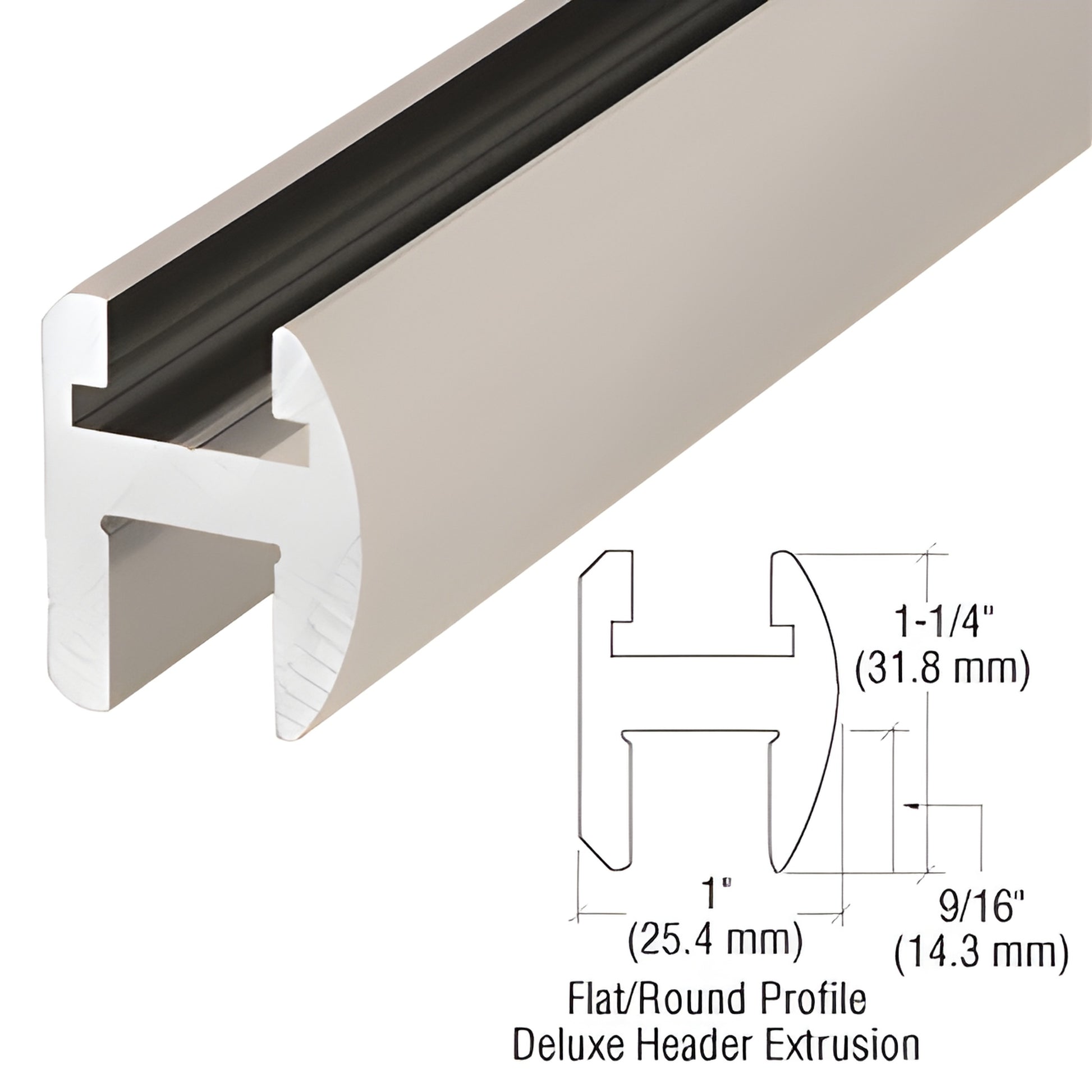

CRL Deluxe Header Kit provides rigid support and added safety for glass panels that do not reach the ceiling. Designed for in-house fabrication, the kit is offered in 66", 95" or 144" lengths and features a narrow 1-1/4" (32 mm) face to minimize visible sight lines — ideal for frameless glass shower door header applications and other architectural glass installations.

Header is constructed from 6063-T5 aluminum alloy for corrosion resistance and long service life. Brass wall brackets are included; 90° and 135° fixed corners or adjustable corner connectors are sold separately. A special adapter block is available for pivot-hinge installations. A blank mounting bracket is offered separately for non-90° wall junctions.

This kit is adaptable to Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, or Shell hinges when used with top-and-bottom mount pivot hinges.

• 66" (1.67 m), 95" (2.41 m) or 144" (3.65 m) piece of header extrusion
• 36" (0.91 m) piece of snap-in filler for door pocket
• Vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (not needed for 1/2" (12 mm) glass)
• Pack of BWB2 brass wall mounting brackets (pack includes two brackets)

Note: For use with 1/4" (6 mm) glass, order Cat. No. HV140 clear vinyl separately.

SKU: SDH980SN

Optimize your frameless glass shower or architectural glass installation with this durable aluminum header kit
