CRL 95 in Brushed Bronze Deluxe Shower Door Header Kit

• Fits 5/16", 3/8", and 1/2" (8, 10, and 12 mm) glass
• One 66" (1.67 m), 95" (2.41 m) or 144" (3.66 m) piece of aluminum header extrusion
• One 36" (914 mm) piece of aluminum snap-in filler for door pocket
• One pack of two BWB2 brass wall mounting brackets
• Clear vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (not required for 1/2" / 12 mm)

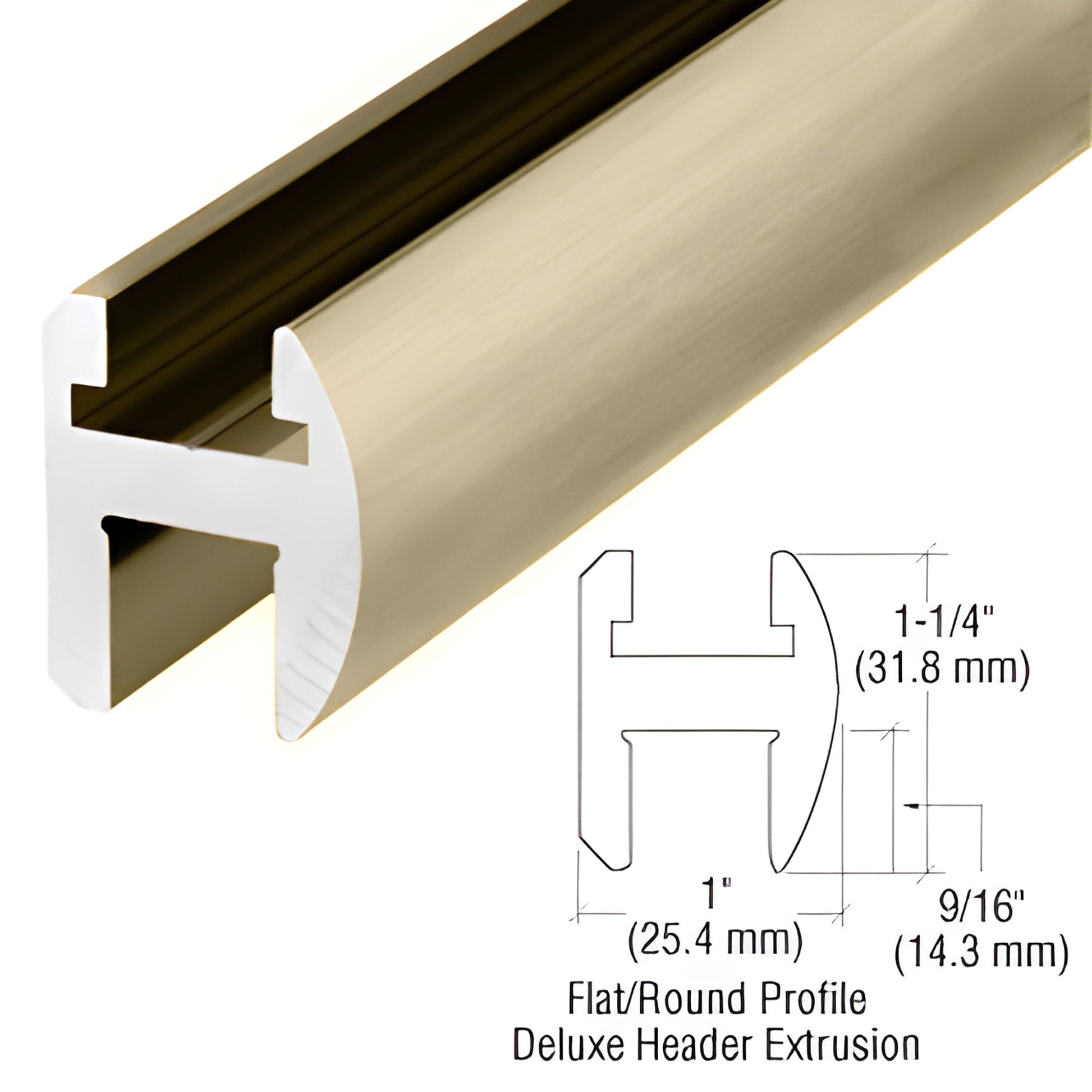

The CRL Deluxe Header Kit (SKU: SDH980BBRZ) provides secure overhead support for glass panels that do not reach the ceiling. Designed for in‑house fabrication, the kit is available in 66", 95" or 144" lengths and features a narrow 1-1/4" (32 mm) face to minimize visible sight line—ideal for frameless glass door headers and contemporary shower enclosures.

Key differentiators: header extrusion is corrosion‑resistant 6063‑T5 aluminum alloy, included BWB2 brass wall brackets for durable mounting, and snap‑in filler and clear vinyl to accommodate multiple glass thicknesses. 90° and 135° corners, adjustable corners, and a special adapter block for pivot hinge installations are sold separately. A blank mounting bracket is available when the header does not meet the wall at 90°.

This kit is compatible with Senior Prima, Senior Cardiff, Prima, Cardiff, Rondo, and Shell hinges when used with top and bottom mount pivot hinges—making it a flexible solution for custom glass door installations and glass partition headers.

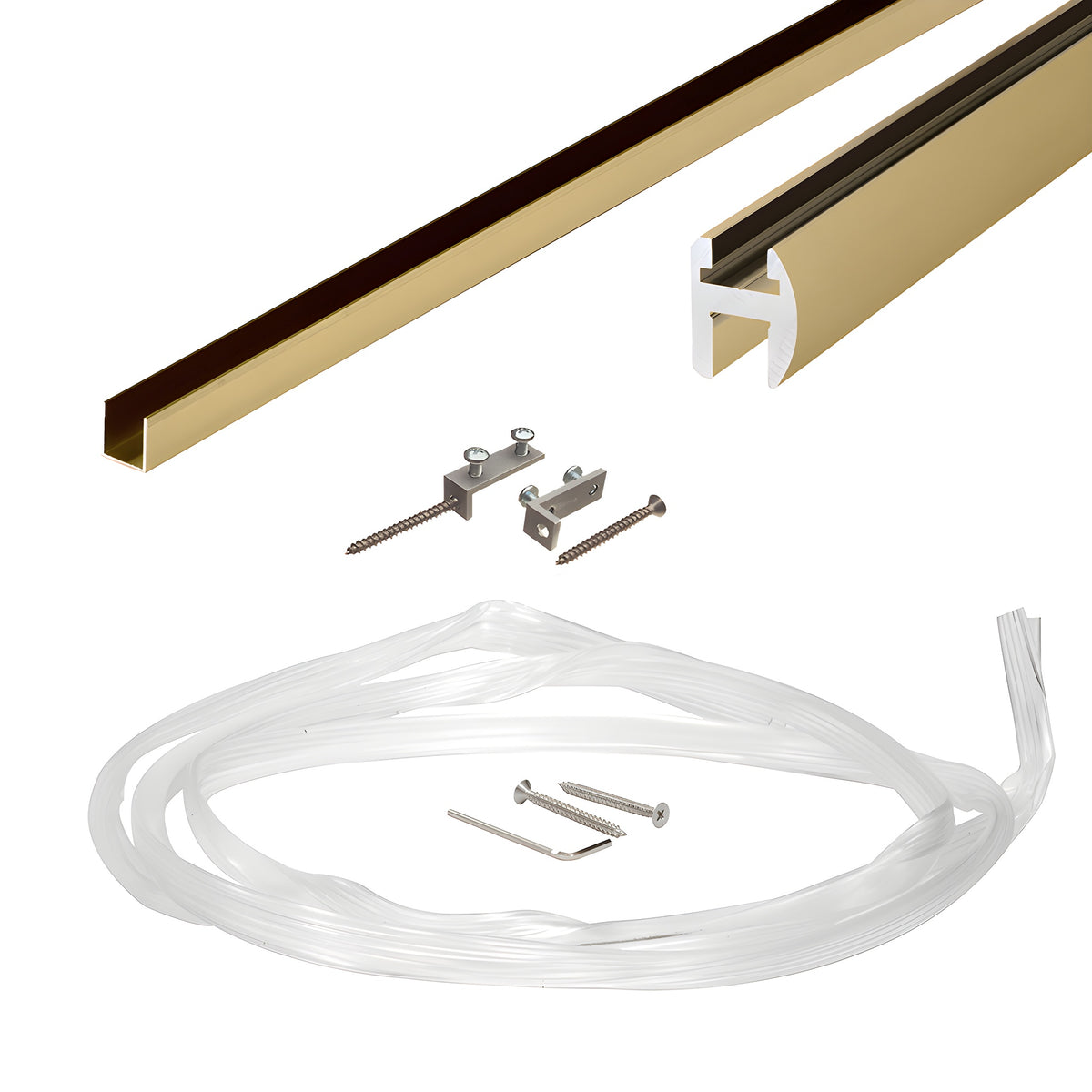

EACH DELUXE HEADER KIT CONTAINS:

• 66" (1.67 m), 95" (2.41 m) or 144" (3.65 m) piece of header extrusion
• 36" (0.91 m) piece of snap-in filler for door pocket
• Vinyl for 5/16" (8 mm) and 3/8" (10 mm) glass (not needed for 1/2" / 12 mm)
• Pack of BWB2 brass wall mounting brackets (pack includes two brackets)

NOTE: For use with 1/4" (6 mm) glass, order Cat. No. HV140 Clear Vinyl separately.
