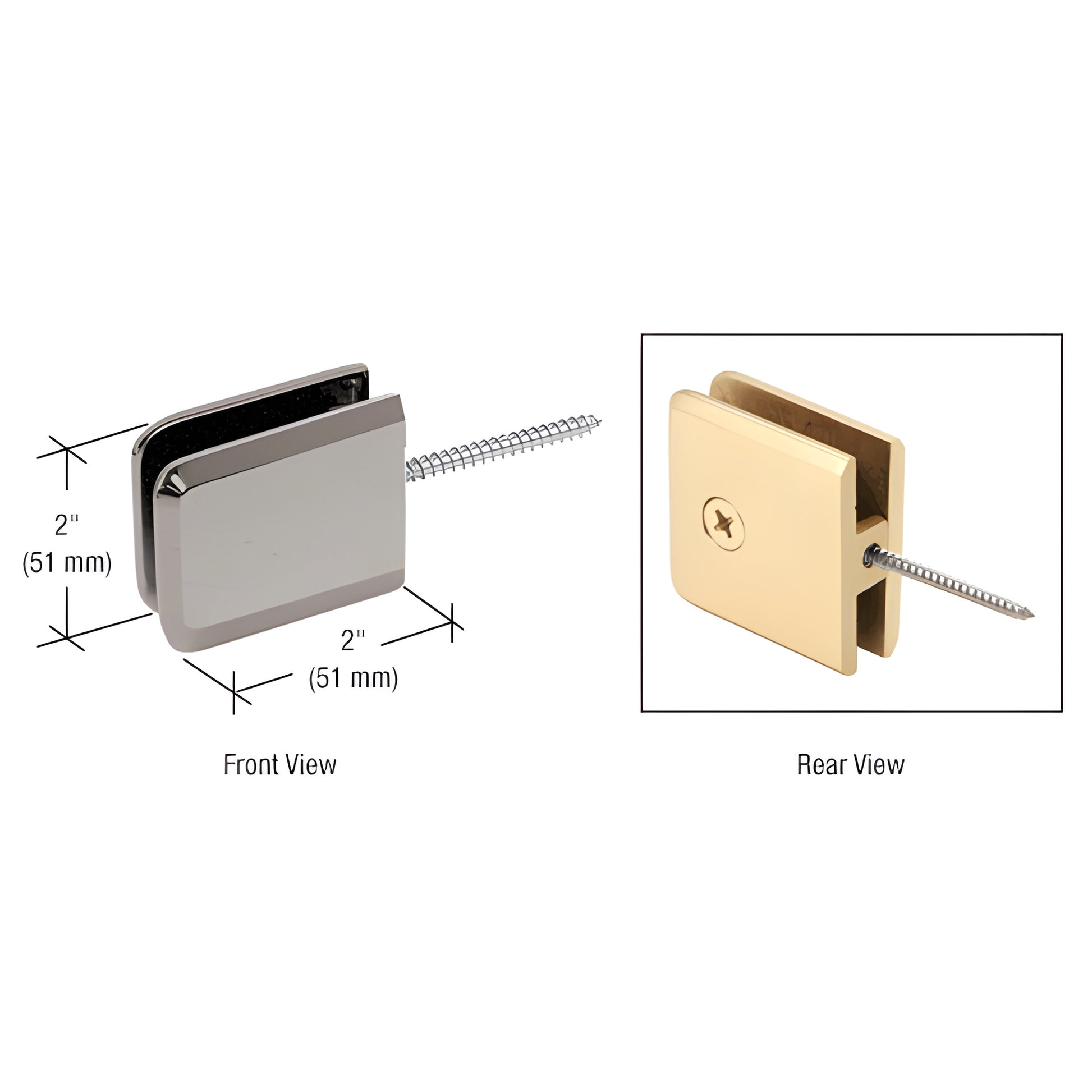

CRL Brushed Nickel Square Beveled Adjustable Transom Glass Clamp

• For 3/8" to 1/2" (10 to 12 mm) thick glass
• Use monolithic tempered glass
• Glass transom swivels to allow release of steam
• Wall-mount and 180° models available
• Solid brass material

CRL Beveled Wall Mount Movable Transom Clamps (SKU: BGC186BN) are precision-crafted movable transom clamps designed to rotate a transom away from a wall for ventilation or access. Ideal for frameless shower transoms and glass partition installations, these beveled wall-mount clamps offer durable solid-brass construction and smooth swivel action. Center the clamp on the transom for balanced movement. Replacement parts: nylon washer Cat. No. 90295A120; gasket Cat. No. BGCU1G.


SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps—contact CRL for application guidance.

Order the BGC186BN beveled wall-mount movable transom clamp today for reliable tempered-glass transom ventilation and secure brass construction.
