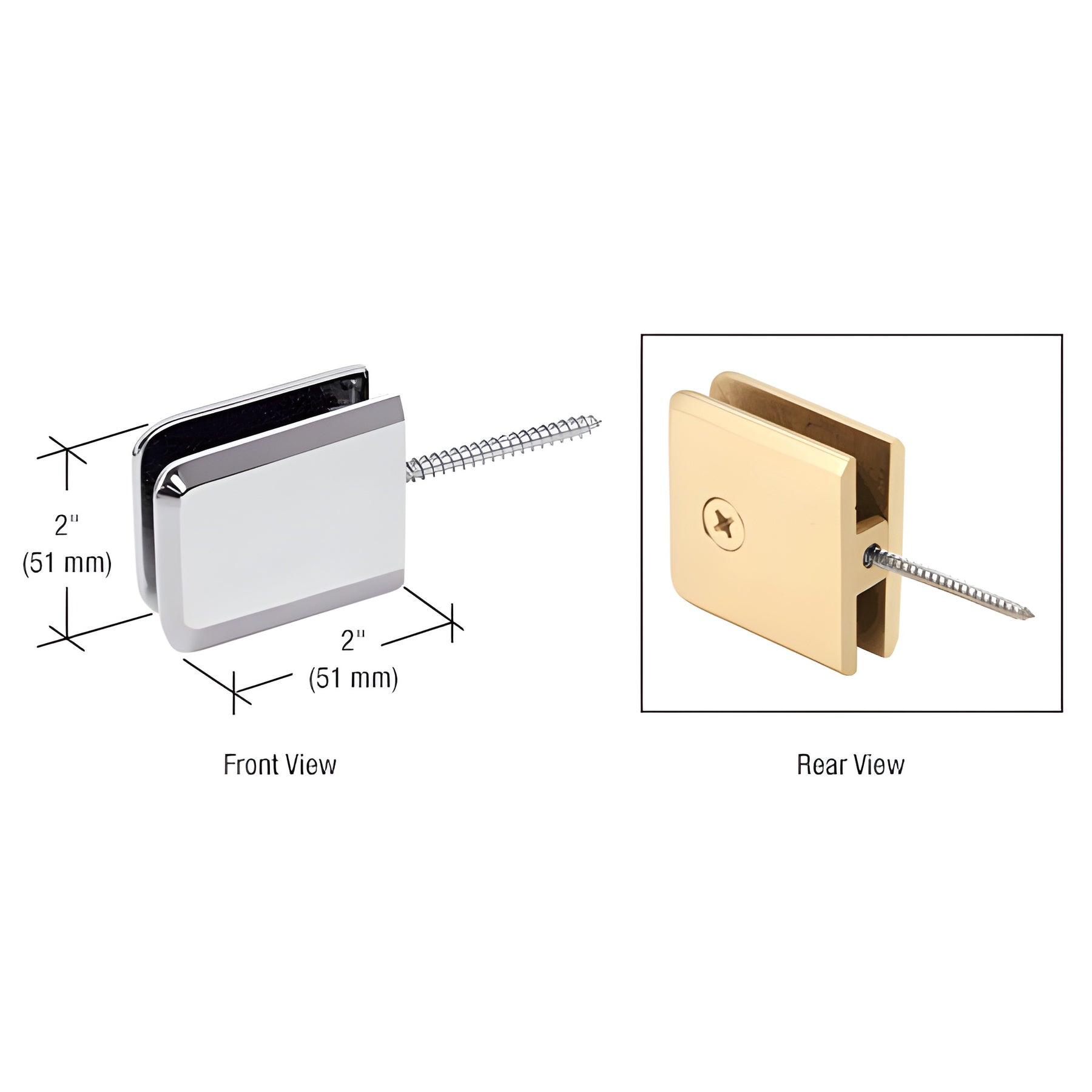

• Polished chrome beveled brass wall-mount movable transom clamp BGC186CH, front and rear views, for 3/8-1/2" glass.
1 1

CRL

CRL Chrome Square Beveled Movable Wall-Mount Transom Clamp for Glass

CRL Chrome Square Beveled Movable Wall-Mount Transom Clamp for Glass

$23.83 CAD
$23.83 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# BGC186CH
Shipping Weight: 6.88 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Design Style
Beveled
Enclosure Type
Niche, Tailor Made Solutions
Finish/Color
Polished Chrome
Glazing Thickness
3/8 in. To 1/2 in. (10 mm To 12 mm)
Material
Brass
Mounting Type
Wall / Ceiling Mount

Overview

  • For 3/8" to 1/2" (10 to 12 mm) thick glass
  • Use monolithic tempered glass
  • Glass transom swivels to allow steam release
  • Wall-mount and 180° models available
  • Solid brass construction for corrosion resistance

CRL Beveled Wall Mount Movable Transom Clamps (SKU: BGC186CH) rotate a movable transom away from a wall and can be paired with Glass-to-Glass Movable Transom Clamps for flexible installation. Clamp must be centered on the transom for balanced movement. Replacement nylon washer: Cat. No. 90295A120. Replacement gasket: Cat. No. BGCU1G.


SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel plus a notch in the transom
Includes: Gaskets

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps—call CRL for details.

Most shipping weights are approximate and have not been verified. If exact weight or shipping cost is required to complete your order, contact CRL Customer Service before submitting your order. Product images are actual product or close representations; colors may vary by monitor settings.


Call CRL Customer Service to confirm compatibility or to order replacement parts.

Specifications

Templates
BGC186 Template
