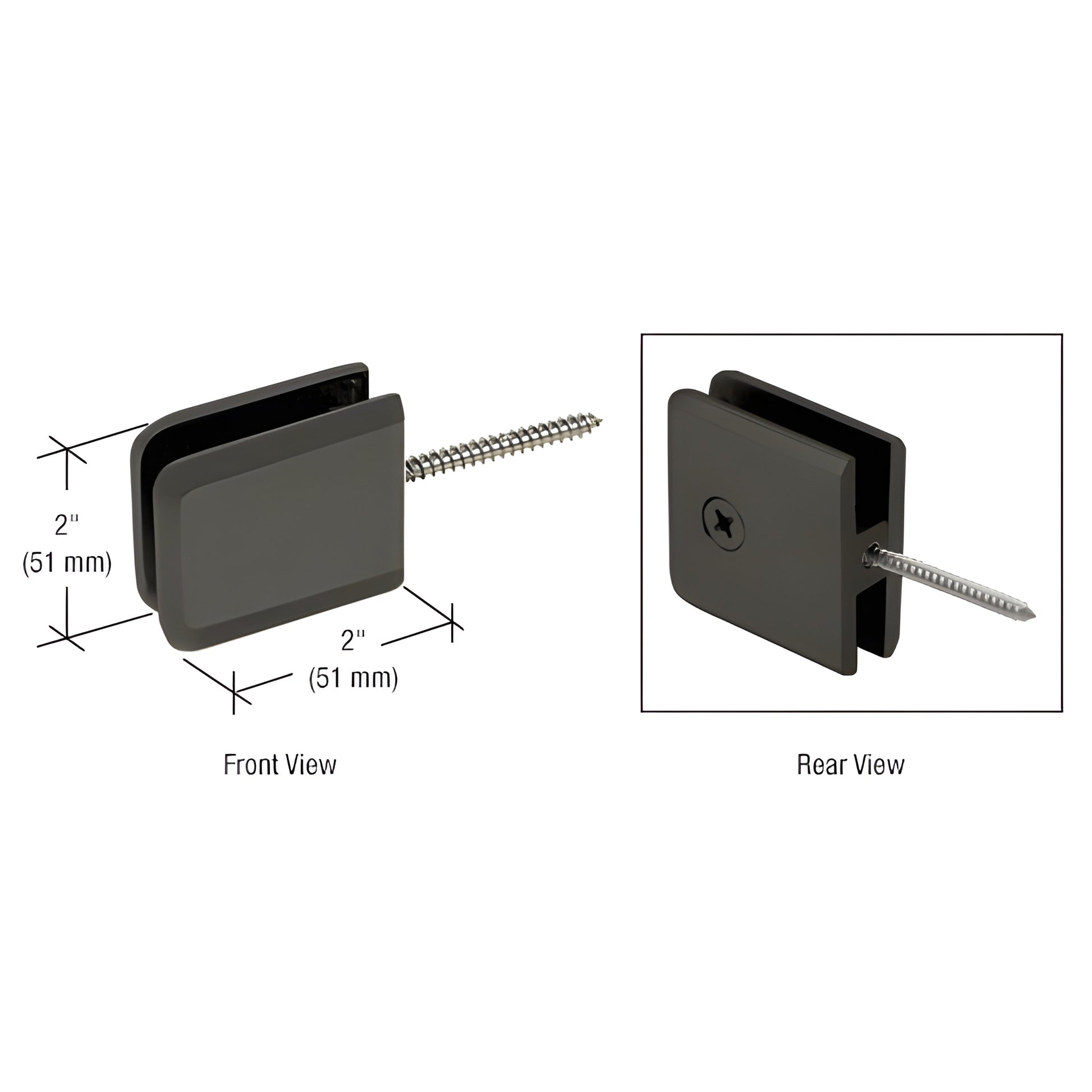

CRL Matte Black Square Beveled Wall-Mount Glass Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) Thick Glass
• Use Monolithic Tempered Glass
• Glass transom swivels to allow release of steam
• Wall mount and 180° models available
• Solid brass material

CRL Beveled Wall Mount Movable Transom Clamps are precision brass clamps engineered to rotate a movable transom away from a wall — ideal for tempered glass transoms on showers, storefronts, and interior glass partitions. Use alone or combine with CRL Glass-to-Glass Movable Transom Clamps for multi-panel systems. Center the clamp on the transom to ensure balanced movement. Replacement nylon washer: Cat. No. 90295A120. Replacement gasket: Cat. No. BGCU1G.


SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps — call for details.

SKU: BGC186MBL — beveled wall mount movable transom clamp for tempered glass applications.

Optimize your glass transom installation with the durable, corrosion-resistant BGC186MBL beveled wall mount movable transom clamp — order or contact CR
