Product Details
- For 3/8" to 1/2" (10 to 12 mm) Thick Glass
- Use Monolithic Tempered Glass
- Glass Transom Swivels to Allow Release of Steam
- Wall Mount, and 180 Degree Models Available
- Solid Brass Material

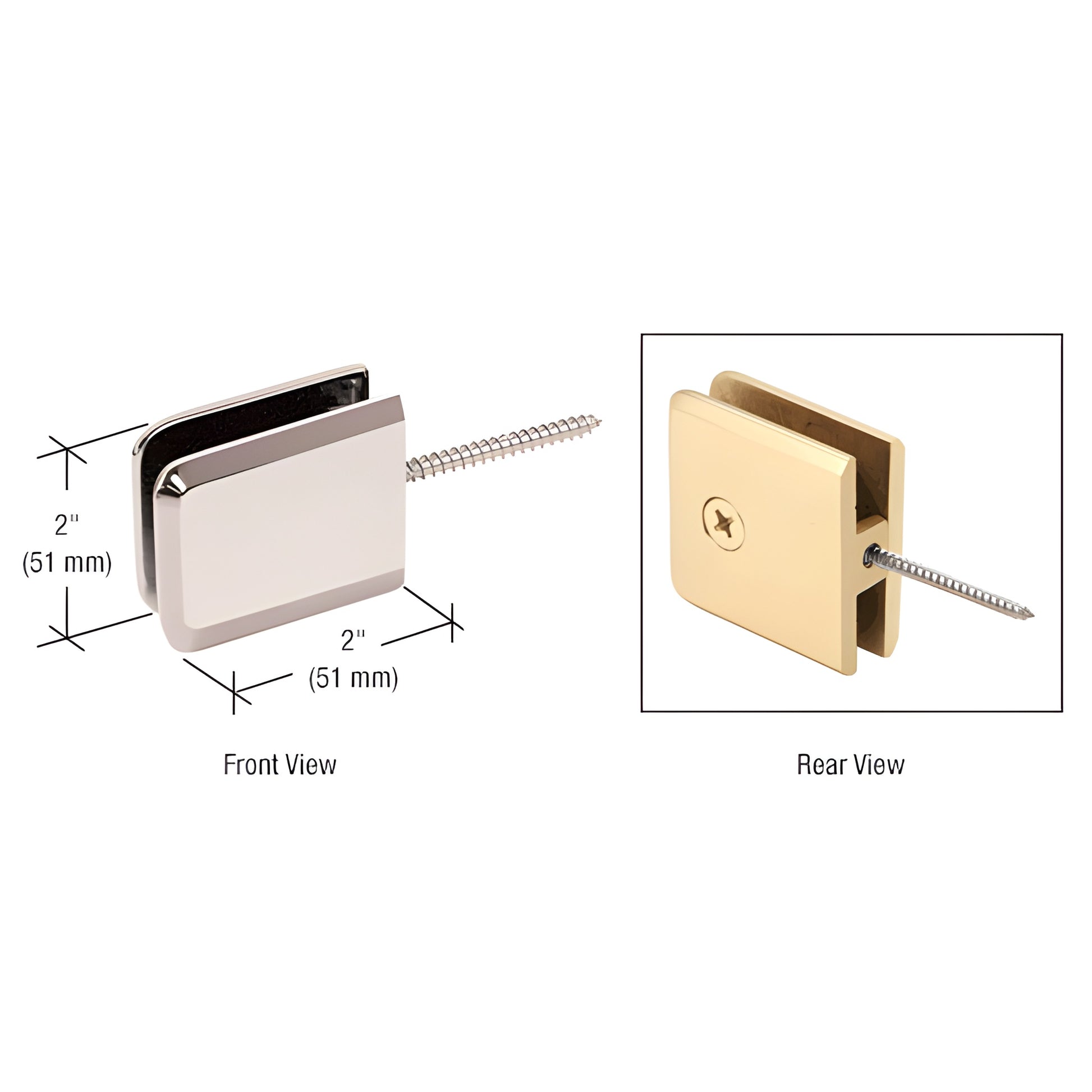

CRL Beveled Wall Mount Movable Transom Clamps are designed to rotate a movable transom off a wall. They can also be used in combination with our Glass-to-Glass Movable Transom Clamps. Clamp must be centered on the transom to achieve balanced movement. Replacement Nylon Washer is Cat. No. 90295A120. Replacement Gasket is Cat. No. BGCU1G.
SPECIFICATIONS:
Materials: Solid Brass
Glass Thickness Range: 3/8" to 1/2" (3 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 Require 3/4" (19 mm) Holes; BGC188 Requires a 3/4" (19 mm) Hole in the Fixed Panel and a Notch in the Transom
Includes: Gaskets
NOTE: Maximum transom size is 16" x 30" (406 x 762 mm) wide. Larger transoms require the use of pivot hinges used as transom clamps. Call for details.
