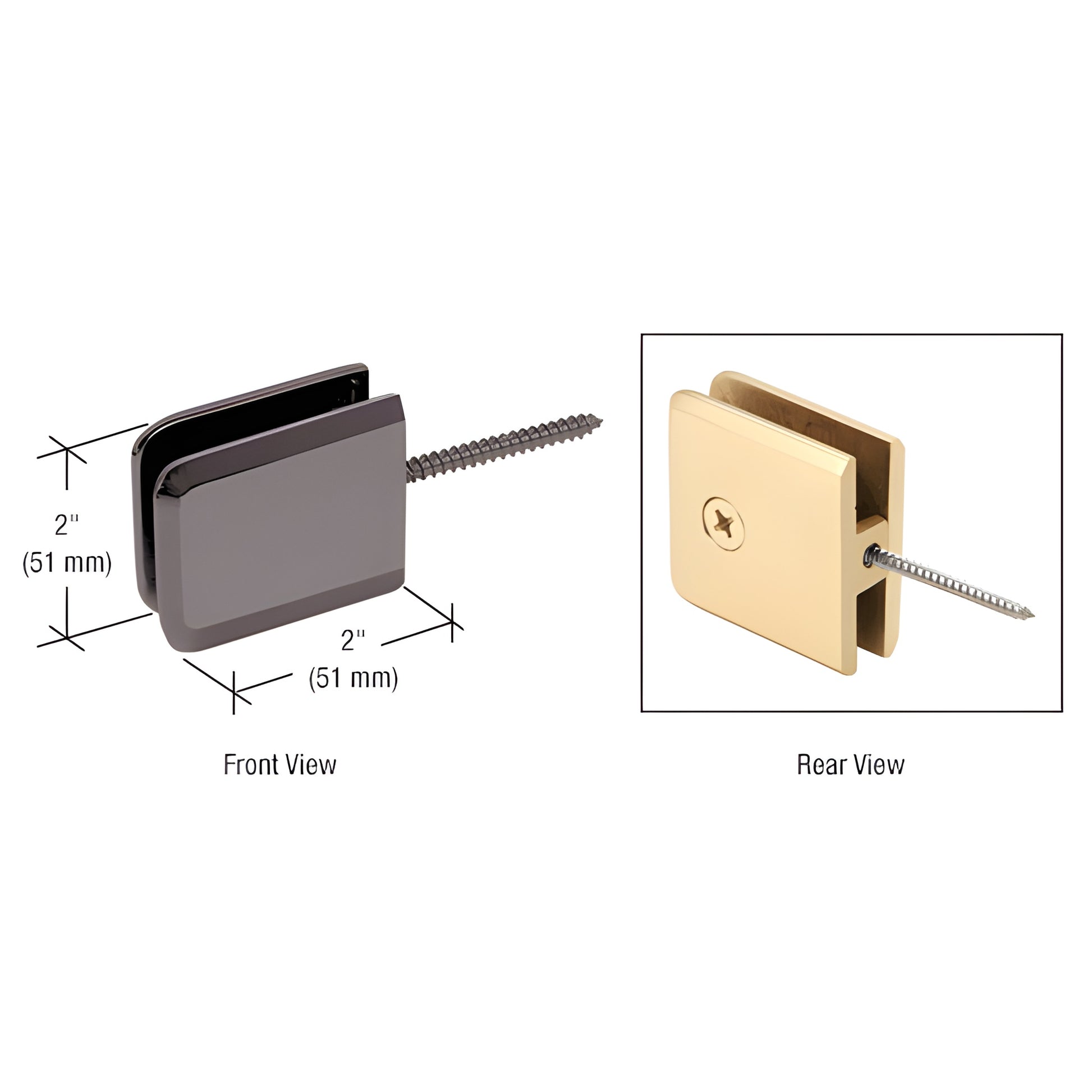

CRL Oil Rubbed Bronze Wall-Mount Movable Square Beveled Transom Clamp

• For 3/8" to 1/2" (10 to 12 mm) thick glass
• Use monolithic tempered glass
• Glass transom swivels to allow steam release
• Wall mount and 180° models available
• Solid brass material

CRL Beveled Wall Mount Movable Transom Clamps are precision solid-brass clamps designed to rotate a movable transom away from a wall. Ideal for shower and partition applications, these beveled wall-mount transom clamps work with monolithic tempered glass and can be paired with Glass-to-Glass Movable Transom Clamps for wider configurations. Center the clamp on the transom for balanced movement. Replacement nylon washer: Cat. No. 90295A120. Replacement gasket: Cat. No. BGCU1G.


SPECIFICATIONS:
Materials: Solid brass
Glass Thickness Range: 3/8" to 1/2" (10 to 12 mm)
Glass Fabrication Required: BGC180, BGC135, BGC90, and BGC186 require 3/4" (19 mm) holes; BGC188 requires a 3/4" (19 mm) hole in the fixed panel and a notch in the transom
Includes: Gaskets

NOTE: Maximum transom size is 16" x 30" (406 x 762 mm). Larger transoms require pivot hinges used as transom clamps—call for details.

SKU: BGC1860RB
