CRL Z-Series Gold-Plated Round Flat-Base Zinc Glass Clamp 1/4" 5/16"

• For 1/4" and 5/16" (6 and 8 mm) glass
• Replacement gaskets available: Cat. No. Z14RG
• Ideal for mezzanines, partitions, railings and windbreaks
• Use monolithic tempered glass
• Steel pin included for additional glass support
• Custom painted finishes available upon request

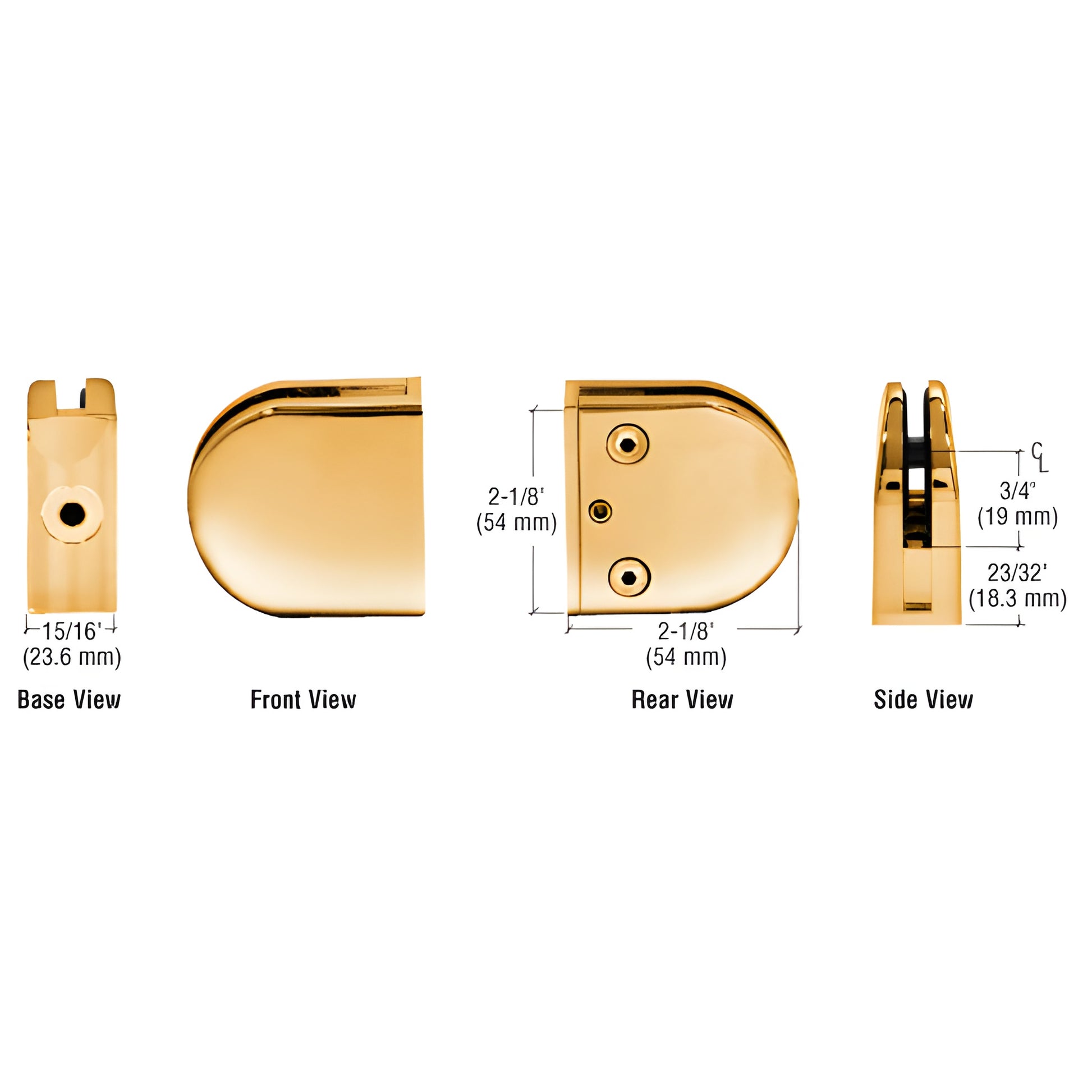

CRL Z-Series Round Type Radius Base Glass Clamp (SKU: Z406GP) — designed for 1/4" to 1/2" (6 to 12 mm) glass. Available in zinc or stainless steel, these round radius base clamps are a durable, low-profile solution for partitions, railings, windbreaks and other architectural glass applications.

Installation notes: For securing the Z-clamp to thin-wall tubing (< 1/8”), use CRL ZB0LT socket head cap bolt and ZRNUT rivet-nut. Drill a 17/32” (13.5 mm) hole and install the rivet-nut with the 34604 heavy-duty thread insert tool and 34618 5/16” mandrel and nosepiece. NOTE: a 1/2" (12 mm) hole is required if using the included steel pin for additional glass support.

Specifications

• Glass thickness: 1/4" to 1/2" (6–12 mm)
• Base design: Flat, for use with square tubing or other flat surfaces
• Material: Zinc-constructed or stainless steel. Stainless or powder-painted zinc recommended for exterior durability
• Glass fabrication holes:
  • For 1/4" (6 mm), 5/16" (8 mm) and 3/8" (10 mm): 1/2" (12 mm) diameter hole required if using the steel pin
  • For 1/2" (12 mm): 9/16" (14 mm) diameter hole required if using the steel pin
• Includes: Rubber gaskets, steel pin (optional) with grommet
• Replacement hardware: CRL ZCS5X15BR replacement screws

Product warning: For interior installations where the glass is not supported from the bottom edge, CRL recommends pinning each glass panel to prevent slippage. Rubber gaskets and steel pins are provided with each clamp.
