Product Details
- Interchangeable with All Jackson® Style Overhead Concealed Door Closers
- Extended 3/4" (19 mm) Long Spindle for Use with Patch Fittings and Door Rail Hardware
- New Adjustable Models
- UL Listed
- Conveniently Packaged with Templates and Instructions

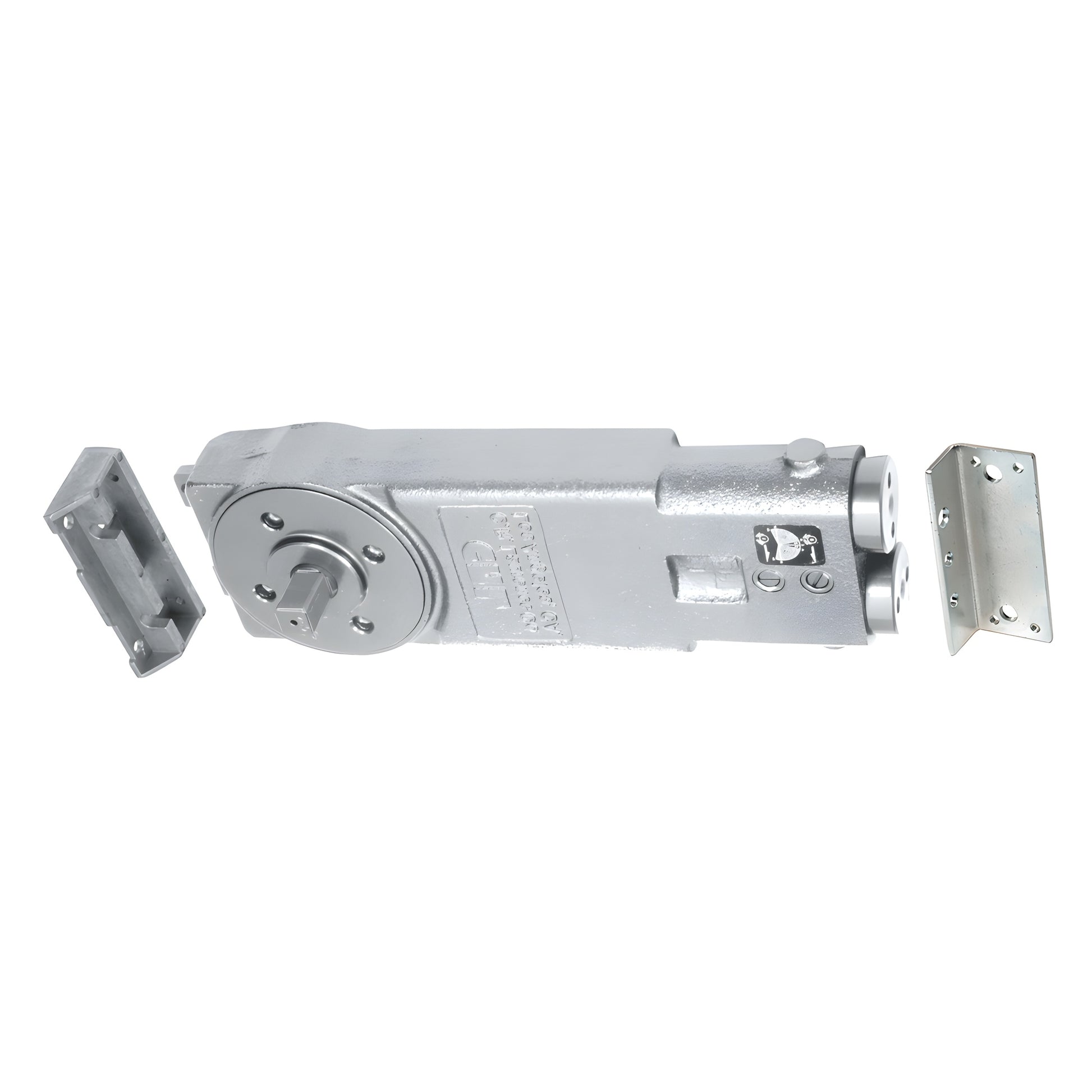

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails have a longer spindle approximately 3/4" (19 mm), the preferred length when used in conjunction with Patch Hardware Fittings. The closer has dual action valves for closing operation (one valve for closing, one valve for latching). 90 degree and 105 degree Hold Open and No Hold Open models are available. Interchangeable with International, Jackson® and similar brands of Overhead Concealed Closers. Mounting Clips and instructions are included with each Door Closer Body.

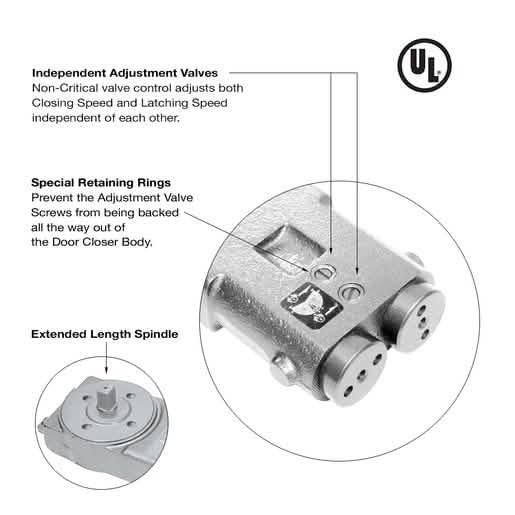

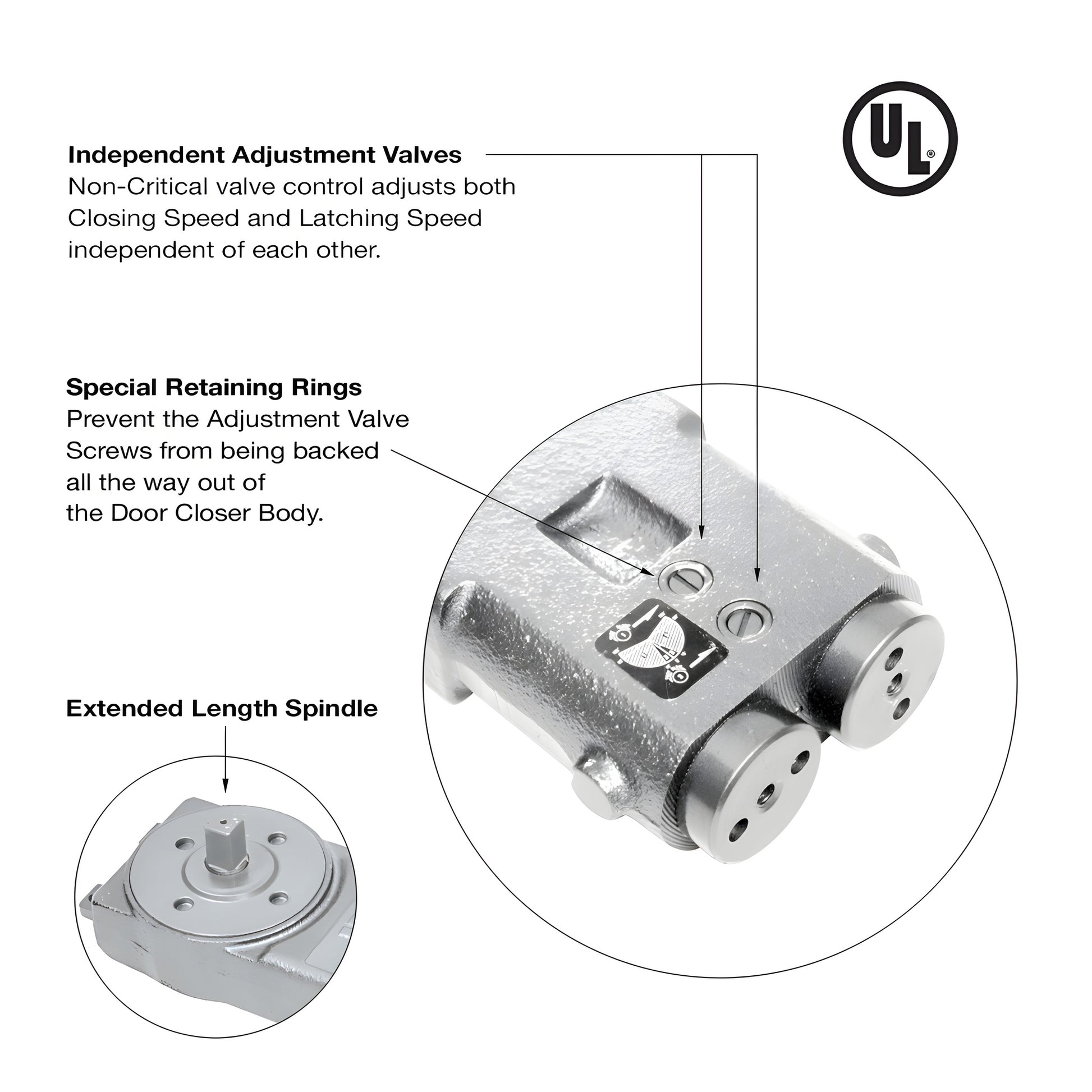

Extended Length Spindle 3/4" (19 mm) Length Spindle for use with Patch Fittings and Door Rail Hardware or when extra reach is needed.
Independent Adjustment Valves Non-Critical valve control adjusts both Closing Speed and Latching Speed independent of each other.
Special Retaining Rings Prevent the Adjustment Valve Screws from being backed all the way out of the Door Closer Body.
Weight and Size Limitations
Door Weight: 200 Lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)
