CRL Heavy-Duty 90° No-Hold-Open Concealed Overhead Closer 3/4" Spindle

• Interchangeable with All Jackson®-style overhead concealed door closers and similar international brands
• Extended 3/4" (19 mm) long spindle for use with patch fittings and door rail hardware
• Available in 90° and 105° hold-open or no hold-open models
• UL Listed
• Includes mounting clips, templates, and instructions for easy installation

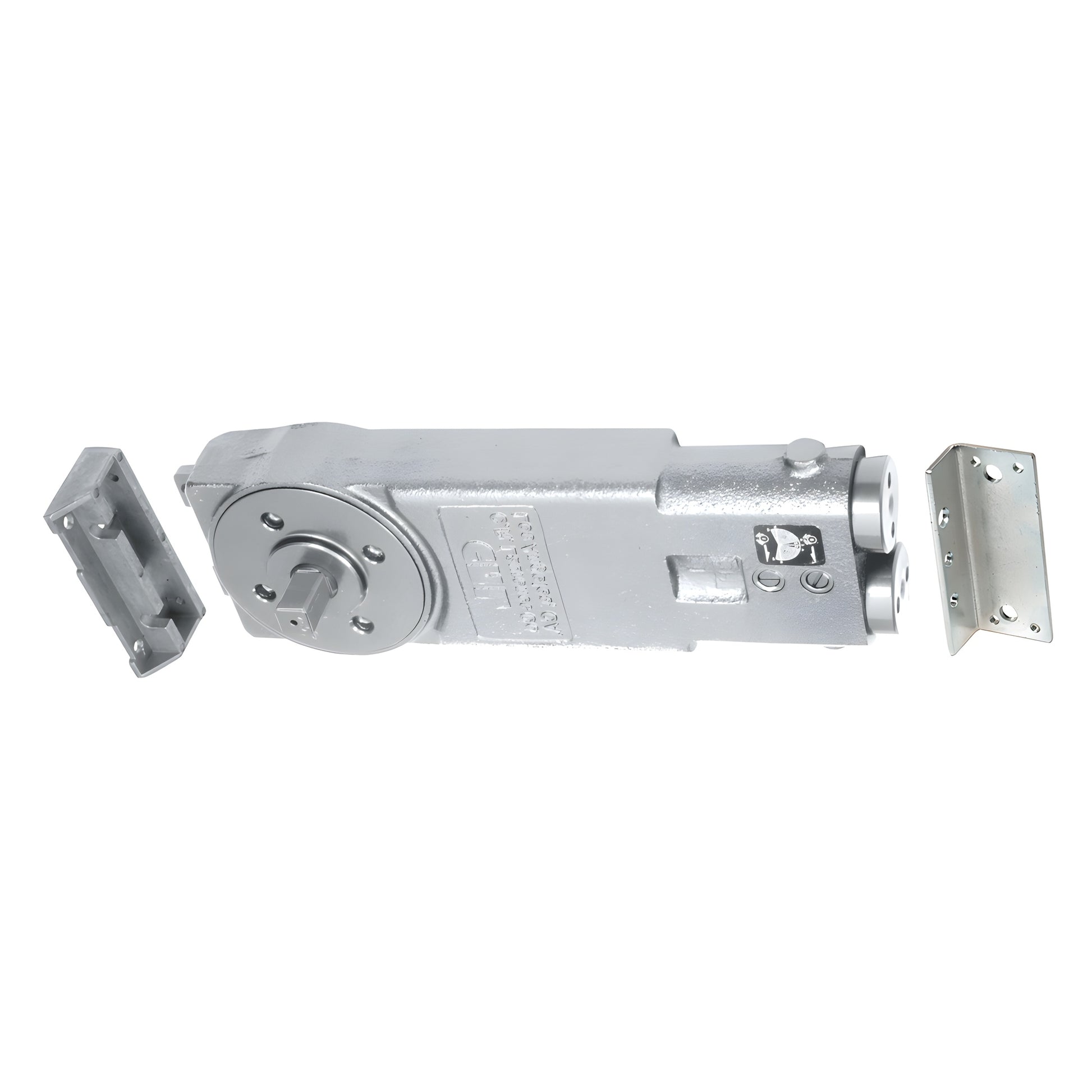

CRL Overhead Concealed Closer for Patch Fittings and Door Rails — SKU: CRL9262

This overhead concealed door closer is designed specifically for patch fittings and door rail hardware. The extended 3/4" (19 mm) spindle provides extra reach for patch hardware installations. Dual action, independent adjustment valves control closing speed and latching speed separately for precise performance. Special retaining rings prevent adjustment valve screws from backing out of the closer body. Mounting clips and installation templates are included for faster, reliable setup.

Extended Length Spindle
3/4" (19 mm) spindle length — ideal for patch fittings, door rails, and applications needing additional reach.

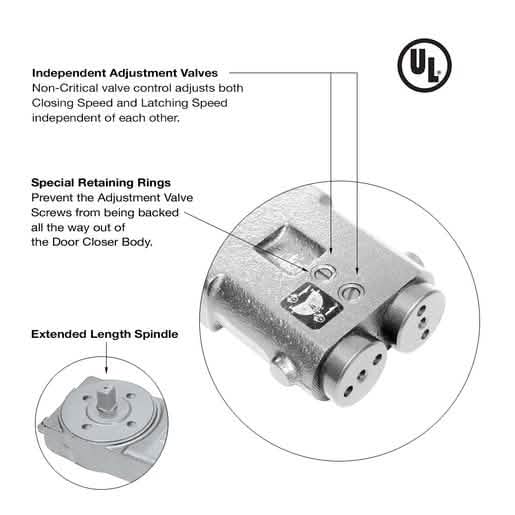

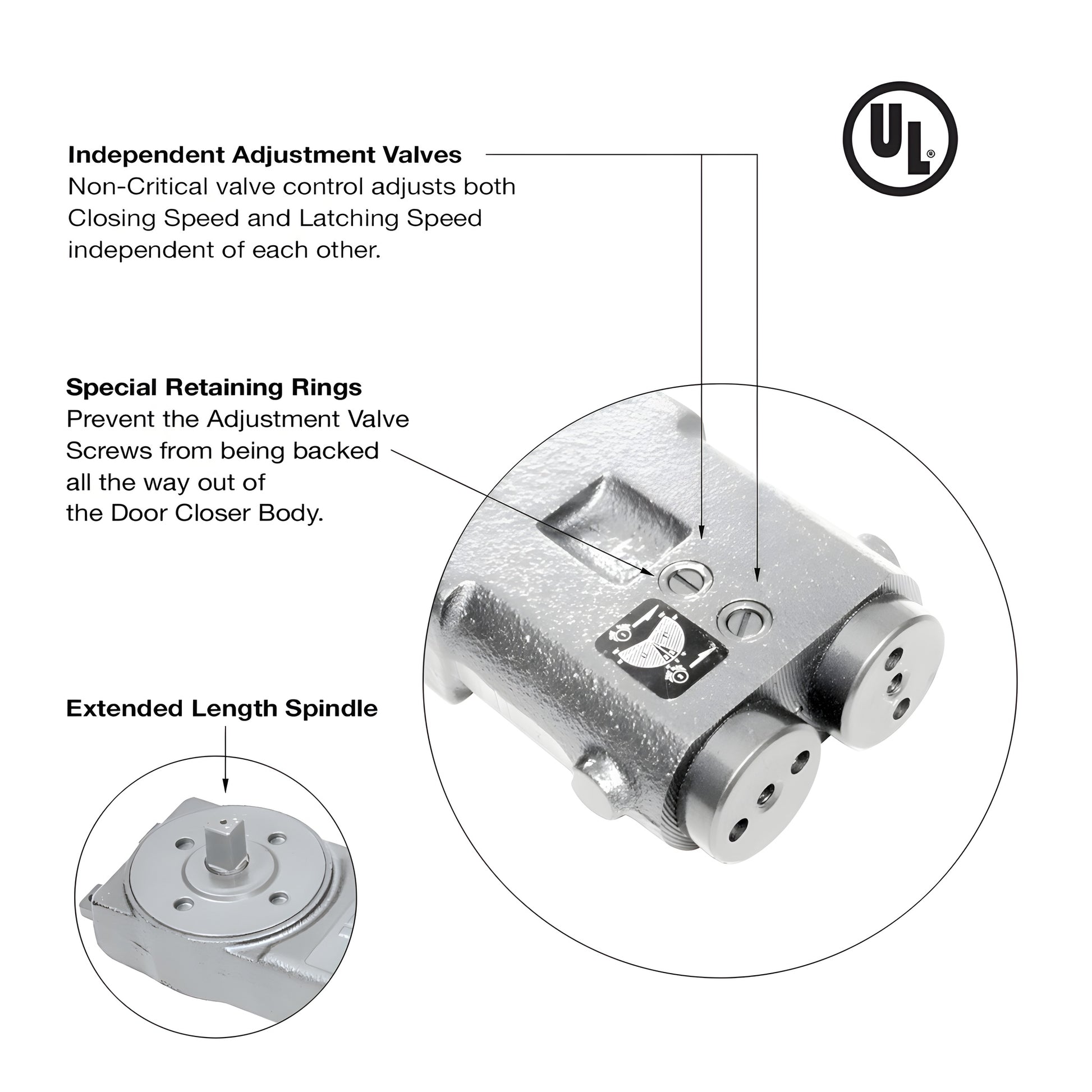

Independent Adjustment Valves
Non-critical valves let you fine-tune closing speed and latching speed independently for smoother door operation.

Special Retaining Rings
Prevent valve screws from being fully backed out of the closer body, improving durability and serviceability.

Weight and Size Limitations
Door Weight: 200 lbs. (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
All Doors Height: 96" (2.44 m)

Order CRL9262 overhead concealed door closer with extended spindle today to ensure compatibility with patch fittings and door rail hardware.
