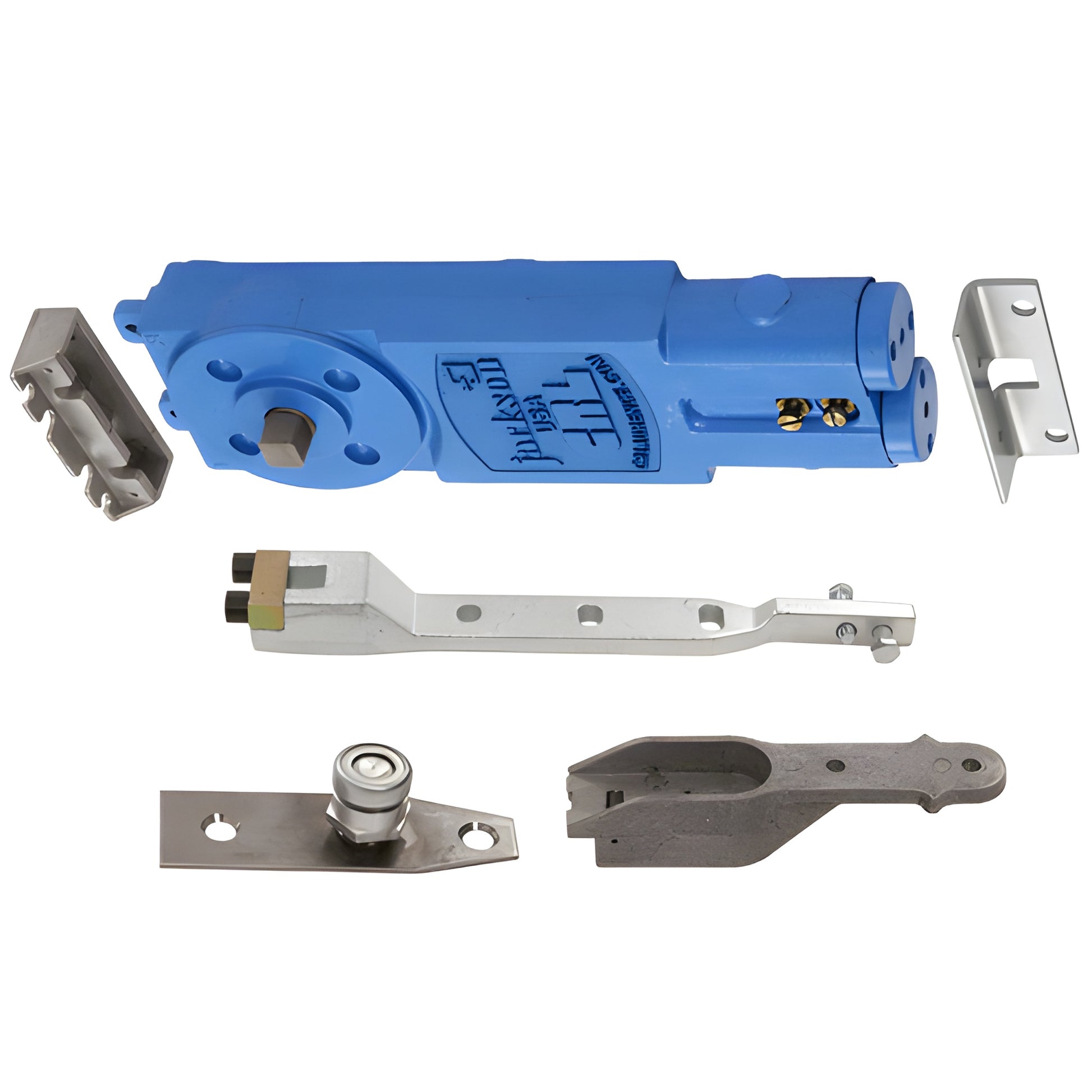

• CRL Jackson overhead concealed door closer kit (SKU 21101AP18) blue body with arm, pivots and brackets
1 2

CRL

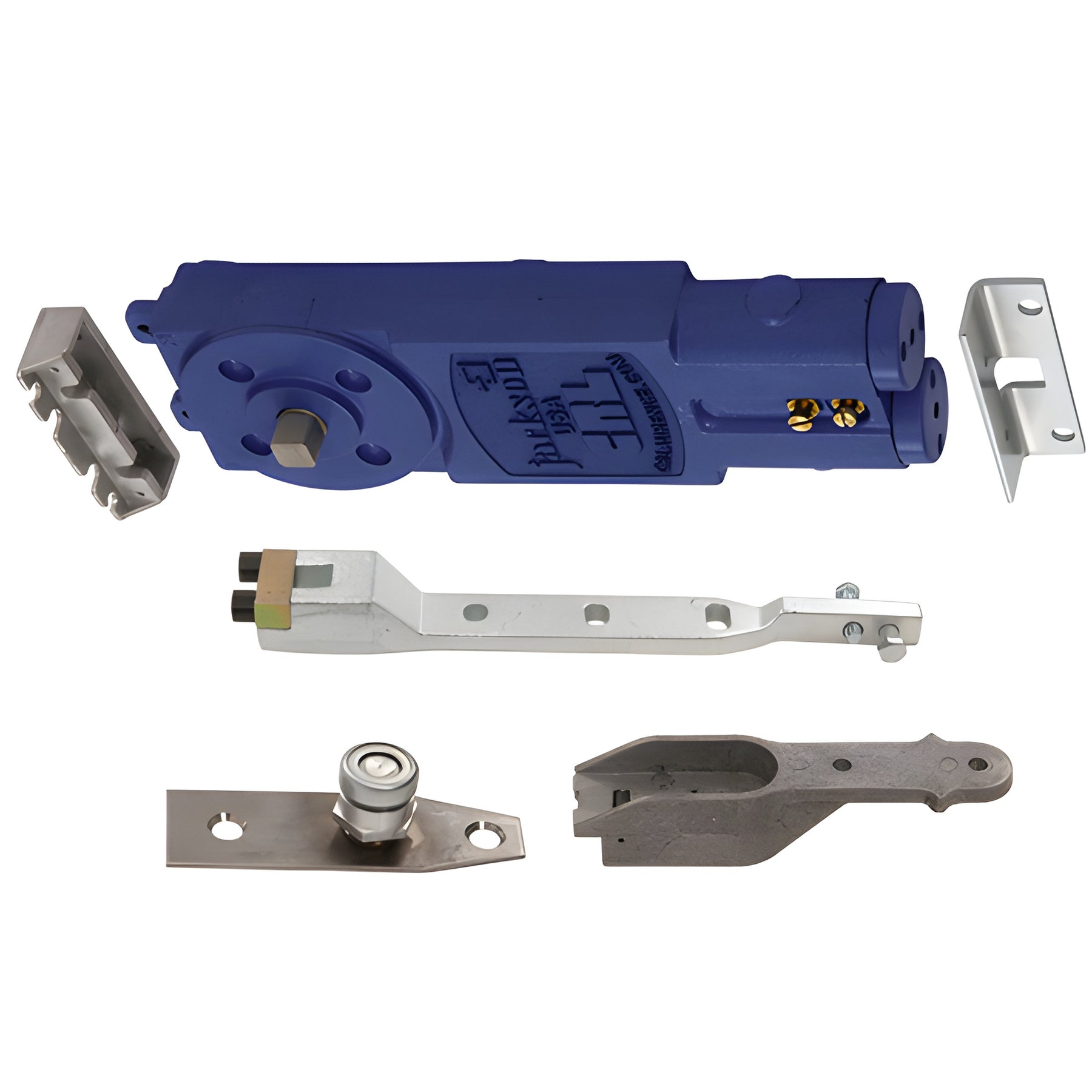

CRL Jackson® Adjustable 105° Hold-Open Concealed Closer w/ AP 7/8" rail

CRL Jackson® Adjustable 105° Hold-Open Concealed Closer w/ AP 7/8" rail

$424.62 CAD
$424.62 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# 21101AP18
Shipping Weight: 11.0 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-9/16
Bottom Pivot Type
Floor Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105°
Includes
20101M18, 20219, 202000, 201060
Material
Aluminum
Maximum Door Weight
250
Package Type
End Load AP
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8770A, 21101A18
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes

Overview

  • Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
  • Floor-mounted pivot for 1-9/16" (40 mm) deep bottom rail
  • 5 Year Limited Warranty
  • UL Listed

CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer (SKU: 21101AP18) — a versatile, adjustable overhead concealed door closer designed for A.D.A. barrier-free applications. Adjustable from Size 1 (Barrier-Free) through Size 4 (Regular), it lets you set spring power to meet A.D.A. opening force requirements while providing reliable door control across a wide range of door types and sizes. Ideal when you need an adjustable spring power overhead concealed door closer for ADA-compliant entrances.

A.D.A. NOTE: Although the adjustable spring power closer can be set to compensate for site conditions, adequate closing force might not be obtained while complying with A.D.A. opening force requirements.

NOTE: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of maximum allowable door swing.

Product Warning: Closers set to comply with A.D.A. specified opening forces might not provide adequate spring power to control and close the door due to varying site conditions and door size.

Most shipping weights are approximate and unverified. If exact weight is required to determine shipping costs, contact CRL Customer Service before submitting your order. Product images are actual or close representations; colors may vary by monitor.

Choose the CRL Jackson adjustable concealed door closer for flexible ADA-compliant door control — order SKU 21101AP18 today.
