CRL Jackson® 90° Overhead Concealed Closer for 1" Top Rail
CRL Jackson® 90° Overhead Concealed Closer for 1" Top Rail
Regular price
$414.67 CAD
Regular price
Sale price
$414.67 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21101A19
Shipping Weight: 11.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.12 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Threshold Mount Pivot
Brand
Jackson
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
20101M19, 20640, 202000, 20728
Material
Aluminum
Maximum Door Weight
250
No Hold Open
90°
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
ELB2, ELS1
Similar
CRL8762A
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Suitable for doors 30" to 48" (762 mm to 1.22 m) wide to meet A.D.A. opening force requirements
- Threshold-mounted pivot for 1" (25 mm) deep bottom rail
- Concealed overhead design for clean aesthetics and vandal resistance
- Adjustable spring power: Size 1 (Barrier-Free) through Size 4 (Regular) for versatile door control
- 5 Year Limited Warranty
- UL Listed

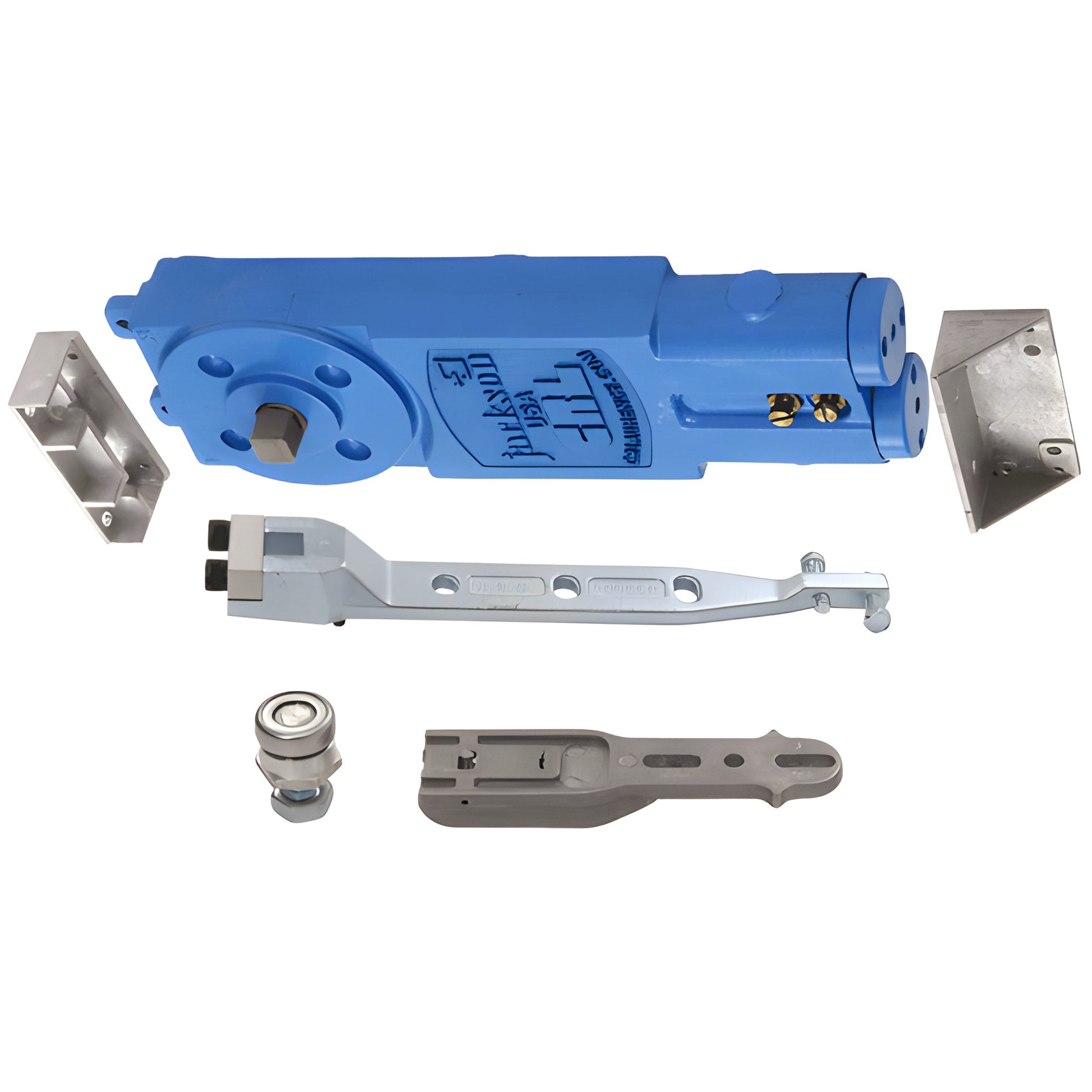

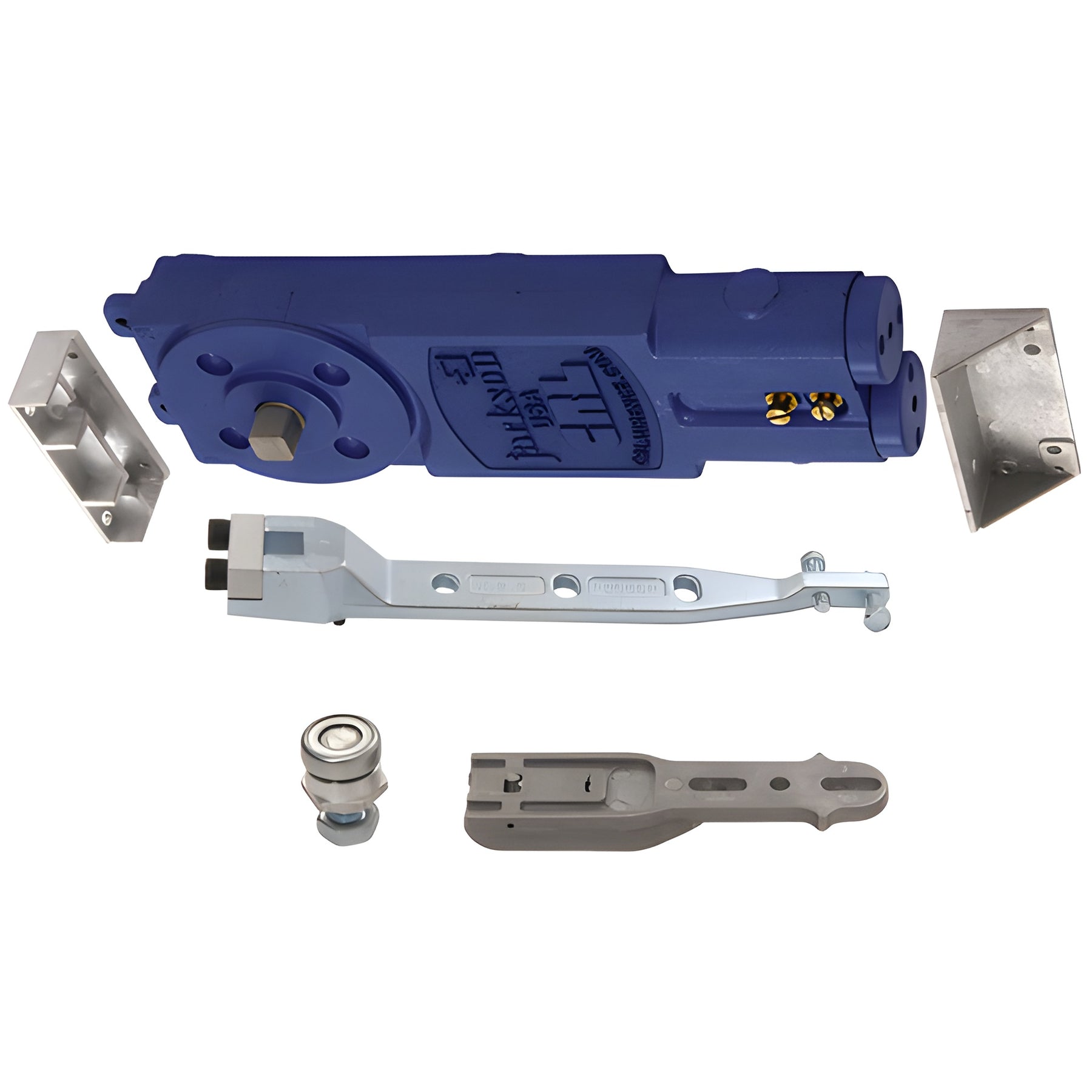

CRL Jackson® Adjustable Spring Power Overhead Concealed Door Closer — ADA-adjustable concealed door closer (SKU: 21101A19) engineered for barrier-free openings, commercial entrances, and retrofits where a low-profile, threshold-mounted pivot is required. The adjustable spring range (Size 1–4) lets you meet A.D.A. opening force limits while providing control for a wide range of door sizes and conditions, making it an ideal choice for accessibility-compliant projects and high-traffic settings.
A.D.A. NOTE: Although the closer can be adjusted for A.D.A. barrier-free opening force, site conditions and door size may prevent obtaining adequate closing force while complying with A.D.A. opening limits.
NOTE: Use an auxiliary floor or overhead door stop to prevent over-extension of the door swing and avoid damage to the closer or entryway.
Product Warning: Closers set to comply with A.D.A. opening forces might not provide sufficient spring power to control and close the door under all site conditions and door sizes.
View product details and order SKU 21101A19 — Contact CRL for specification assistance or to request exact shipping weight.
