CRL
CRL Jackson Dark Bronze Overhead Concealed Door Closer 105° Hold-Open
CRL Jackson Dark Bronze Overhead Concealed Door Closer 105° Hold-Open
Regular price
$465.79 CAD
Regular price
Sale price
$465.79 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# 21201U31318
Shipping Weight: 11.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 11.58 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Americans with Disabilities Act
Yes
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Brand
Jackson
Case Quantity
4
Closer Type
Overhead Concealed
Finish/Color
Dark Bronze
Handing
Non Handed
Hold Open
105°
Includes
20101M18, 201381, 20942313, 20368
Material
Aluminum
Maximum Door Weight
250
Package Type
Offset Arm U
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
20106313, 20117313, DCU4DUS, 20900LC313
Similar
21201S31318
Spindle
1/2
Spring Size
Adjustable
Top Rail Depth
7/8
UL Listed
Yes
Overview
- 'U' Offset Slide-Arm Hardware Package for doors with 7/8" (22.2 mm) shallow top rails
- Spring power adjustable closer for 30" to 42" (762 mm to 1.07 m) wide doors
- Ten year limited warranty; U.L. listed

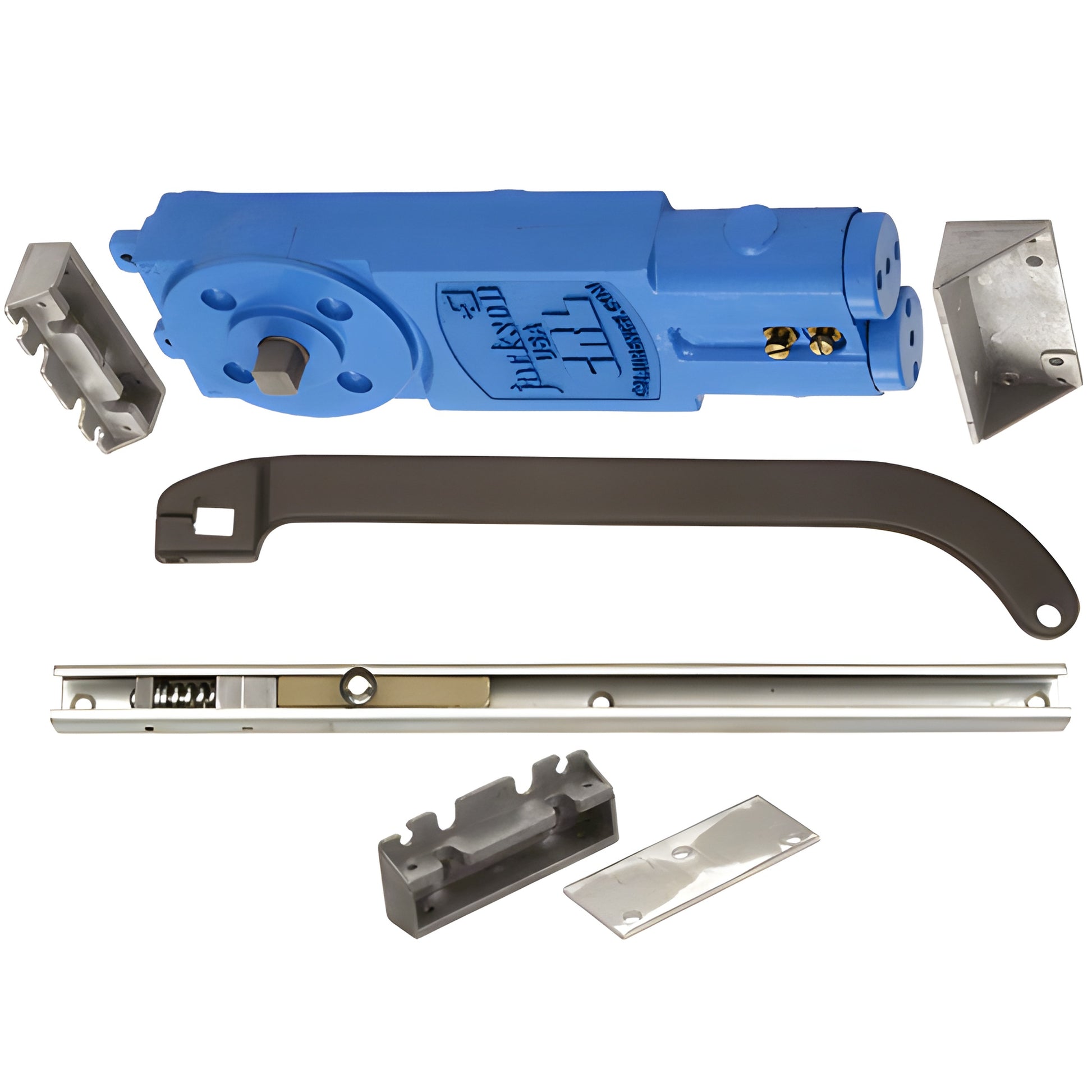

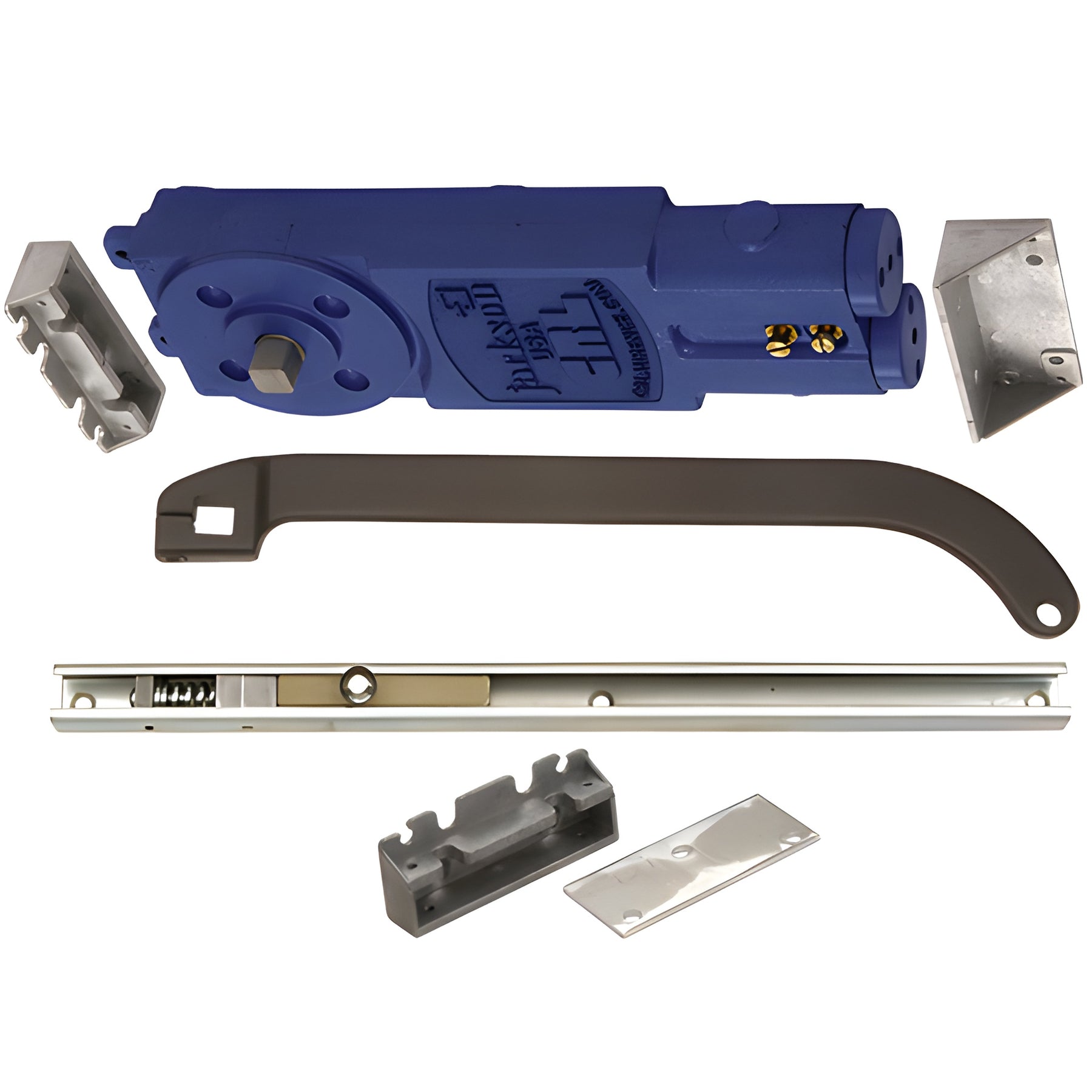

The CRL Jackson® 21201 Series Overhead Concealed Closer with 'U' Offset Slide-Arm Hardware Package (SKU: 21201U31318) is a compact overhead concealed closer designed for commercial and residential glass and aluminum doors with shallow 7/8" top rails. The unit includes Cat. No. 201387 mounting clips, 20942 offset arm package, 20368 slide channel, and complete installation instructions. Features dual independent valves to separately control closing and latching speeds, 105° hold-open, and adjustable spring power (select per door weight and function). Fits standard 1-3/4" x 4" or larger header extrusions.
Key benefits: concealed overhead design for clean aesthetics, U offset slide‑arm for shallow top rails, adjustable spring power for 30"–42" doors, and U.L. listed reliability with a 10-year limited warranty. Order the CRL Jackson 21201 concealed overhead closer (SKU: 21201U31318) today to upgrade door performance and finish—contact your distributor or add to cart now.
