CRL Matte Black European Patch Door Kit w/ Lock for Overhead Closers
Item# PHE2MBL
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Buy More, Save More!
| Product QTY | Discount |
|---|---|
| Buy 3 | 2% Off |
| Buy 5 | 4% Off |
| Buy 10 | 6% Off |
| Buy 15 | 8% Off |
| Buy 20 | 10% Off |
Configuration
Single
Door Type
F Style Glass Door
Finish/Color
Matte Black
Glazing Thickness
3/8 in. or 1/2 in. (10 mm or 12 mm)
Pivot Setback
2-9/16 in. (65 mm)
- Adjustable Top Fitting
- Five Architectural Finishes
- Door Closer Not Included
CRL PHE2 European Patch Door Kits (SKU: PHE2MBL) include the hardware to complete a single frameless glass door installation (overhead door closer and glass sold separately). Designed for tempered glass doors, this European patch door kit features an adjustable top patch fitting (PH21C) that can be fine-tuned after installation and a pivot setback of 2-9/16" (65 mm) for precise alignment. Follow GANA Guidelines for maximum door sizes.

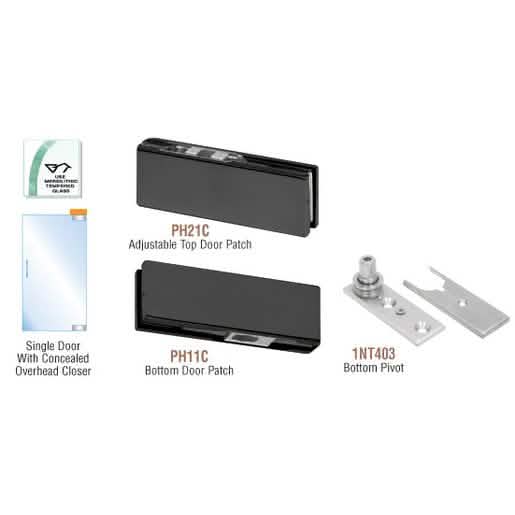

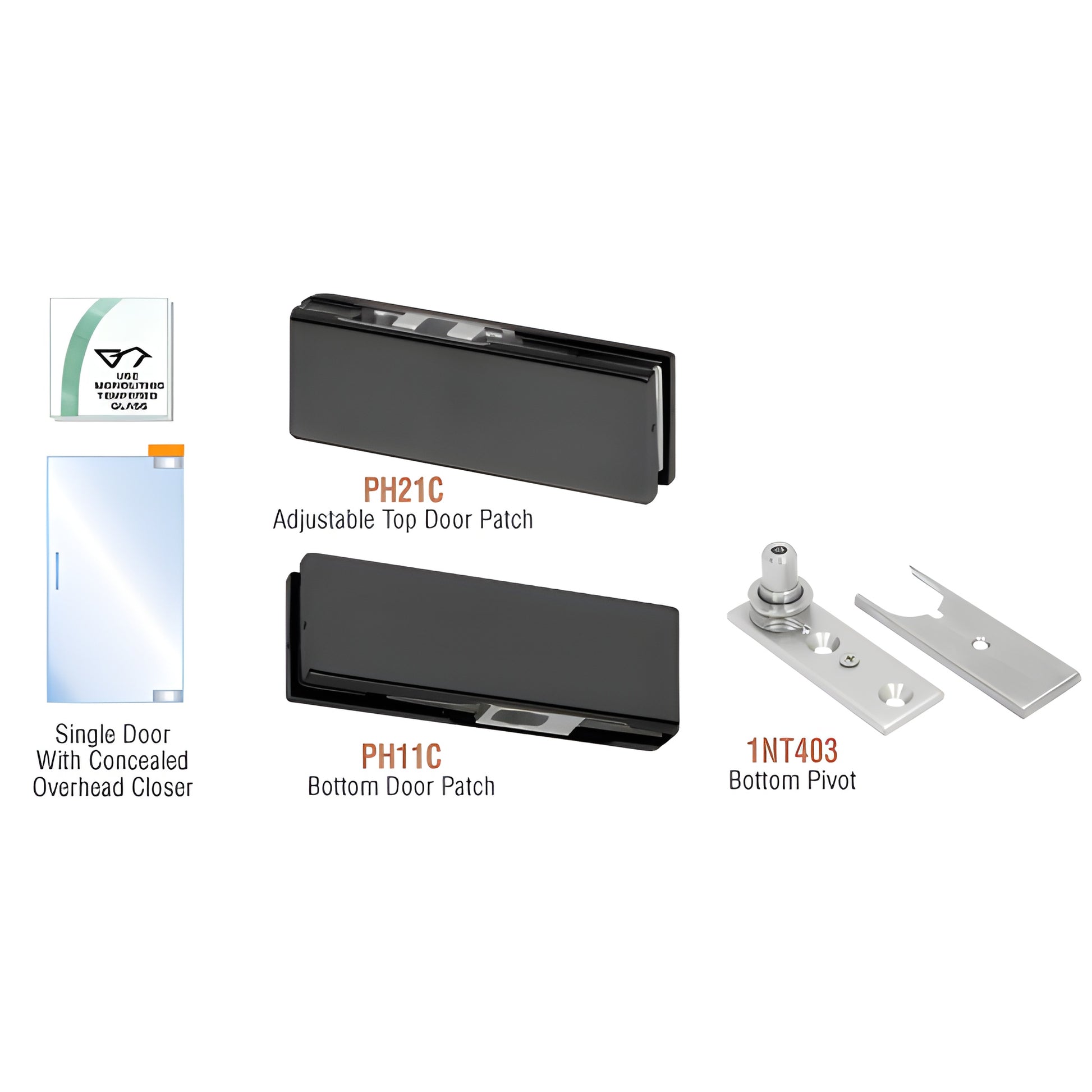

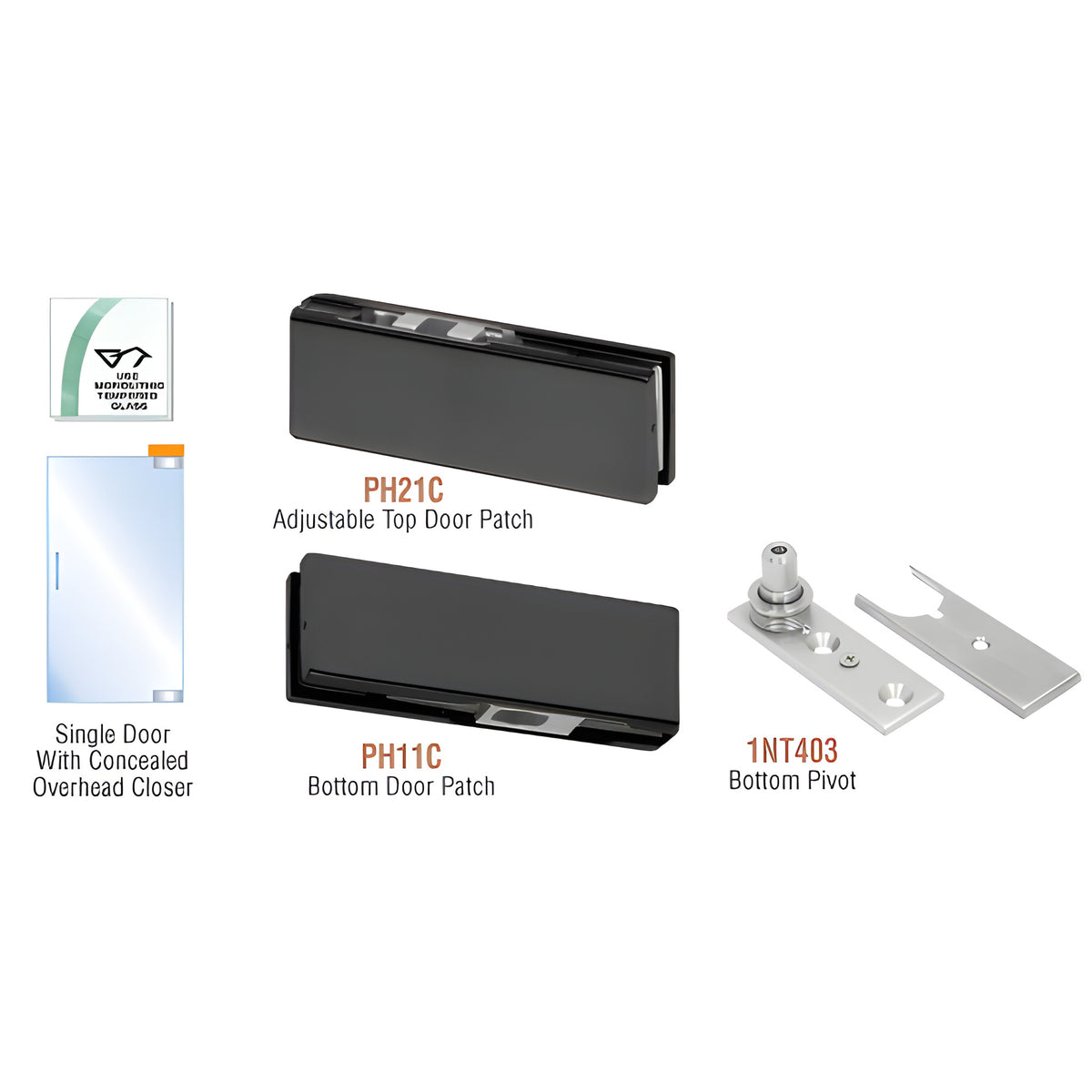

Kit Contains:
- 1 - PH21C Adjustable Top Door Patch
- 1 - PH11C Bottom Door Patch
- 1 - 1NT403 Bottom Pivot
- Gaskets for 3/8" or 1/2" (10 mm or 12 mm) tempered glass (glass must have required holes and notches)
Kits with lock include one EUR205 patch lock; cylinders, thumbturns, and keepers are ordered separately.
Most shipping weights are approximate. If you need an exact weight to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual colors may vary by monitor.
Ideal for frameless glass door installations and commercial glass storefronts requiring an adjustable top patch fitting and architectural finish options. Order the PHE2MBL European patch door kit today to complete your glass door project.
