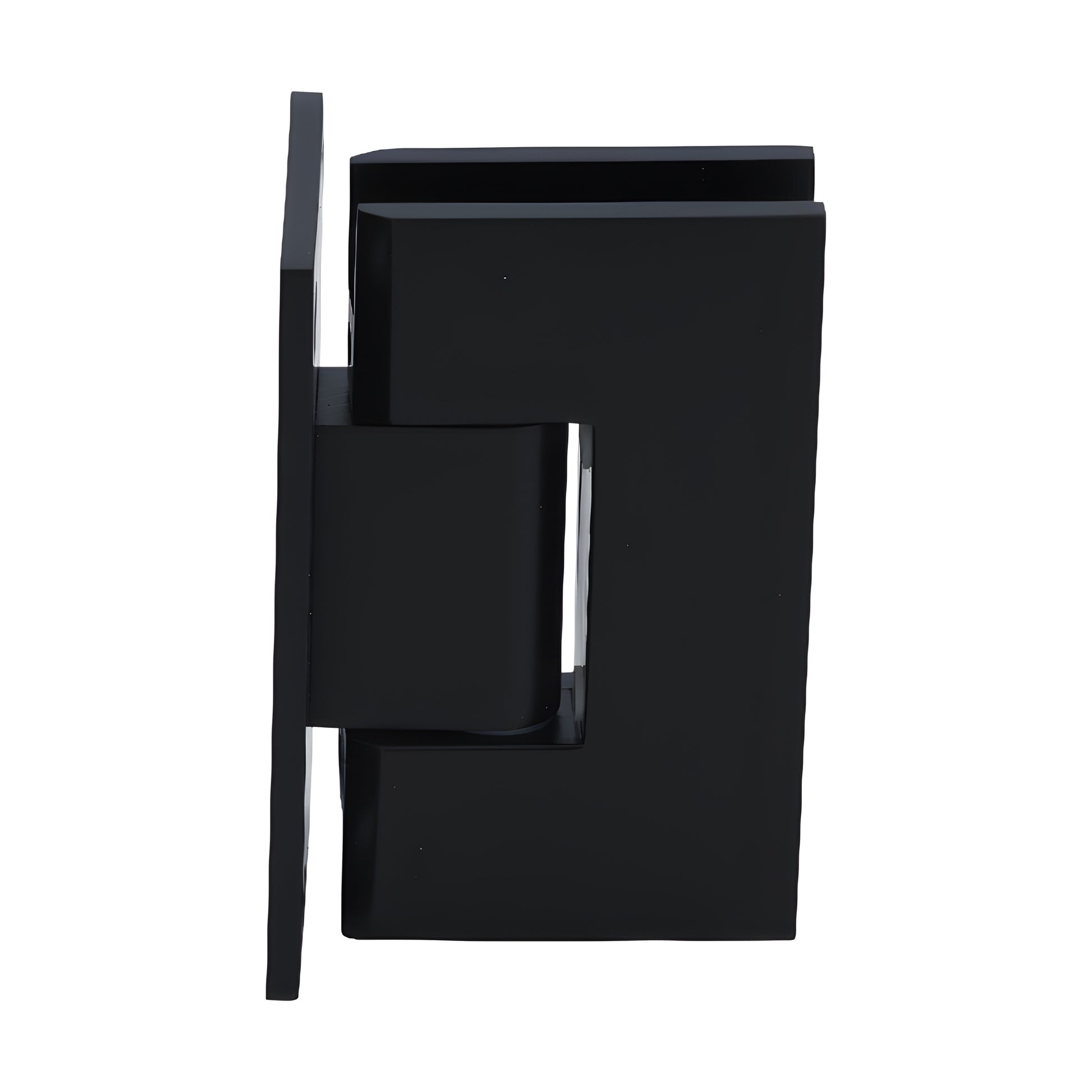

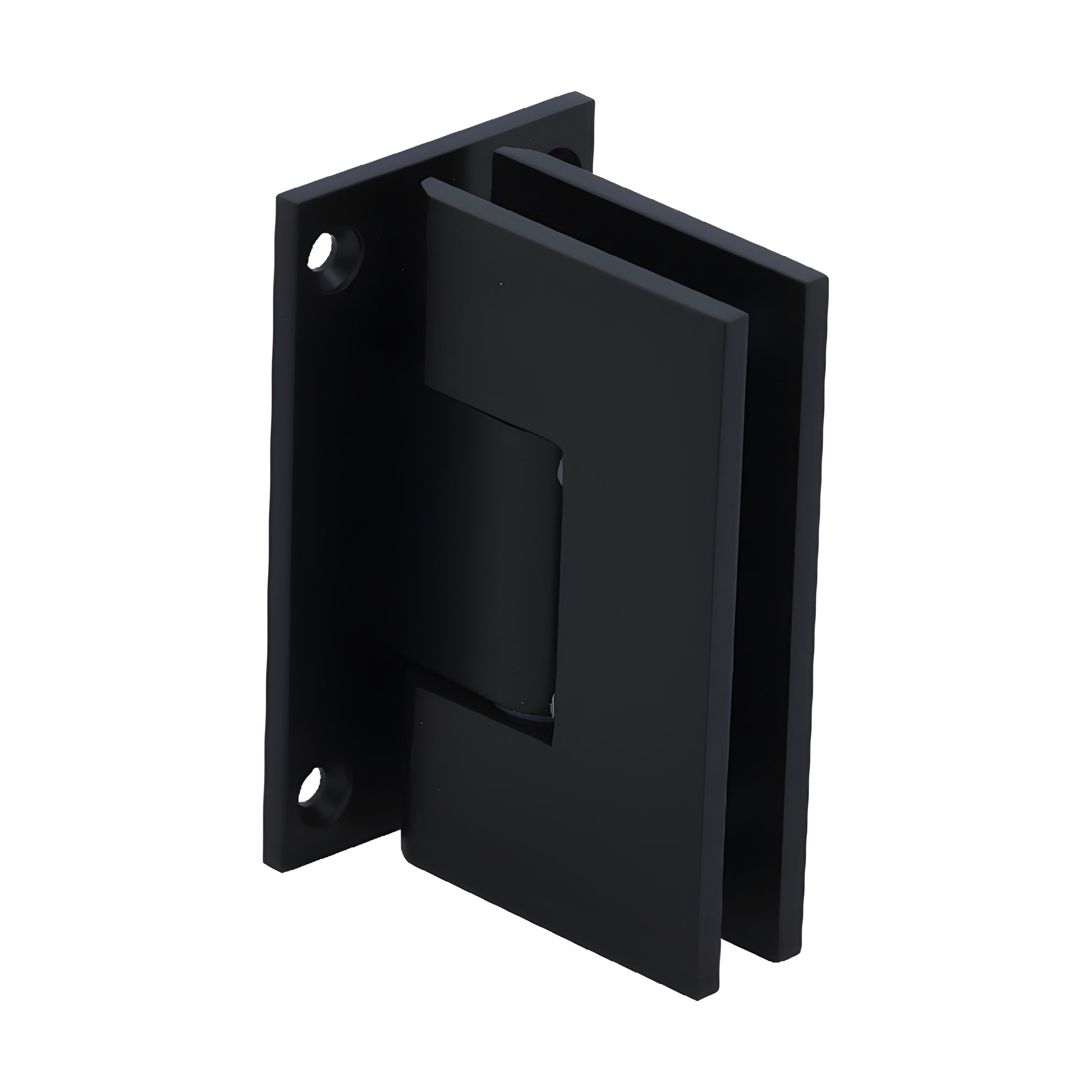

CRL Vienna 537 Matte Black 5° Pre-Set Wall Hinge for Glass Doors

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered glass
• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes; custom finishes on request
• 3 year warranty
• 5° factory pre-set model for tighter closure into shower interior
• Use with monolithic tempered glass

CRL Vienna Hinges (SKU: V1E537MBL) are heavy-duty brass shower door hinges engineered for wider, heavier glass doors that standard hinges cannot support. Designed for 3/8"–1/2" tempered safety glass, the Vienna hinge features two internal steel guide pins that offer template flexibility: leave both pins in place for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability and fit to CRL or compatible rectangular square-corner cut-outs. This dual-pin design is a key differentiator for installers needing adaptable glass-to-wall mounting options.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship set to 90°; pre-set models ship at 85° for a 5° tighter closure into the shower interior. The pin rotates (do not flip) to select the opposite angle—ideal for precise door alignment.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the standard 5° adjustment is insufficient.

PERFORMANCE:
Using two hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 110 lbs (50 kg) with maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" (10–12 mm) glass: supports up to 140 lbs (63 kg) with maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass for corrosion resistance and long service life
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092, which requires door cut-out plus two holes for fixed panel). Use only the included CRL template; cut-outs may not match other brands.
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes and pivot angles available—contact CRL Technical Sales Shower Door Department for specifications and ordering assistance.
