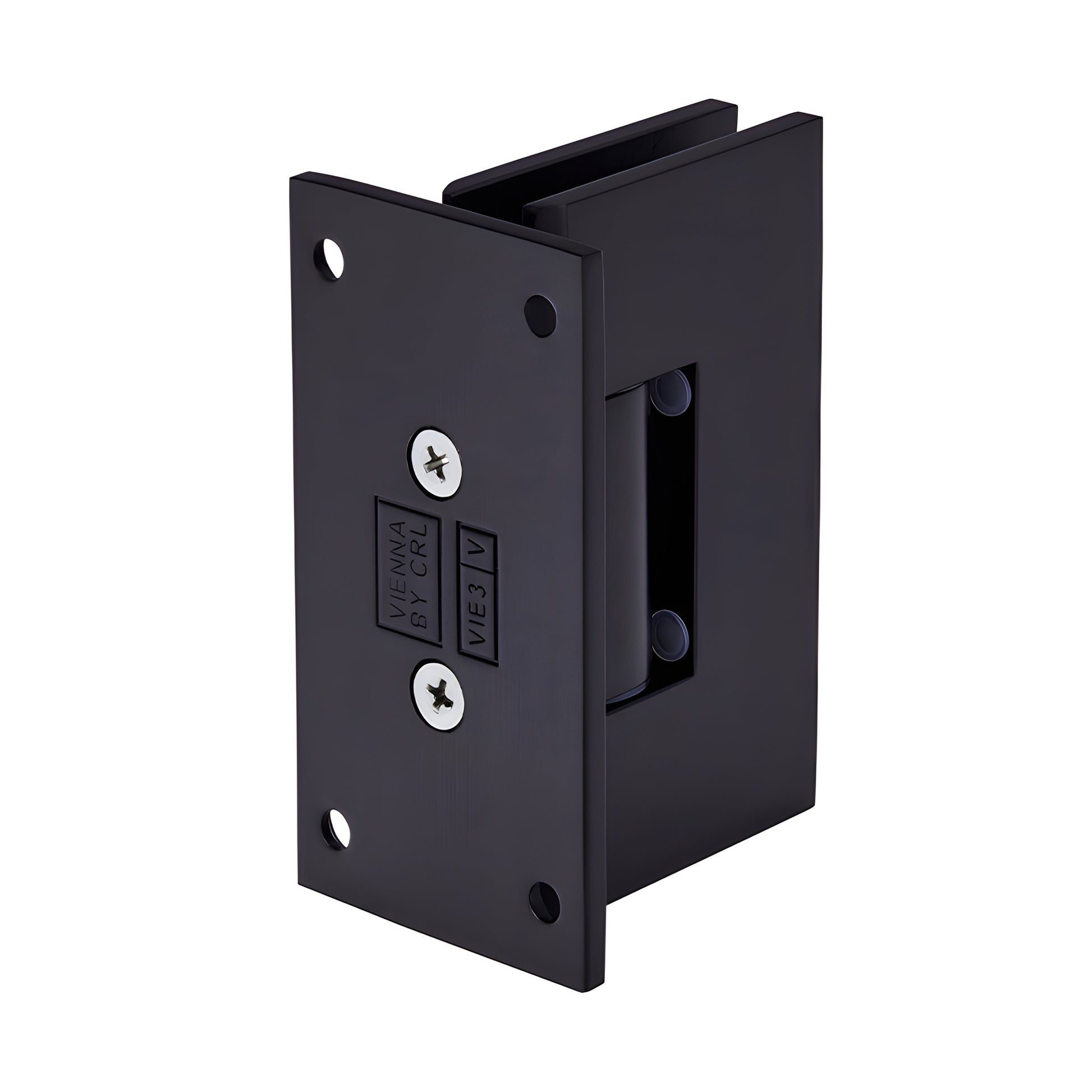

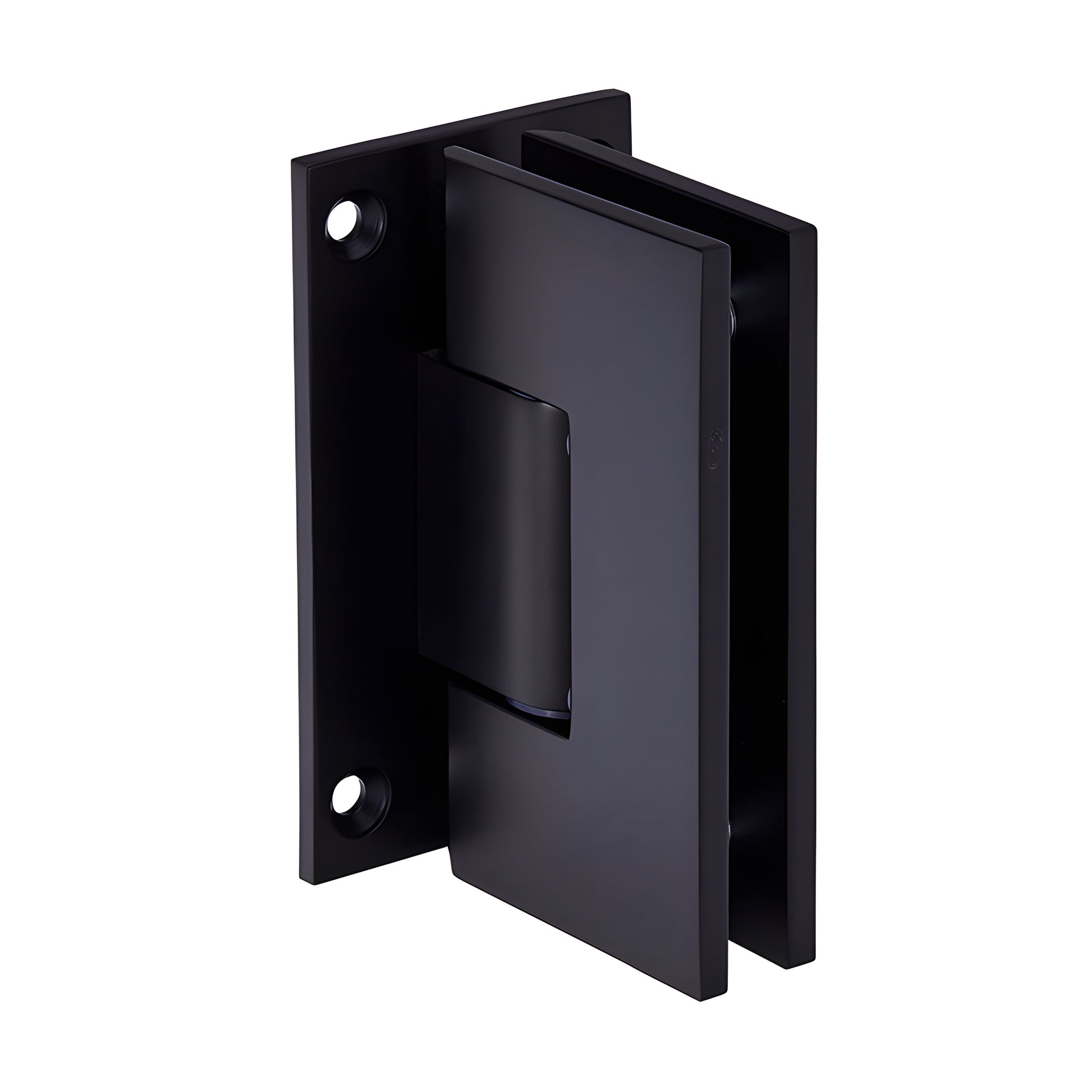

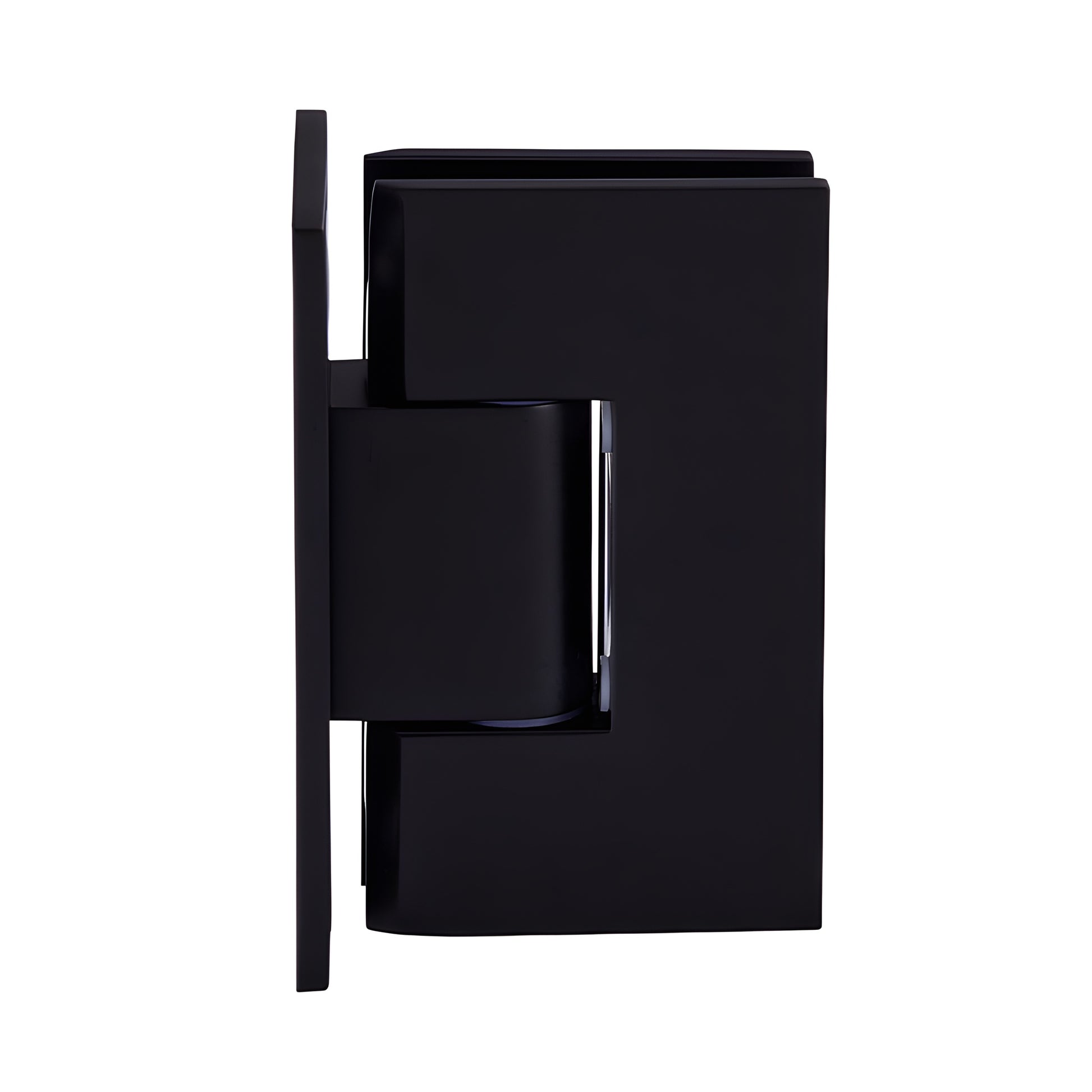

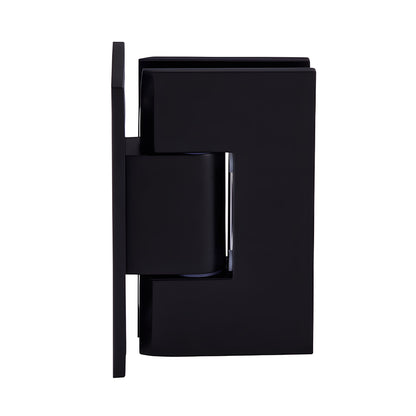

CRL Vienna 537 5° Preset Backplate Wall Hinge - Oil Rubbed Bronze

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-Centering with reversible 5° pivot pin
• Available in several durable finishes
• 3 year warranty
• 5° pre-set model (factory set for tighter 5° closure into shower interior)
• Designed for monolithic tempered safety glass

CRL Vienna Hinges (SKU: V1E5370RB) are heavy-duty shower door hinges engineered for wider, heavier glass doors that conventional hinges cannot reliably support. Dual internal steel pins give two mounting template options: leave both pins for compatibility with CRL "mouse-ears" cut-outs, or remove them for increased adjustability with CRL rectangular (square-corner) cut-outs and, in some cases, competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard units ship with the 90° side activated; pre-set models ship with the 85° side activated for a 5° tighter closure into the shower. Rotate (do not flip) the pin to change the active angle.

CUSTOM PIVOT PINS: Custom pivot pins are available for off-angle installations (specify required angle up to 45°) when the built-in 5° option does not achieve the desired door position.

LOAD CAPACITY & DOOR SIZE:

• Two hinges (3/8"–1/2" glass): supports up to 110 lbs. (50 kg), max door width 36" (914 mm)
• Three hinges (3/8"–1/2" glass): supports up to 140 lbs. (63 kg), max door width 36" (914 mm)

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Cut-out required (except V1E092, which requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request — contact CRL Technical Sales, Shower Door Department for custom solid-brass finishes and lead times.
