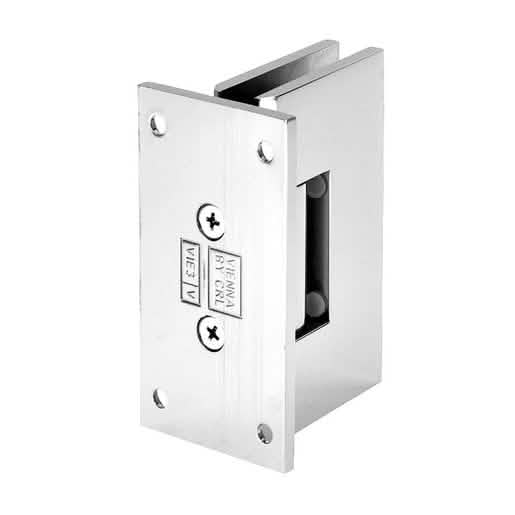

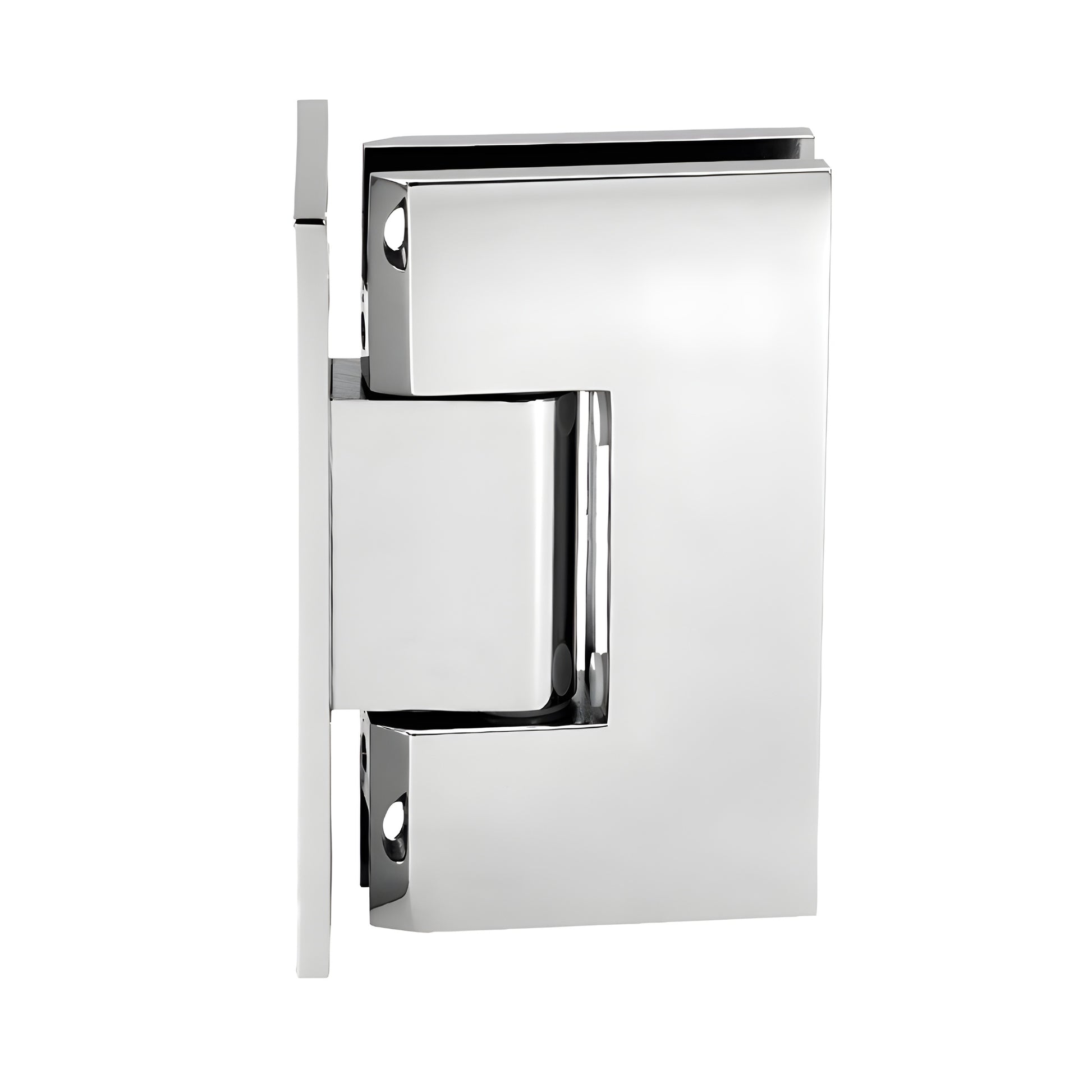

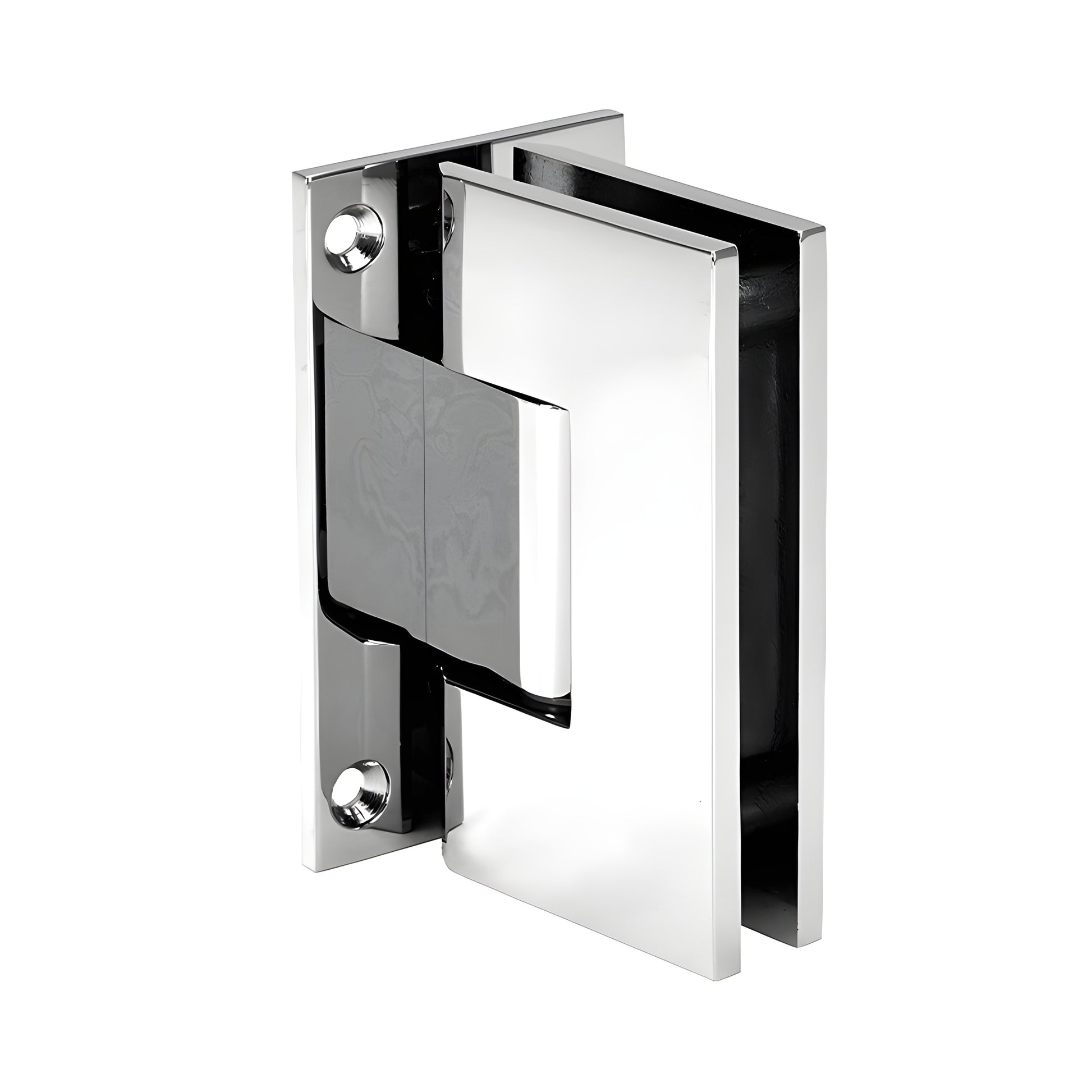

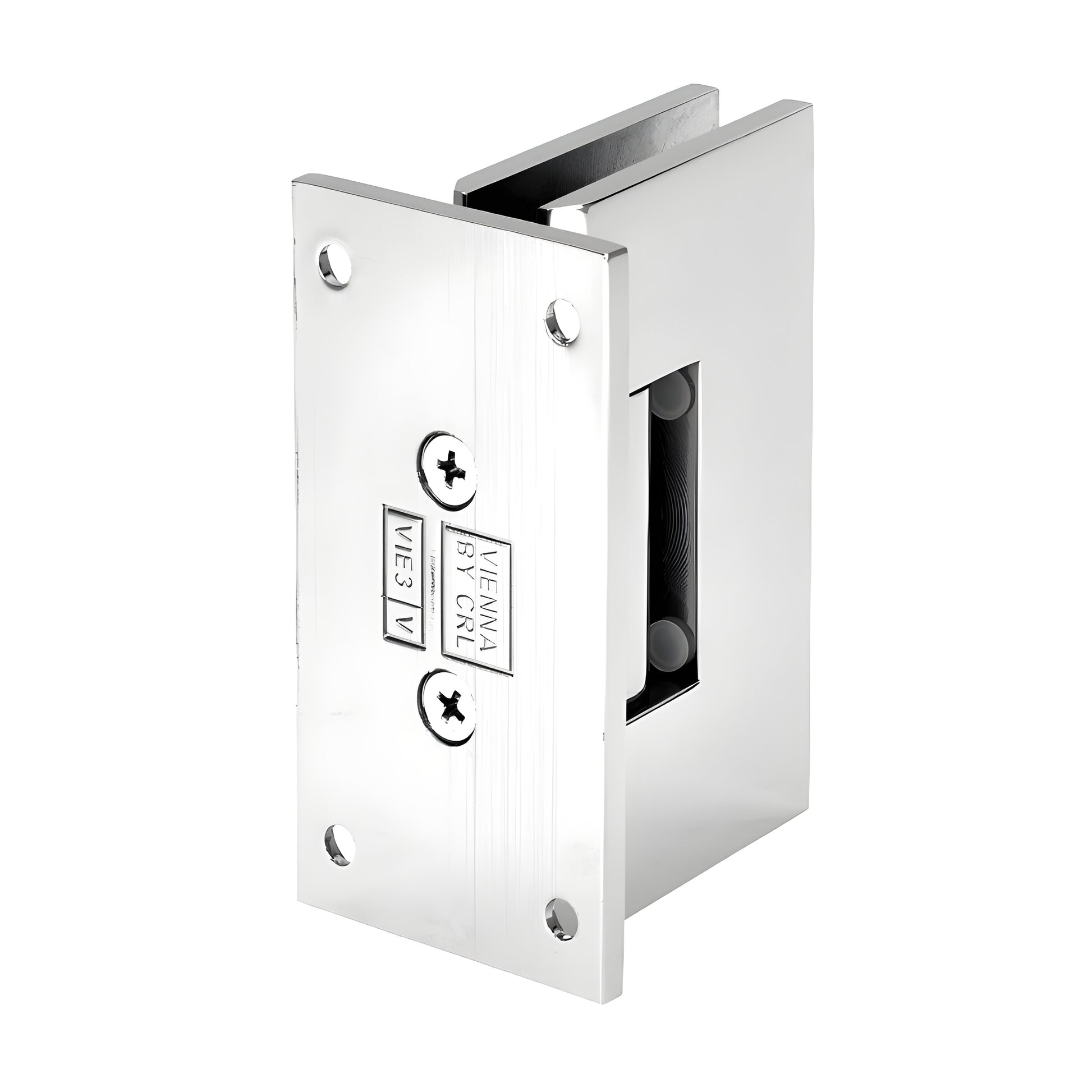

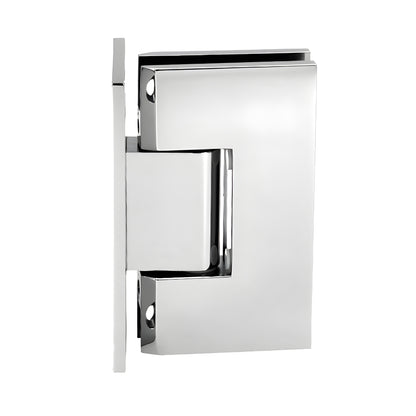

CRL Vienna 537 Polished Chrome 5° Pre-Set Wall-Mount Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) glass
• Self-Centering with reversible 5° pivot pin
• Available in several durable finishes
• 3 Year Warranty
• 5° pre-set model (factory set for tighter closure into shower interior)
• Use monolithic tempered safety glass

CRL Vienna Hinges provide a heavy-duty solution for wider, heavier shower doors when traditional hinges are insufficient. Designed for shower door applications with tempered glass, these solid brass hinges feature two internal steel pins that offer mounting flexibility: leave the pins in place for CRL "mouse-ears" cut-outs or remove them for rectangular, square-corner cut-outs (may fit competitive rectangular cut-outs in some cases).

SKU: V1E537CH

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin with 90° on one side and 85° on the other. Standard hinges ship with the 90° side active. Pre-set models ship with the 85° side active for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to change sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle installations (specify angle up to 45°) when the standard 5° adjustment does not achieve the desired closing position.

CAPACITY: Using two hinges with 3/8"–1/2" (10–12 mm) glass: up to 110 lbs (50 kg) and maximum door width 36" (914 mm). Using three hinges with 3/8"–1/2" (10–12 mm) glass: up to 140 lbs (63 kg) and maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass (heavy-duty shower door hinge)
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Required — except V1E092 (requires cut-out for door plus two holes for fixed panel)
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

Custom finishes available on request. Contact CRL Technical Sales Shower Door Department for specialty finishes or custom pivot pins.
