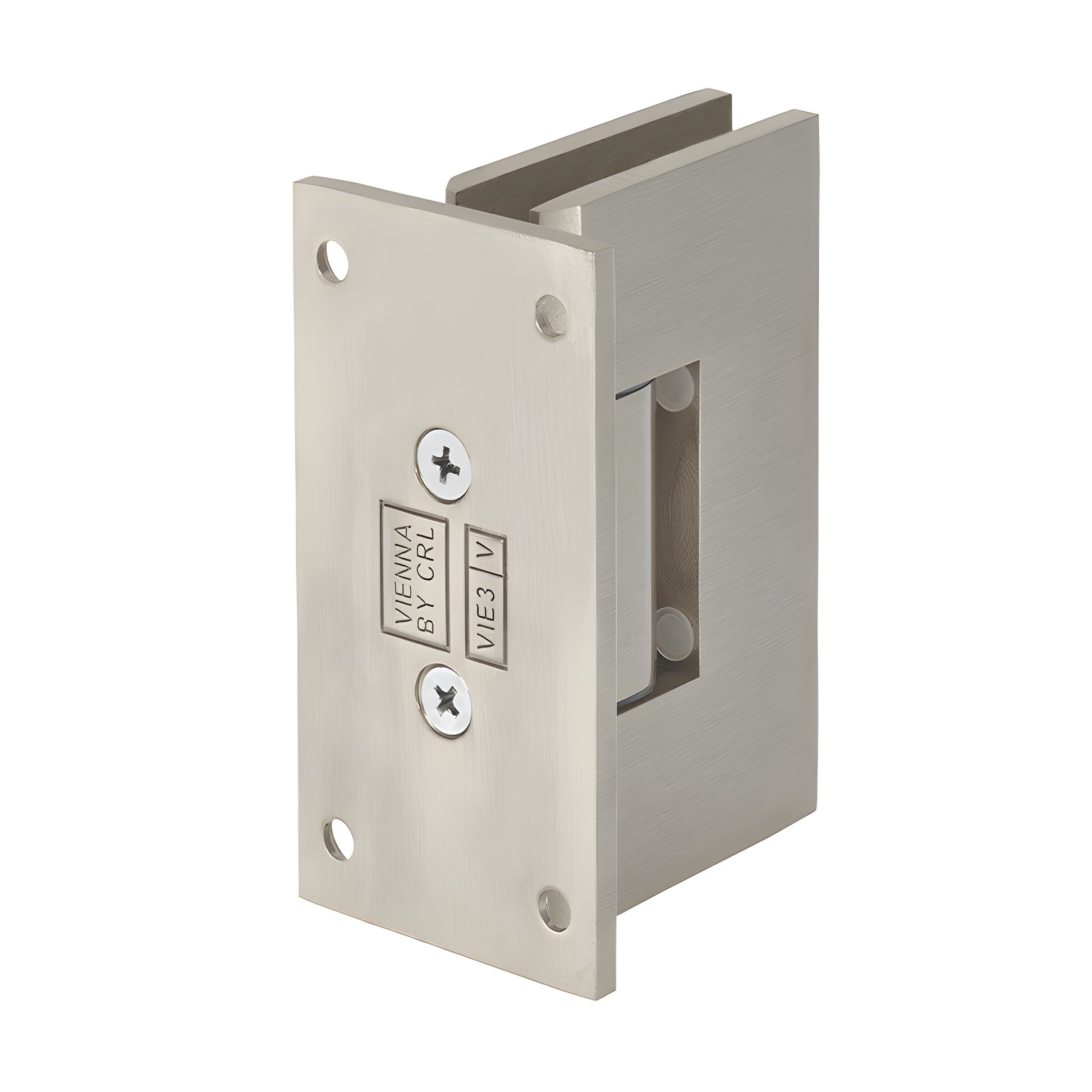

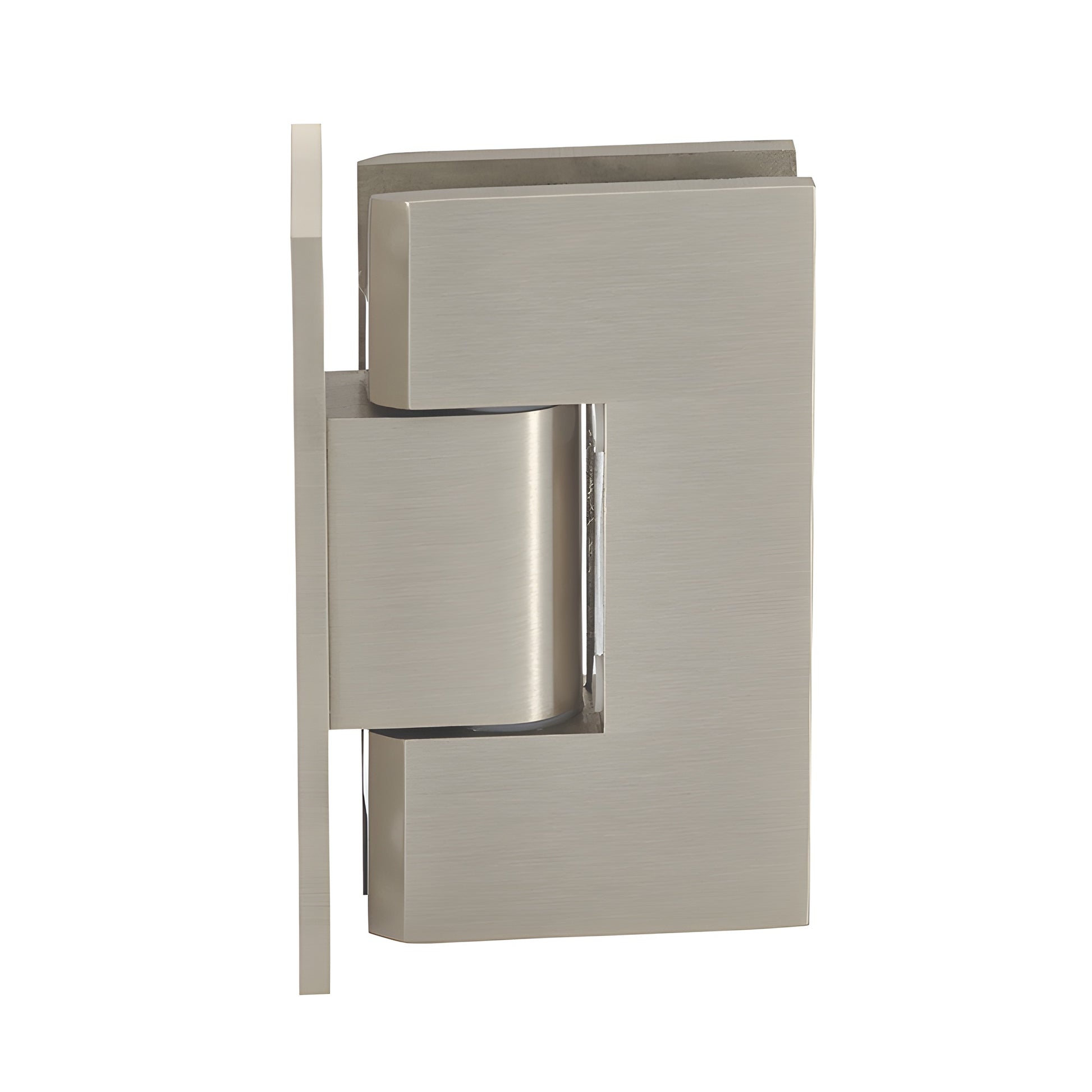

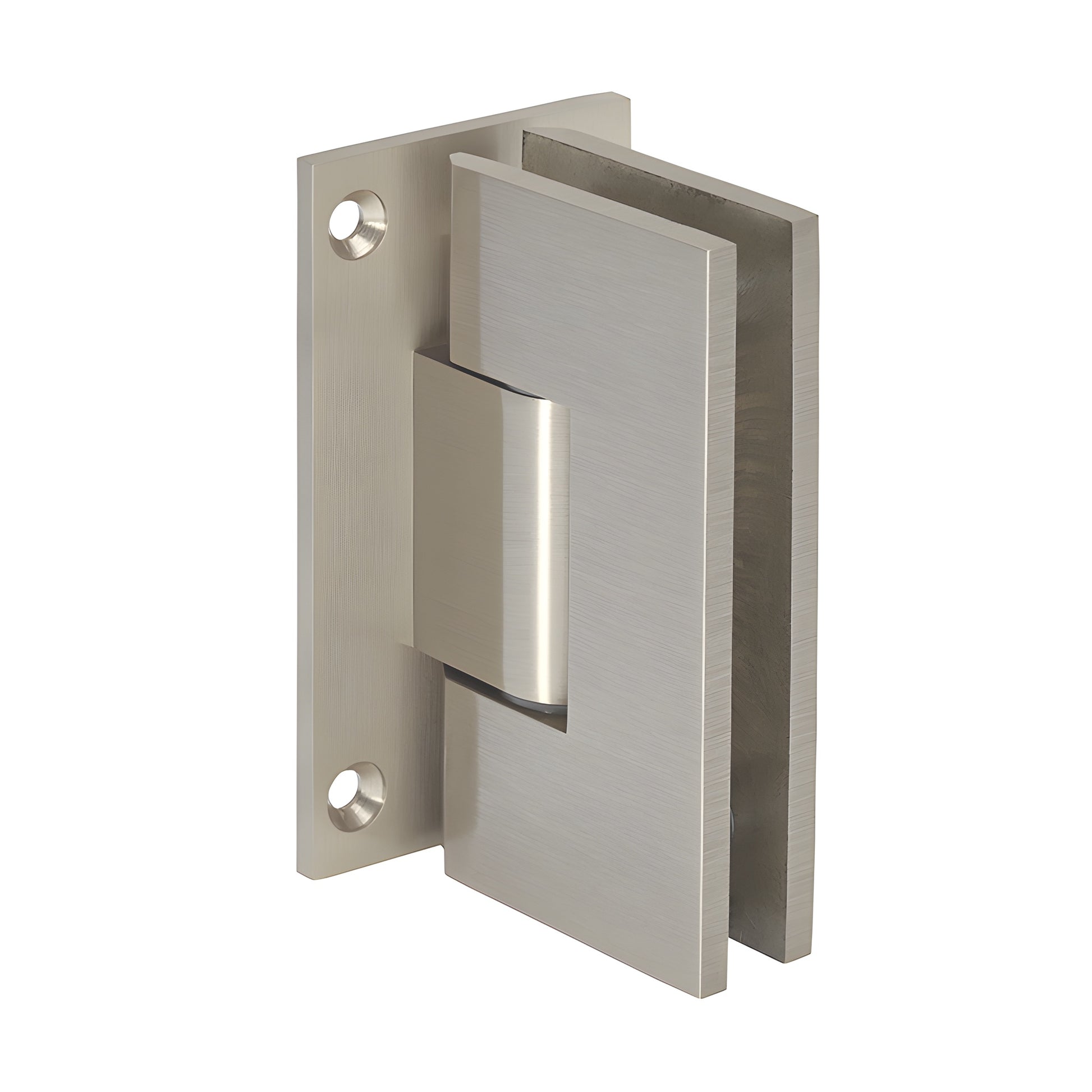

CRL Brushed Nickel Vienna 537 Series 5 Degree Pre-Set Wall Mount Full Back Plate Hinge
CRL Brushed Nickel Vienna 537 Series 5 Degree Pre-Set Wall Mount Full Back Plate Hinge
Regular price
$96.46 CAD
Regular price
Sale price
$96.46 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# V1E537BN
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
Warning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1
Shipping Weight: 2.0 Pounds
Shipping Limitations: None
This Product Ships Free!
Compliance and RestrictionsWarning: Reproductive Harm
www.p65warnings.ca.gov
Minimum Order Quantity: 1
Unit of Measure: Pack of 1




Description
5 Degree Pre-Set Yes | No |
Back | Plate Full |
Design | Style Squared |
Enclosure | Type Corner, Niche, Bathtub, Tailor Made Solutions |
Finish/Color | Brushed Nickel |
Glazing Thickness | 1/2 in. (12 mm) |
Height 3-15/16 in. | (100 mm) |
Material | Brass |
Maximum Clamping Screw Torque 60 lbf.in | (677.9 cN.m) |
Maximum Door Weight - 2 Hinges 110 lbs. | (49.9 kg) |
Maximum Door Weight - 3 Hinges 140 lbs. | (63.5 kg) |
Maximum Door Width 36 in. | (914 mm) |
Mounting | Type Wall Mount |
Opening Style Swing | (side) |
Positive | Close No |
Self-Centering Yes | Vienna |
Width 2-1/4 in. | (57 mm) |
Overview
The CRL Vienna Hinges are ideal for supporting wider and heavier doors with glass thickness ranging from 3/8" to 1/2" (10 to 12 mm).
Featuring a reversible 5-degree pivot pin, these self-centering hinges are available in multiple stunning finishes and come with a 3-year warranty.
Designed for monolithic tempered glass, they offer enhanced adjustability by allowing the removal or inclusion of steel pins, catering to both "mouse-ears" and rectangular cut-outs.
With the capability to hold up to 110 lbs with two hinges or 140 lbs with three hinges, the Vienna Hinges ensure a secure fit for doors up to 36" wide.
Custom finishes and pivot pins for non-standard installations are available upon request.
Featuring a reversible 5-degree pivot pin, these self-centering hinges are available in multiple stunning finishes and come with a 3-year warranty.
Designed for monolithic tempered glass, they offer enhanced adjustability by allowing the removal or inclusion of steel pins, catering to both "mouse-ears" and rectangular cut-outs.
With the capability to hold up to 110 lbs with two hinges or 140 lbs with three hinges, the Vienna Hinges ensure a secure fit for doors up to 36" wide.
Custom finishes and pivot pins for non-standard installations are available upon request.
