CRL Concealed Overhead Door Closer 105Β° Hold-Open Medium Duty S-Side
CRL Concealed Overhead Door Closer 105Β° Hold-Open Medium Duty S-Side
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8170S
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Dual Purpose Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
105Β°
Includes
CRL7170, CRL8010FS, CRL8010S, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load S
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8770S
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (13 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

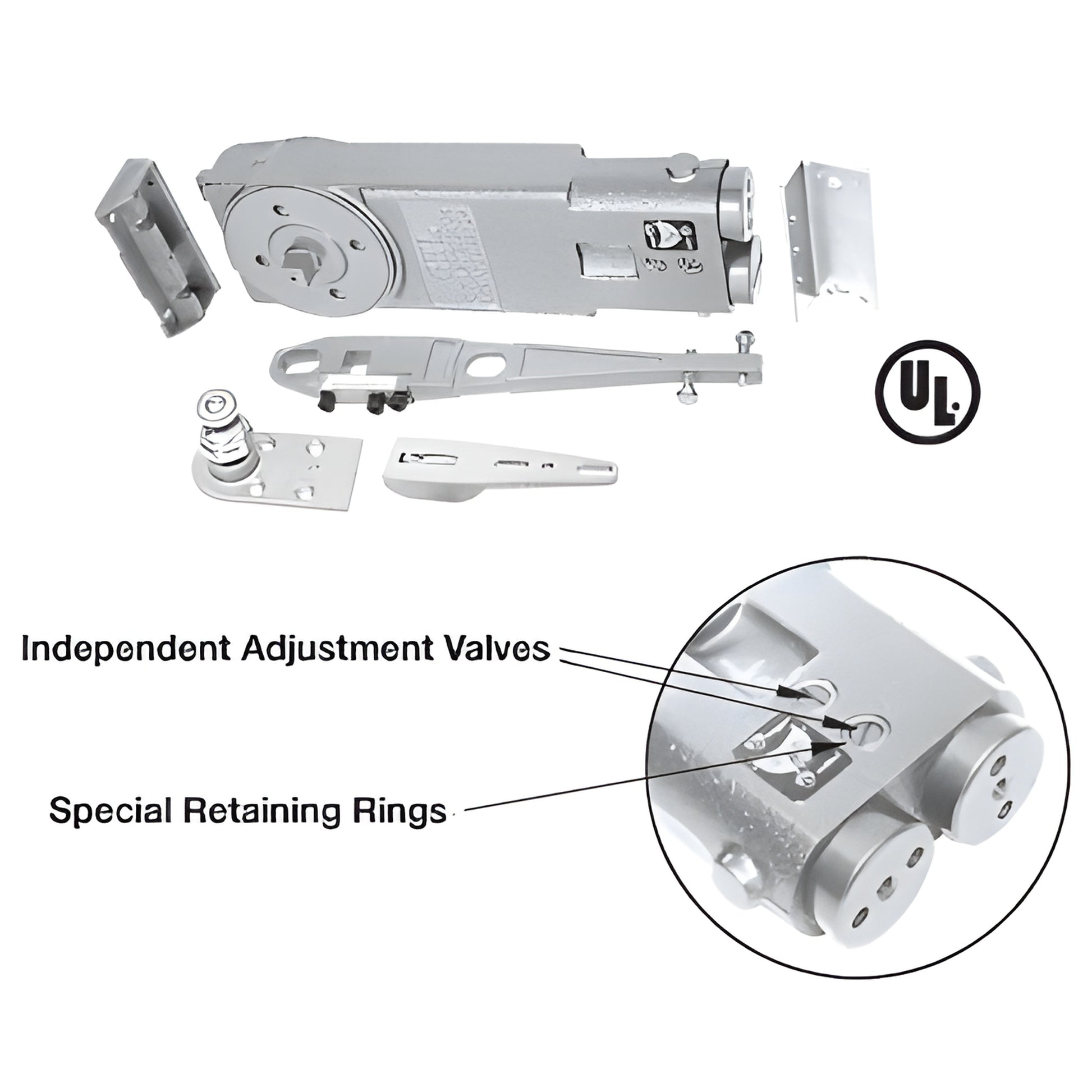

These CRL Overhead Door Closer Kits (SKU: CRL8170S) include a medium spring-size door closer, mounting clips, a Type S side-load arm, and your choice of a DP-adjustable dual-purpose bottom pivot set or GE bottom pivot set. The closer features independent dual-action valves to separately control closing and latching speeds. Available in both 90Β° and 105Β° hold-open or no hold-open models. Closer bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, and overhead concealed door closer accessories are available to suit storefront and commercial aluminum doors.
Independent Adjustment Valves
Non-critical valve control lets you adjust closing speed and latching speed independently for precise door performance.
Special Retaining Rings
Retaining rings prevent the adjustment valve screws from being backed completely out of the door closer body, improving serviceability.
Note: An auxiliary floor or overhead door stop is recommended to prevent damage from over-extension of the maximum allowable door swing.
Product Warning:
This closer is not to be used for doors weighing in excess of 200 lbs.
Why choose CRL8170S? Durable overhead door closer kit with independent valves, retaining rings for reliability, UL listing, and a 5-year limited warrantyβdesigned for commercial aluminum and storefront doors with 1/2" top rails.
