CRL Medium Duty 105º Hold Open Overhead Concealed Closer with "GE" Side-Load Hardware Package

Buy More, Save More!

Product quantity	Discount
Buy 3	2% off
Buy 5	4% off
Buy 10	6% off
Buy 15	8% off
Buy 20	10% off

Overview

SKU	CRL8170GE
Pack Size	6
Body Height	1-11/16
Body Length	11-5/8
Body Width	3-11/16
Bottom Door Rail Depth	1-1/2
Bottom Pivot Type	Threshold Mount Pivot
Closer Type	Overhead Concealed
Handing	Double Acting
Hold Open	105°
Includes	CRL7170, CRL8010FS, CRL8010S, CRL8010GE
Material	Aluminum
Maximum Door Weight	200
Package Type	Side Load GE
Recommended Door Type	Aluminum, Hollow Metal
Replacement Parts	CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar	CRL8770S
Spindle	1/2
Spring Size	Medium
Top Rail Depth	1/2
Type	Center Hung
UL Listed	Yes

Description

Product Details

GE Center-Hung, Side-Load Hardware Package for Doors with 1/2" (12 mm) Deep Top Rails
Suitable for Doors from 30" to 42" Wide
U.L. Listed With a Five Year Limited Warranty

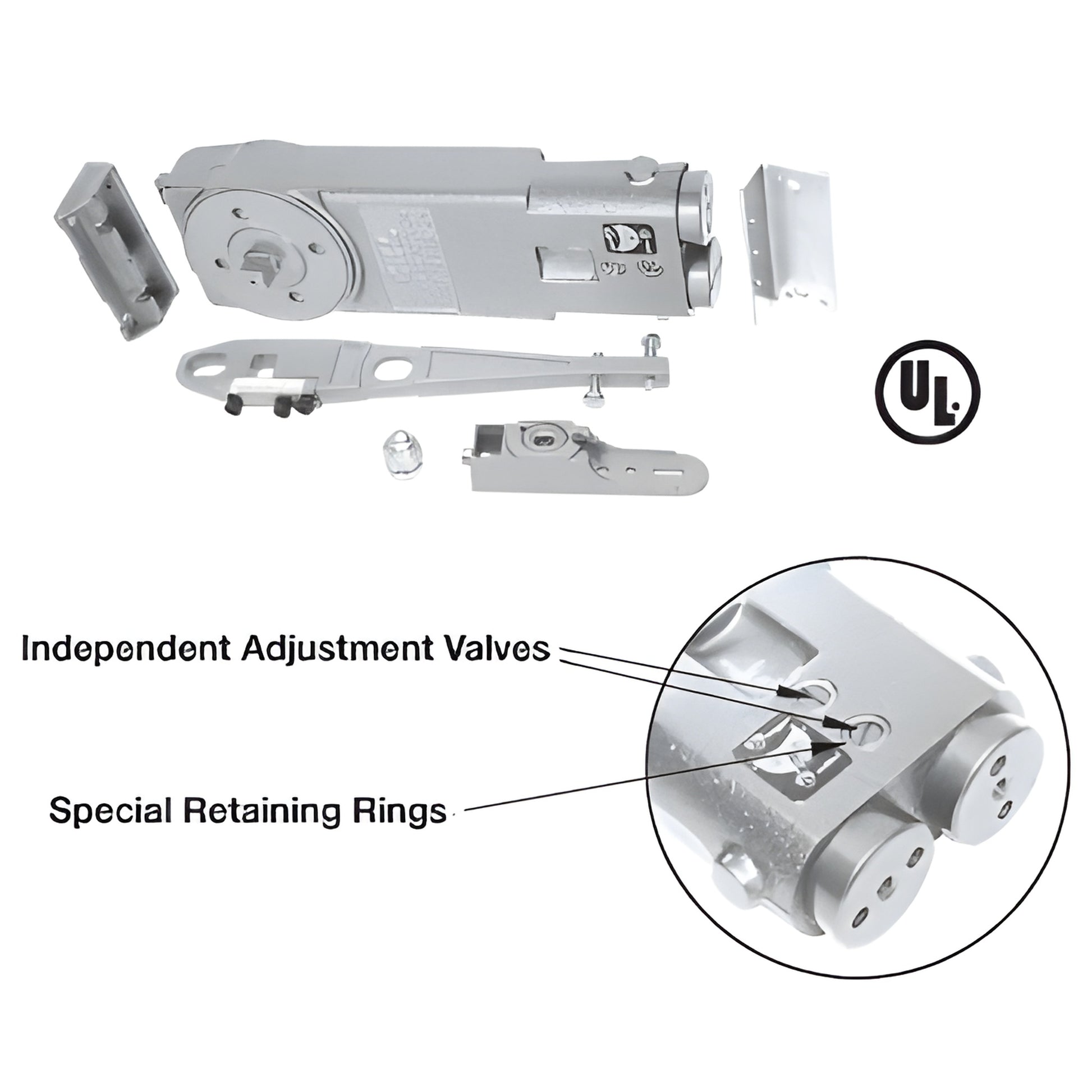

The CRL GE Overhead Closer Package consists of a Medium Duty Door Closer suitable for doors from 30" to 42" (762 mm to 1.07 m) wide. The Closer is packaged complete with CRL8010FS Mounting Clips, CRL8010S "S" Side Load Arm, CRL8010GE "GE" Adjustable Threshold Mount Bottom Pivot Set and complete installation instructions. The Closer has dual independent valves for closing operation (one valve for closing, one valve for latching). 90º and 105º Hold Open and No Hold Open models are available. Closers fit into standard 1-3/4" x 4" (44.5 x 102 mm) (or larger) header extrusions.
