CRL Med Duty 90Β° Hold-Open Concealed Overhead Closer GE Side-Load Kit
CRL Med Duty 90Β° Hold-Open Concealed Overhead Closer GE Side-Load Kit
Regular price
$198.80 CAD
Regular price
Sale price
$198.80 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8160GE
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1-1/2
Bottom Pivot Type
Threshold Mount Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Hold Open
90Β°
Includes
CRL7160, CRL8010FS, CRL8010S, CRL8010GE
Material
Aluminum
Maximum Door Weight
200
Package Type
Side Load GE
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, CRL8010SCP, SLB3, SLS1
Similar
CRL8760S
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1/2
Type
Center Hung
UL Listed
Yes
Overview
- For doors with 1/2" (12.7 mm) top rail depth
- Adjustable side-load bottom pivot set for threshold mounting
- Includes all necessary parts
- 5 Year Limited Warranty
- UL Listed

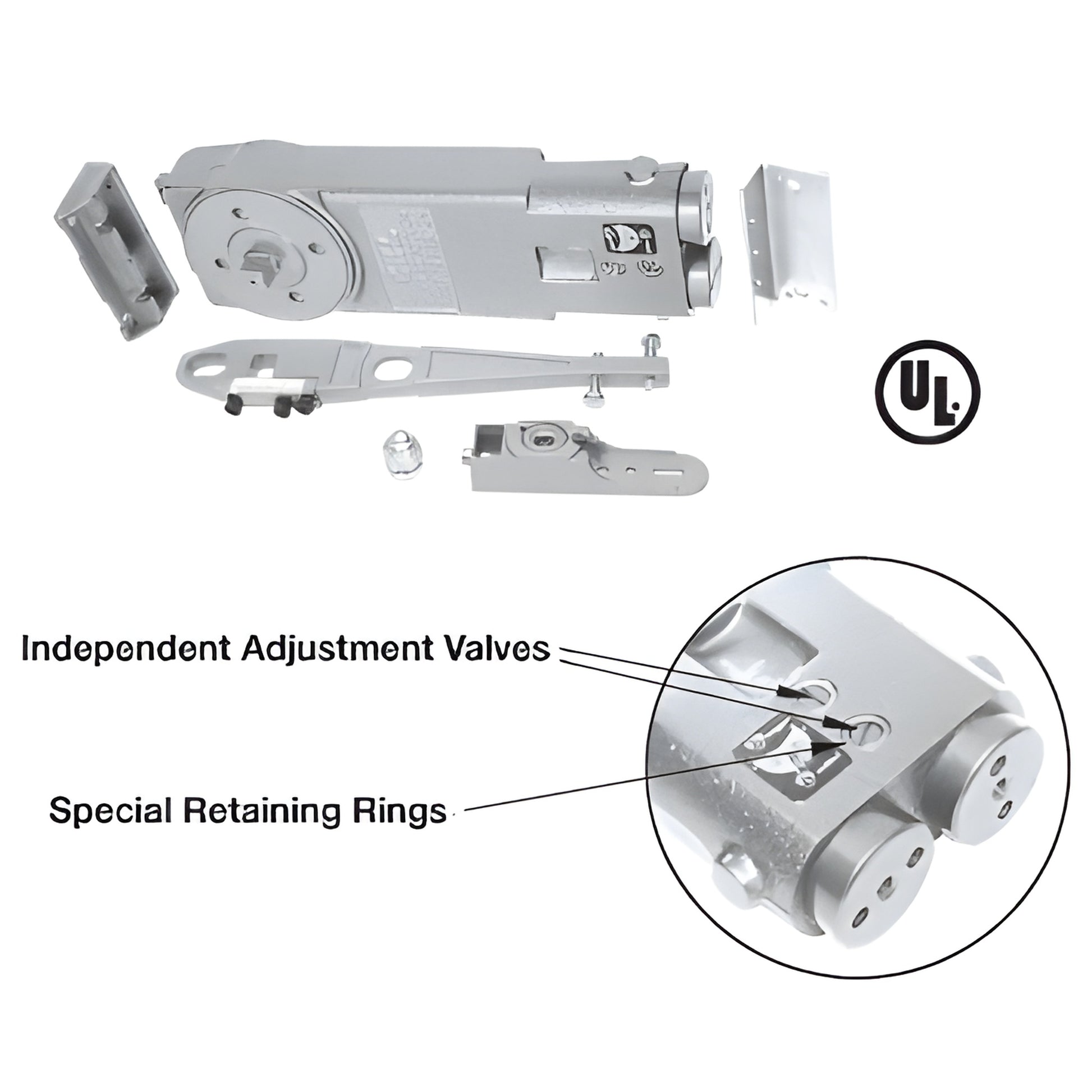

These CRL Overhead Door Closer Kits (SKU: CRL8160GE) include a medium spring-size door closer, mounting clips, Type "S" side-load arm, and your choice of a "DP" adjustable dual-purpose bottom pivot set or "GE" bottom pivot set. The closer features independent, dual-action valves for precise control of closing and latching speeds. Available in both 90Β° and 105Β° hold-open and no-hold-open models. Closer bodies fit into standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Additional spring sizes, hardware options, and concealed overhead accessories are available.
Independent Adjustment Valves
Non-critical valve control lets you adjust closing speed and latching speed independently for consistent door performance.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from backing out of the closer body, improving serviceability and safety.
Note: Use an auxiliary floor or overhead door stop to prevent damage from over-extension of the maximum allowable door swing.
Product Warning:
This closer is not to be used for doors weighing in excess of 200 lbs.
Key long-tail keywords: CRL overhead door closer kit for 1/2" top rail, adjustable side-load threshold pivot for commercial doors, UL listed door closer with independent valves.
Order CRL8160GE now to get the adjustable threshold-mounted pivot and reliable overhead door closer for commercial applications.
