CRL Medium-Duty Overhead Concealed Door Closer 90Β° No-Hold-Open (A End-Load)
CRL Medium-Duty Overhead Concealed Door Closer 90Β° No-Hold-Open (A End-Load)
Regular price
$194.55 CAD
Regular price
Sale price
$194.55 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8162A
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Arm Type
End Load
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Bottom Door Rail Depth
1
Bottom Pivot Type
Floor Mount Pivot
Case Quantity
6
Closer Type
Overhead Concealed
Handing
Double Acting
Includes
CRL7162, CRL9010FS, CRL8010A, CRL8010DP
Material
Aluminum
Maximum Door Weight
200
No Hold Open
90Β°
Package Type
End Load A
Recommended Door Type
Aluminum, Hollow Metal
Replacement Parts
CRL8010CPAL, CRL8010CPDU, HMC035, DCH4SAS, DCH4DUS, ELB2, ELS1
Similar
CRL8762A
Spindle
1/2
Spring Size
Medium
Top Rail Depth
1
Type
Center Hung
UL Listed
Yes
Overview
- Center-hung end-load hardware package for doors with 1" deep top rails
- For doors with 1" (25 mm) top rail depth
- Adjustable dual-purpose bottom pivot set for floor or threshold mounting
- U.L. listed with a five year limited warranty

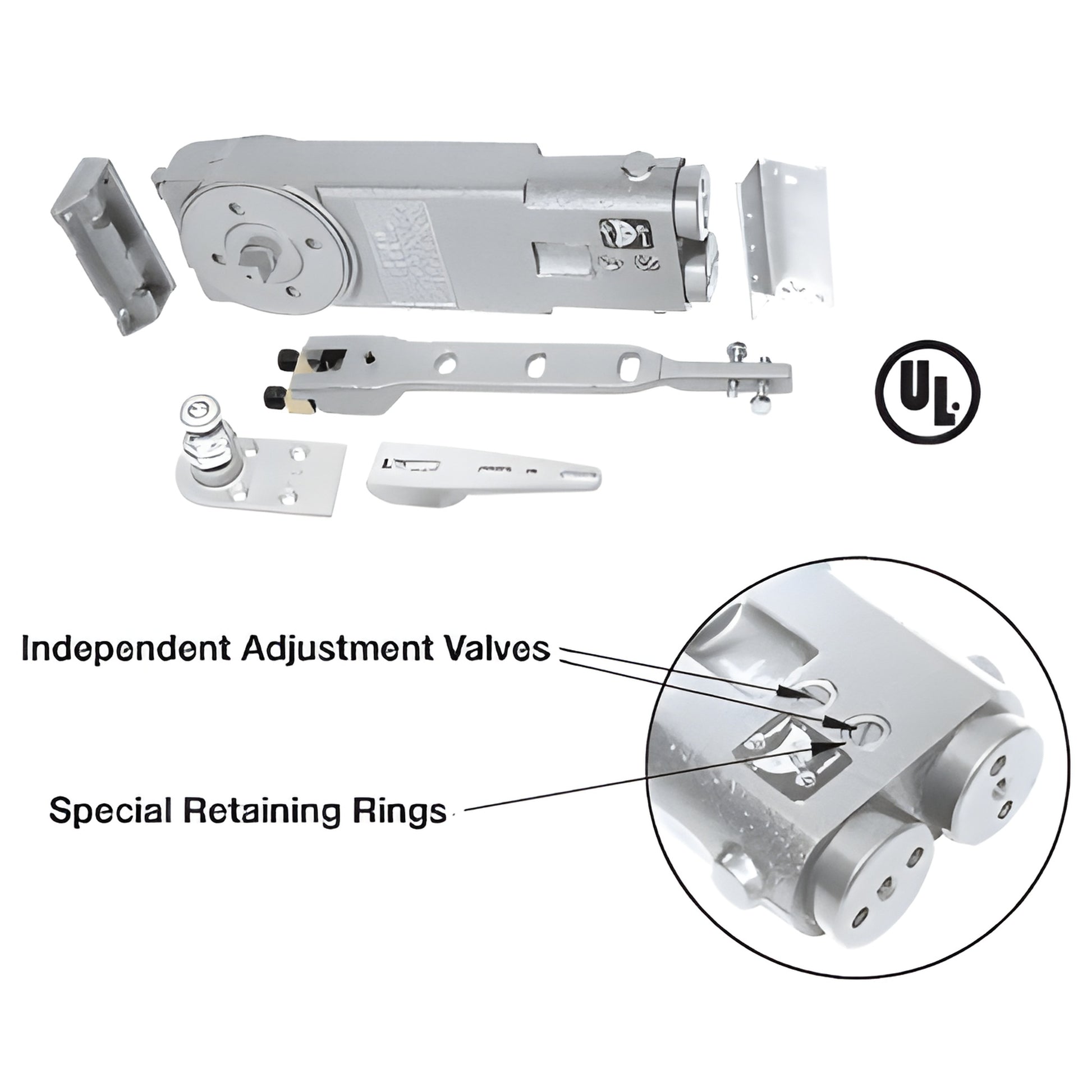

These CRL Overhead Door Closer Kits (SKU: CRL8162A) include a medium spring-size door closer, mounting clips, Type "A" end-load arm, and a "DP" adjustable dual-purpose bottom pivot set. The closer body fits standard 1-3/4" x 4" (44 x 102 mm) or larger extrusions. Available in both 90Β° and 105Β° hold-open or no hold-open configurations, the unit is ideal for commercial and storefront doors requiring a center-hung, end-load solution for 1" top rails.
Independent Adjustment Valves
Non-critical valves independently control closing speed and latching speed for precise door operation and compliant closing performance.
Special Retaining Rings
Retaining rings prevent adjustment valve screws from being fully withdrawn from the door closer body, improving durability and serviceability.
Note: Use an auxiliary floor or overhead door stop to prevent damage from exceeding the maximum allowable door swing.
Product Warning:
Not for use on doors weighing more than 200 lbs.
Order CRL8162A now for a reliable center-hung, end-load door closer solution for 1" top rail applications.
